PRODUCT

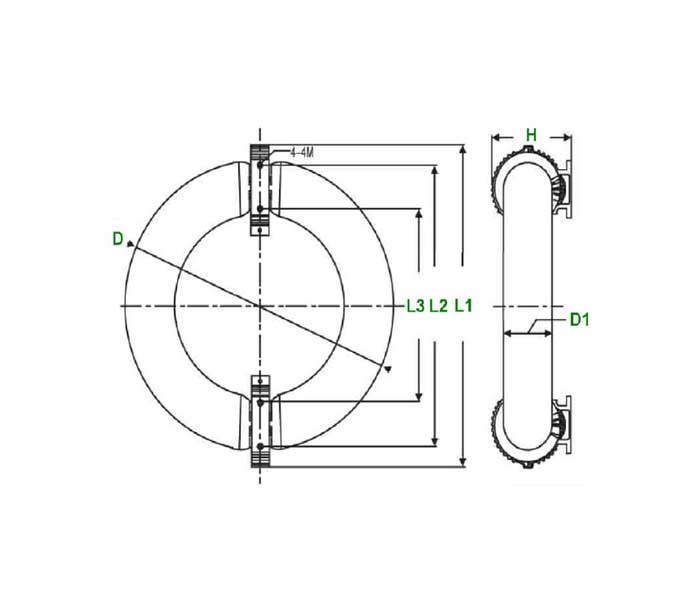

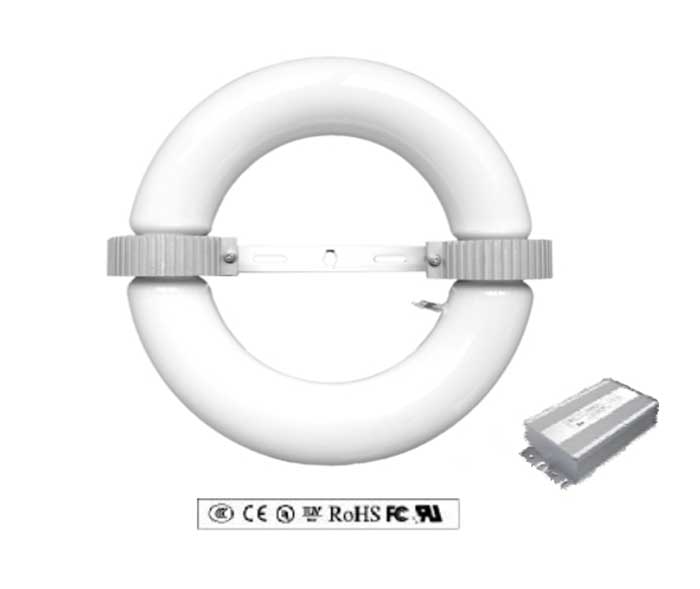

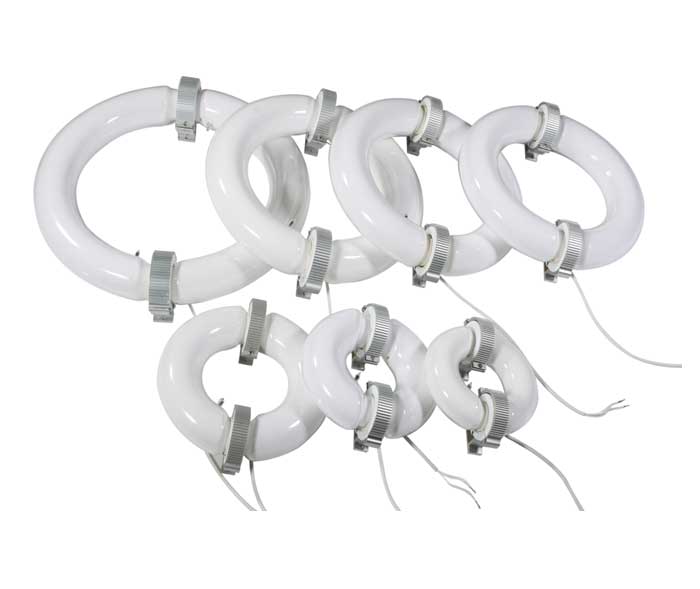

SMGBL® Induction Circular lamp and ballast
Delivering Efficient Energy
Description
Model:Induction circular lamp
Light Source:40 ～ 300W circular tube
Color Temp: 2700K ~ 6500K
Lumen Efficiency: 80-85 lm/W
Lifespan ≥ 100, 000 hrs
Warranty: 5 yrs
Lumen Maintenance: Above 80% after 80,000 hrs
Certification: ETL, SAA, CCC, FCC, CE, CB, C-TICK etc
Package Size: Depend on the watt
Specification
| Watt (W) | Power Efficiency (Im/W) | Initial Lumen (Im) | Effective Flux (Plm) | CRI (Ra) | Power Factor (PF) | Working Temperature (℉/℃) |
| 40 | 75 | 3,000 | 4500-5000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 80 | 80 | 6,400 | 9600-11000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 100 | 80 | 8,000 | 9600-11000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 120 | 85 | 9,600 | 15500-18000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 150 | 85 | 12,750 | 19500-22000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 200 | 85 | 17,000 | 28000-30000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 250 | 85 | 21,000 | 37000-38000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 300 | 85 | 25,000 | 43000-44000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
Notes:
- Red is live, blue is null and green is ground;
- Different covers are available including tempered glass, pc and etc.;
- ErP certificate is granted by SGS as energy saving proof.
Features
- Round Shaped,uniform light output,more comfortable.
- Using special-designed magnetic hoop structure,high quality with low heat consumption and lower energy loss.
- Stable and better applicability and consistency.
- Matching lamp-specific capacitors and has better low-temperature startup perfomance can work at -50℃.
- Built-in amalgam,less environmental pollution.
- Lamp production use automated equipments,better product performance and stability, while adopting the high quality phosphor material to ensure high lumen maintenance.
Savings
Retrofit Suggestion and Estimated Savings by using Induction Hi Bay Lamp(Calculation is based on $0.28/kWh energy cost):
| Energy Saving Comparison | 10hrs/day | 16hrs/day | 24hrs/day | |
| MHL/HPS cost / month (400W) | $35.00 | $56.00 | $71.00 | |
| SMGBL lamp cost / month (200W = above 400W) | $17.50 | $28.00 | $35.50 |
Tips:
- Save as much as LED lighting;
- Save more than 50% initial cost comparing with LED;
- Save maintenance cost by lowing the failure rate;

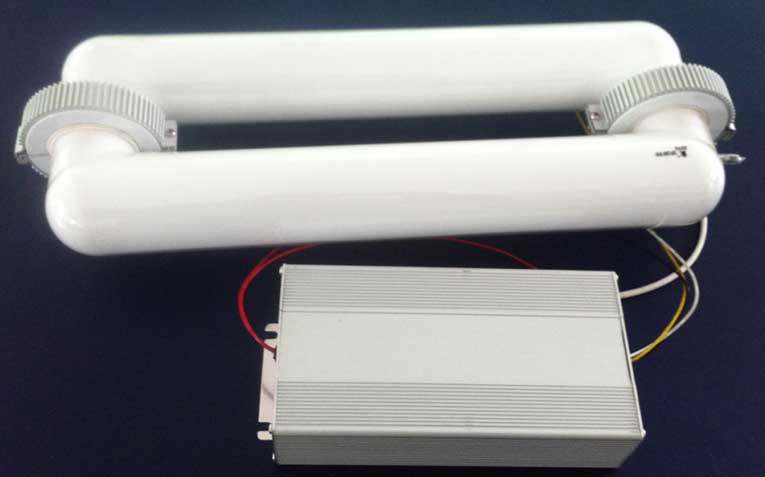

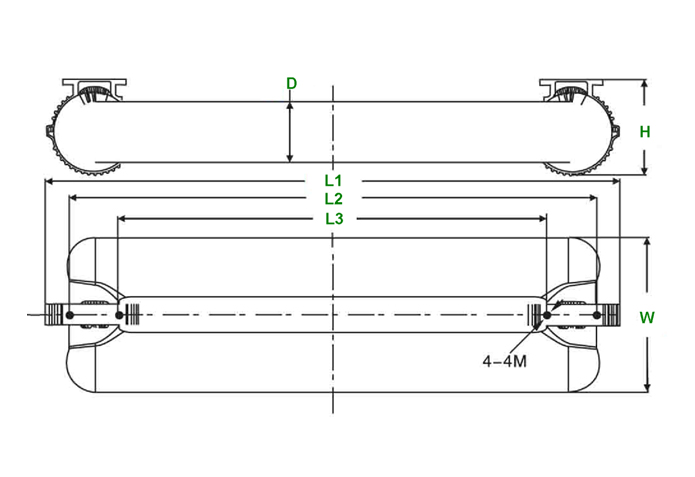

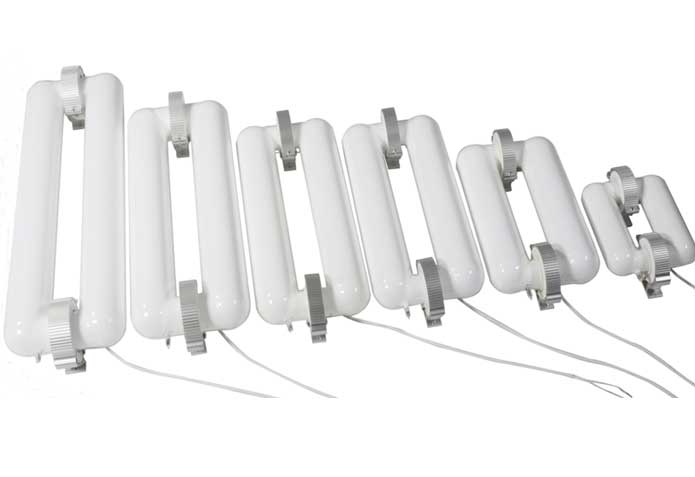

SMGBL® Induction Rectangular lamp and ballast
Delivering Efficient Energy
Description
Model:Induction rectangular lamp
Light Source:40 ～ 300W circular tube
Color Temp: 2700K ~ 6500K
Lumen Efficiency: 80-85 lm/W
Lifespan ≥ 100, 000 hrs
Warranty: 5 yrs
Lumen Maintenance: Above 80% after 80,000 hrs
Certification: ETL, SAA, CCC, FCC, CE, CB, C-TICK etc
Package Size: Depend on the watt
Specification
| Watt (W) | Power Efficiency (Im/W) | Initial Lumen (Im) | Effective Flux (Plm) | CRI (Ra) | Power Factor (PF) | Working Temperature (℉/℃) |
| 40 | 75 | 3,000 | 4500-5000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 80 | 80 | 6,400 | 9600-11000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 100 | 80 | 8,000 | 9600-11000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 120 | 85 | 9,600 | 15500-18000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 150 | 85 | 12,750 | 19500-22000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 200 | 85 | 17,000 | 28000-30000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 250 | 85 | 21,000 | 37000-38000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 300 | 85 | 25,000 | 43000-44000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
Notes:
- Red is live, blue is null and green is ground;
- Different covers are available including tempered glass, pc and etc.;
- ErP certificate is granted by SGS as energy saving proof.
Features
- Square Shaped,uniform light output,more comfortable.
- Using special-designed magnetic hoop structure,high quality with low heat consumption and lower energy loss.
- Stable and better applicability and consistency.
- Matching lamp-specific capacitors and has better low-temperature startup perfomance can work at -50℃.
- Built-in amalgam,less environmental pollution.
- Lamp production use automated equipments,better product performance and stability, while adopting the high quality phosphor material to ensure high lumen maintenance.
Savings
Retrofit Suggestion and Estimated Savings by using Induction Hi Bay Lamp(Calculation is based on $0.28/kWh energy cost):
| Energy Saving Comparison | 10hrs/day | 16hrs/day | 24hrs/day | |
| MHL/HPS cost / month (400W) | $35.00 | $56.00 | $71.00 | |
| SMGBL lamp cost / month (200W = above 400W) | $17.50 | $28.00 | $35.50 |
Tips:
- Save as much as LED lighting;
- Save more than 50% initial cost comparing with LED;
- Save maintenance cost by lowing the failure rate;

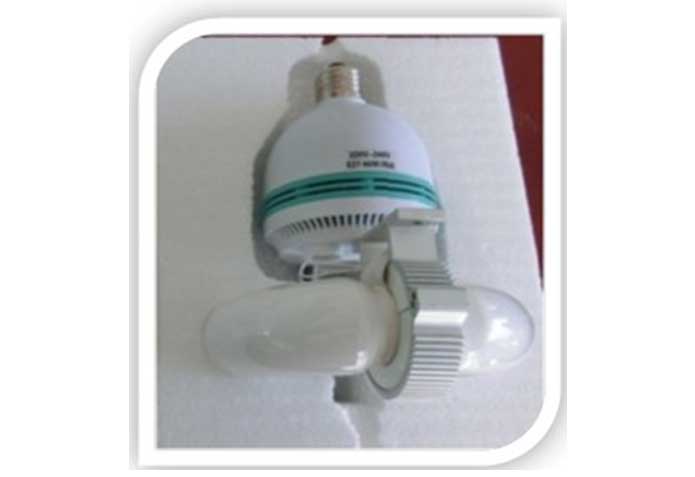

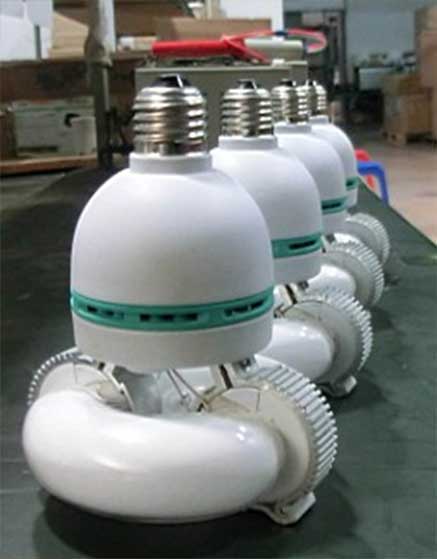

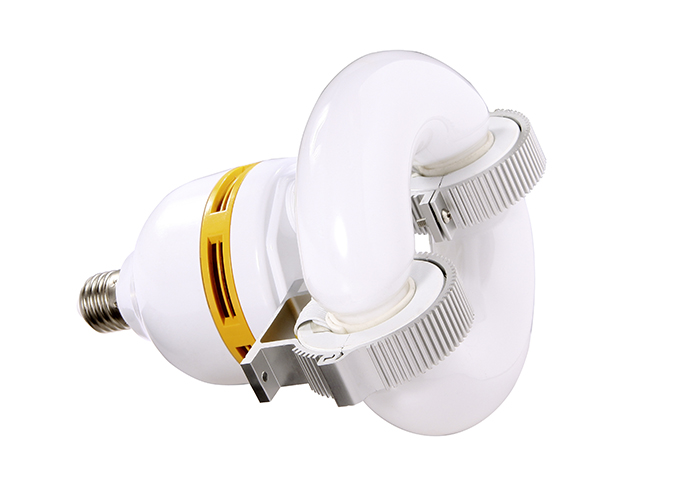

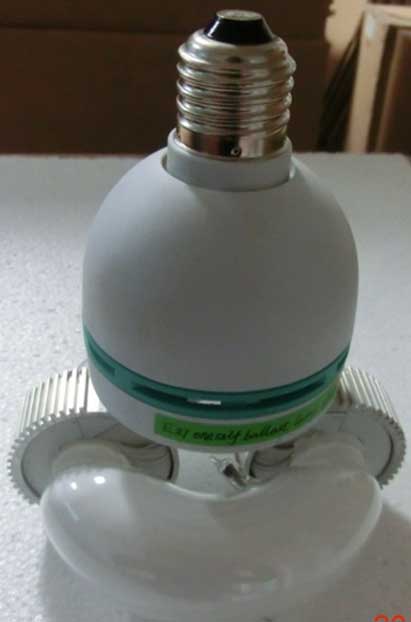

SMGBL® Induction self-ballast lamp
Delivering Efficient Energy
Description
Model:SMG-BL-YTH-23W/60W
Light Source:23W 40W 50W 60W
Color Temp: 2700K ~ 6500K
Lumen Efficiency: 70-75 lm/W
Lifespan ≥ 100, 000 hrs
Warranty: 5 yrs
Lumen Maintenance: Above 80% after 80,000 hrs
Certification: ETL, SAA, CCC, FCC, CE, CB, C-TICK etc
Package Size: Depend on the watt
Specification
| Watt (W) | Power Efficiency (Im/W) | Initial Lumen (Im) | Effective Flux (Plm) | CRI (Ra) | Power Factor (PF) | Working Temperature (℉/℃) |
| 23W | 70 | 1,610 | 2415-2737 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 40W | 75 | 3,000 | 4500-5000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 50W | 75 | 3,750 | 5625-6375 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 60W | 75 | 4,500 | 6750-7650 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
Notes:
- Red is live, blue is null and green is ground;
- Different covers are available including tempered glass, pc and etc.;
- ErP certificate is granted by SGS as energy saving proof.
Features
- Long working life ,normally these lamp can work for 60.000-100.000hours.
- Energy-saving :compared with the filament lamps ,the induciton lampcan save more than 80% energy.
- No flash:it will not make your eyes feel exhaust and can protect your eyes .
- Easliy install:screw it on your lamp holder is ok .
Savings
Retrofit Suggestion and Estimated Savings by using Induction Hi Bay Lamp(Calculation is based on $0.28/kWh energy cost):
| Energy Saving Comparison | 10hrs/day | 16hrs/day | 24hrs/day | |
| MHL/HPS cost / month (400W) | $35.00 | $56.00 | $71.00 | |
| SMGBL lamp cost / month (200W = above 400W) | $17.50 | $28.00 | $35.50 |
Tips:
- Save as much as LED lighting;
- Save more than 50% initial cost comparing with LED;
- Save maintenance cost by lowing the failure rate;

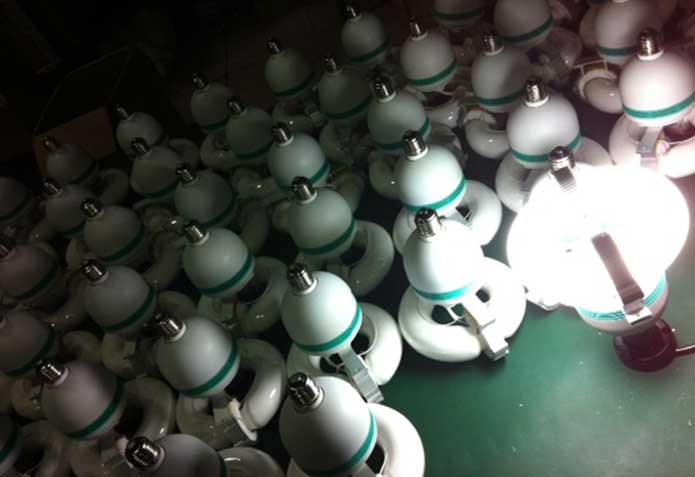

Packaging and Aging
