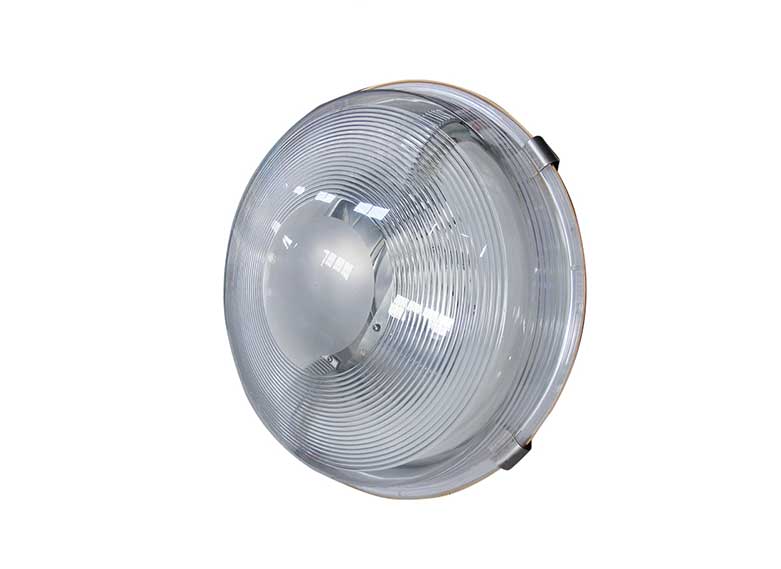

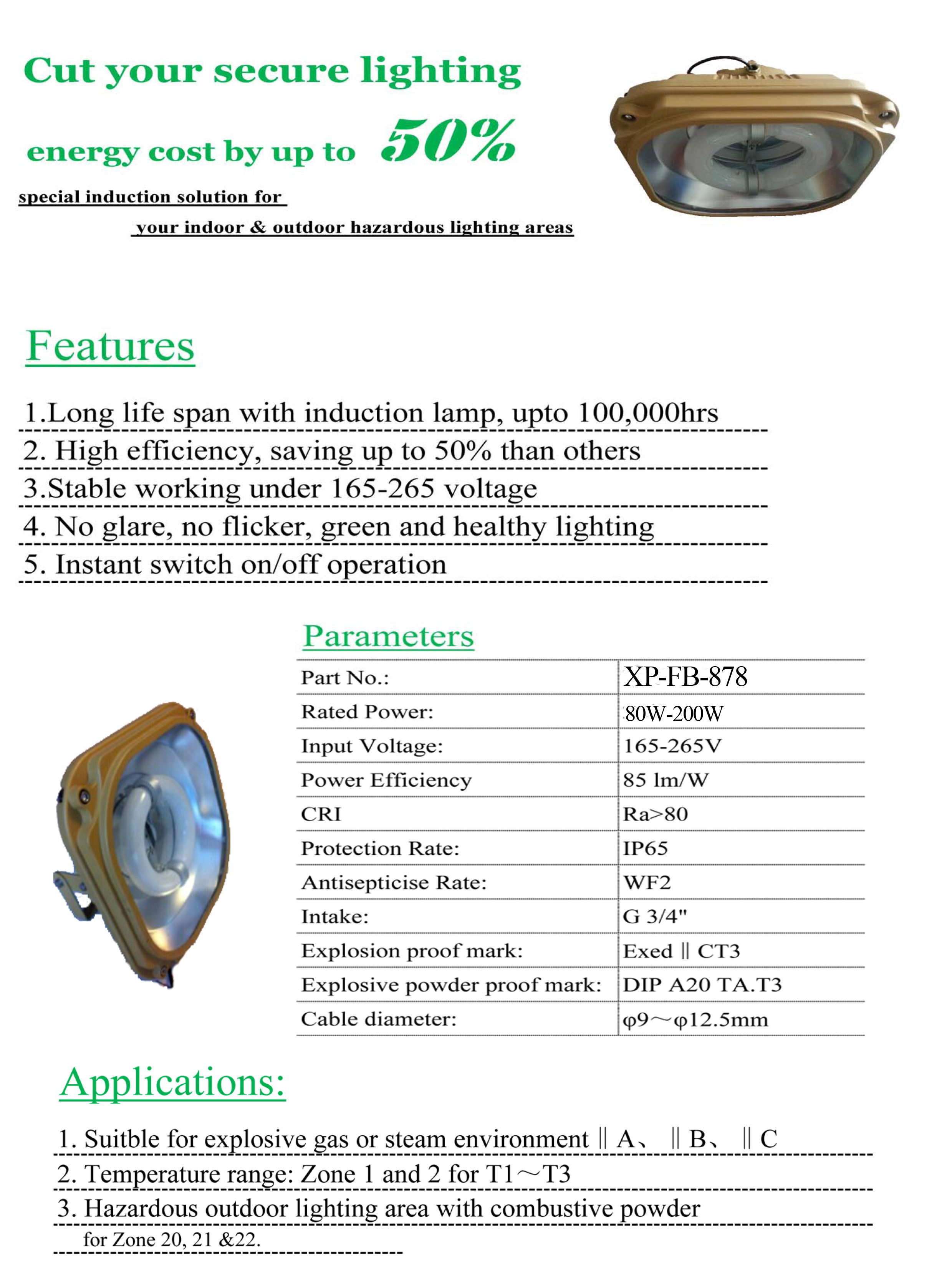

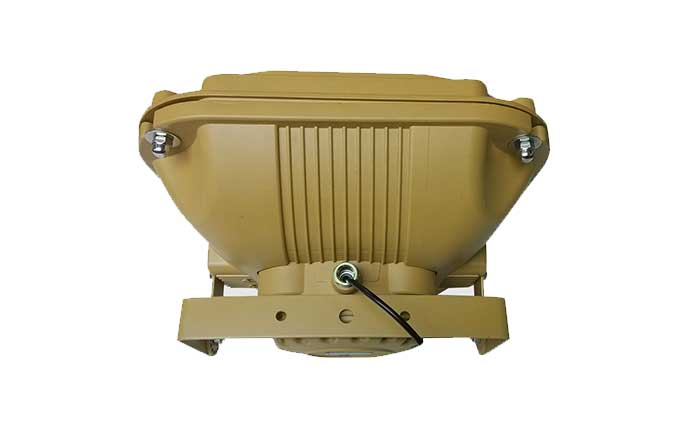

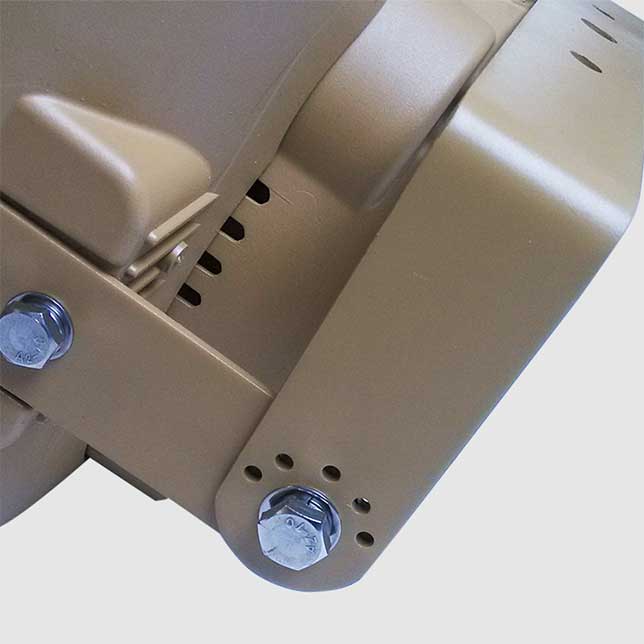

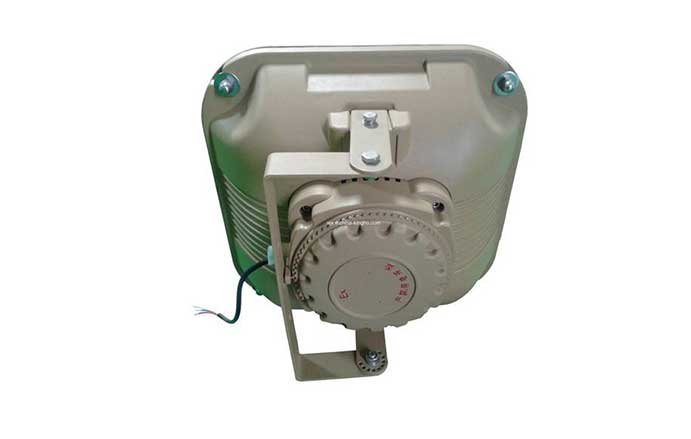

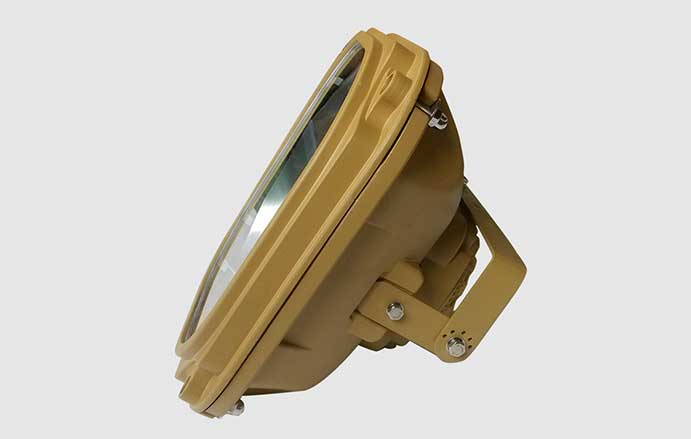

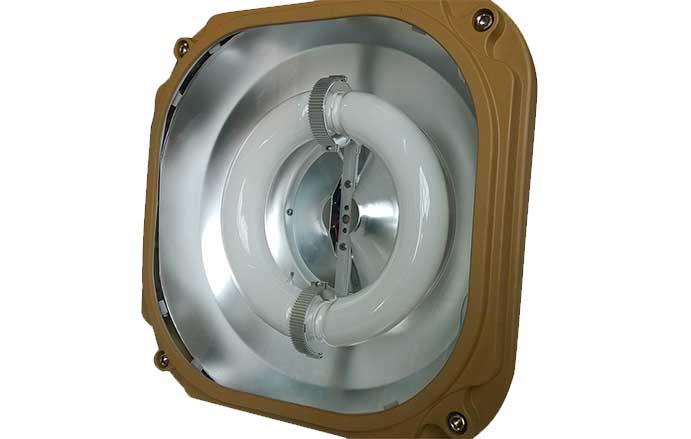

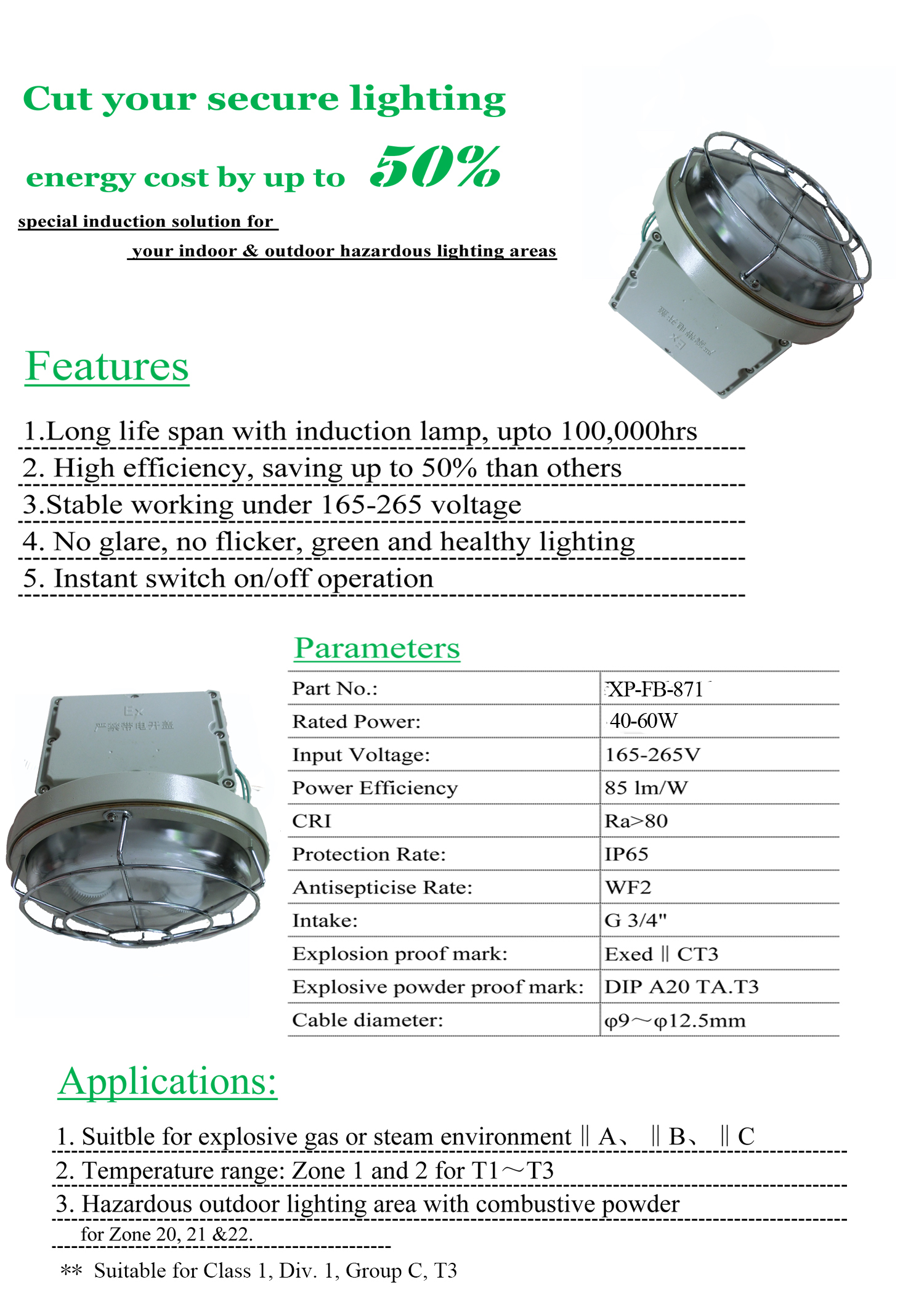

SMGBL® EXPLOSION PROOF LIGHT SMG-BL-871
Delivering Efficient Energy
Features
- Long life span with induction lamp upto 1,00,000 hours.
- High efficiency, saving upto 50% than others.
- Stable working under 165 – 265 voltage.
- No glare, no flicker, green & healthy lighting.
- Instant switch on/ off operation.
Parameters
Part no :SMG-BL-871
Rated power : 40 – 60W
Input voltage : 165 – 265V
Power efficiency : 85 lm/ W
CRI : Ra>80
Protection rate : IP65
Antiseptic rate : WF2
Intake : G 3/4
Explosion proof mark : Exed ll CT 3
Explosive powder proof mark : DIP A20 TA.T3
Cable diameter : 9 – 12.5 mm
Application
- Suitable for explosive gas or steam environment llA, llB, llC.
- Temperature range: Zone 1 and 2 for T1 ~ T 3.

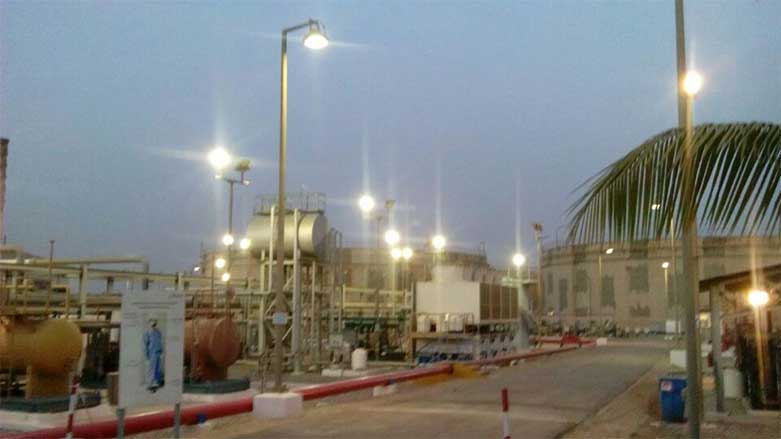

- Hazardous outdoor lighting area with combustive powder for Zone 20, 21 & 22.

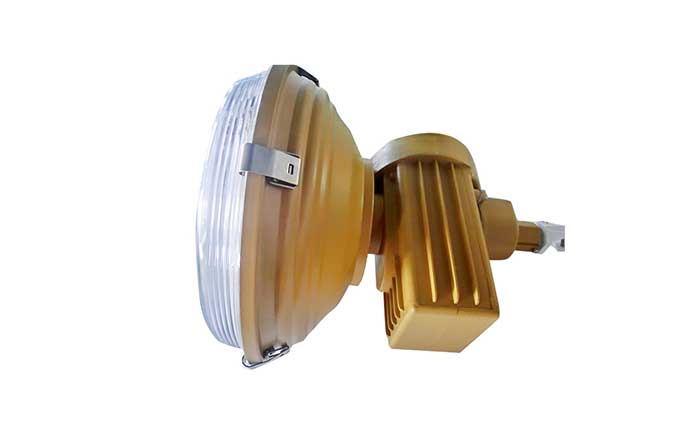

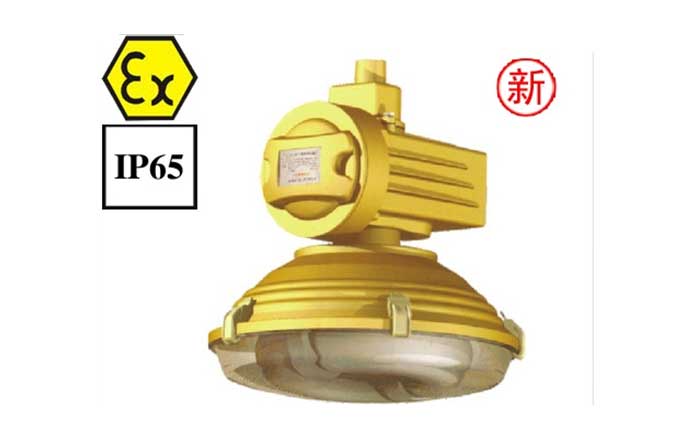

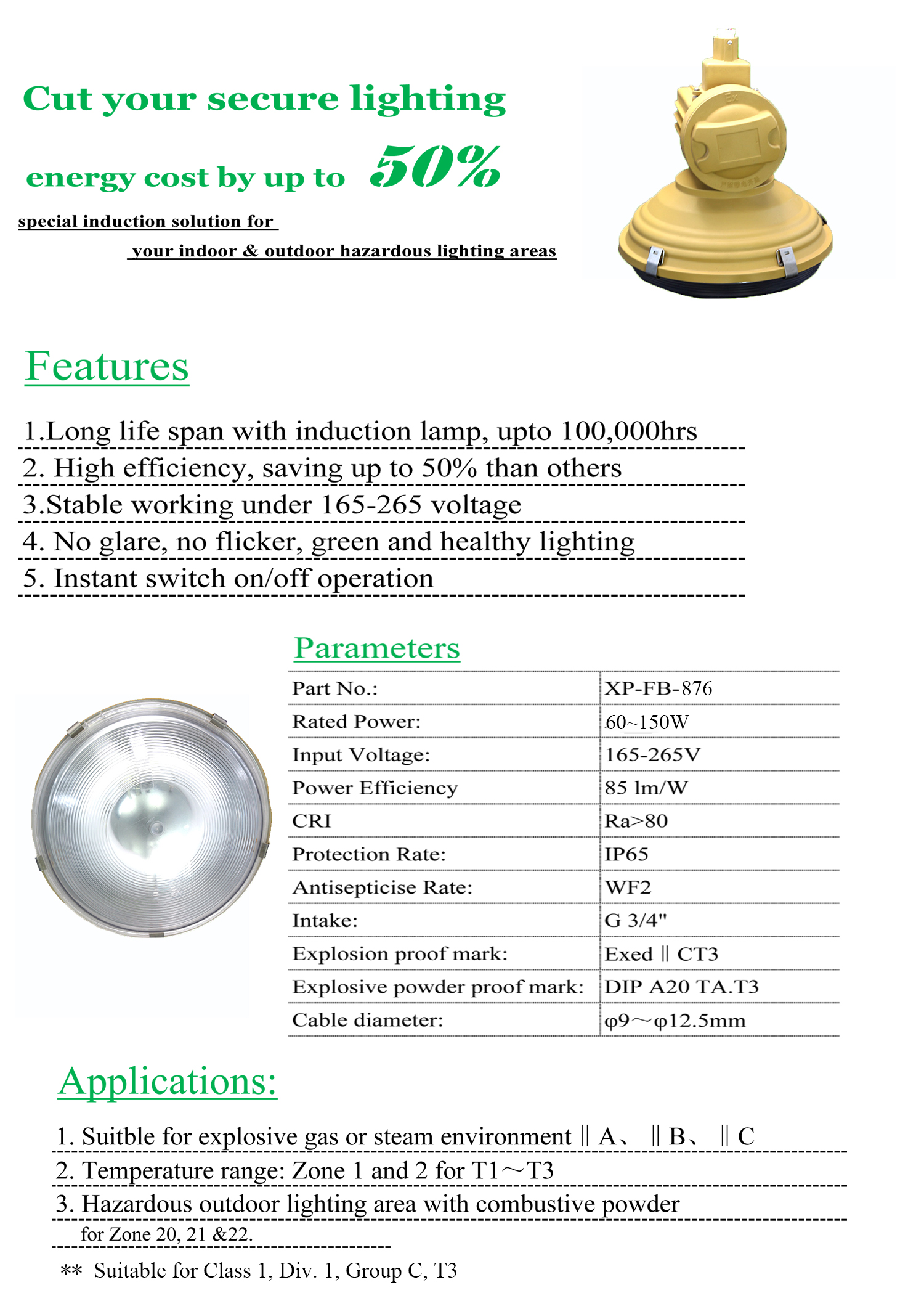

SMGBL® EXPLOSION PROOF LIGHT SMG-BL-876
Delivering Efficient Energy
Features
- Long life span with induction lamp upto 1,00,000 hours.
- High efficiency, saving upto 50% than others.
- Stable working under 165 – 265 voltage.
- No glare, no flicker, green & healthy lighting.
- Instant switch on/ off operation.
Parameters
Part no :SMG-BL-871
Rated power : 60 – 150W
Input voltage : 165 – 265V
Power efficiency : 85 lm/ W
CRI : Ra>80
Protection rate : IP65
Antiseptic rate : WF2
Intake : G 3/4
Explosion proof mark : Exed ll CT 3
Explosive powder proof mark : DIP A20 TA.T3
Cable diameter : 9 – 12.5 mm
Application
- Suitable for explosive gas or steam environment llA, llB, llC.
- Temperature range: Zone 1 and 2 for T1 ~ T 3.
- Hazardous outdoor lighting area with combustive powder for Zone 20, 21 & 22.
SMGBL® EXPLOSION PROOF LIGHT SMG-BL-871
Delivering Efficient Energy
Features
- Long life span with induction lamp upto 1,00,000 hours.
- High efficiency, saving upto 50% than others.
- Stable working under 165 – 265 voltage.
- No glare, no flicker, green & healthy lighting.
- Instant switch on/ off operation.
Parameters
Part no :SMG-BL-871
Rated power : 80 – 200W
Input voltage : 165 – 265V
Power efficiency : 85 lm/ W
CRI : Ra>80
Protection rate : IP65
Antiseptic rate : WF2
Intake : G 3/4
Explosion proof mark : Exed ll CT 3
Explosive powder proof mark : DIP A20 TA.T3
Cable diameter : 9 – 12.5 mm
Application
- Suitable for explosive gas or steam environment llA, llB, llC.
- Temperature range: Zone 1 and 2 for T1 ~ T 3.
- Hazardous outdoor lighting area with combustive powder for Zone 20, 21 & 22.
