PRODUCT

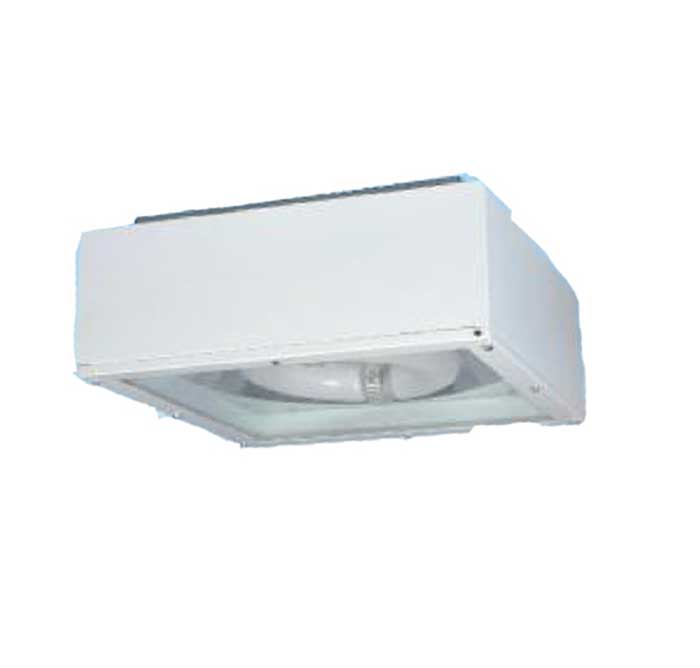

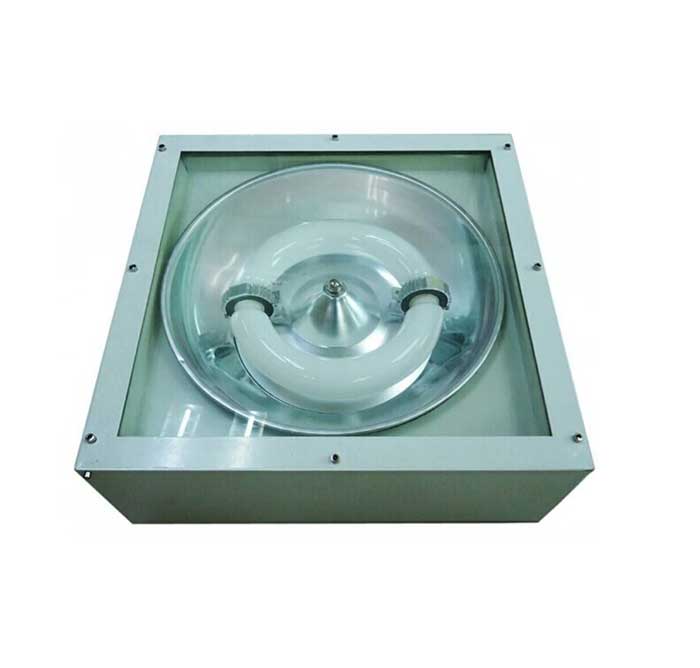

SMGBL® CEILING LIGHT SMG-BL-521
Delivering Efficient Energy
Description
Model:SMG-BL-521 surface mount lamp
Light Source: 80 ～ 250W rectangle tube
Color Temp: 2700K ~ 6500K
Lumen Efficiency: 85 lm/W
Lifespan ≥ 100, 000 hrs
Warranty: 5 yrs
Lumen Maintenance: Above 80% after 80,000 hrs
IP Protection Rate: IP65
Certification: ETL, PSB, TUV, FCC, CB, CE, SAA

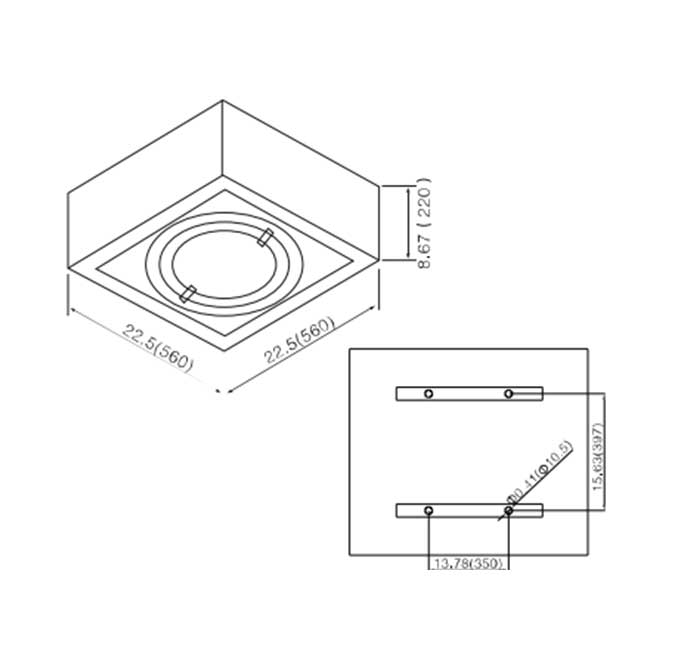

Dimension: 560*560*220mm
Package Size: 575*575*300CM
Specification
| Watt (W) | Power Efficiency (Im/W) | Initial Lumen (Im) | Effective Flux (Plm) | CRI (Ra) | Power Factor (PF) | Working Temperature (℉/℃) |
| 80 | 80 | 6,400 | 9600-11000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 100 | 80 | 8,000 | 9600-11000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 120 | 85 | 9,600 | 15500-18000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 150 | 85 | 12,750 | 19500-22000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
Notes:
- Red is live, blue is null and green is ground;
- IP65 rating protection with underwater test before shipment;
- Perfect performance under tough environments like sea shore.
Features
- No burning, sediment or decay problems with high quality phosphor.
- 50% saving on lighting energy cost.
- Lower ownership cost / initial cost.
- No Glare or flicker, comfortable and healthy light distribution.
- Electronical components are installed in the gear box, all in one design.
- Die-casting aluminum fixture with spray surface finish.
- Tempered glass cover with perfect light transmittance.
- Polished aluminum reflector with adjustable optical beam angle.
Savings
Retrofit Suggestion and Estimated Savings by using Induction Hi Bay Lamp(Calculation is based on $0.28/kWh energy cost):
| Energy Saving Comparison | 10hrs/day | 16hrs/day | 24hrs/day | |
| MHL/HPS cost / month (160W) | $14.00 | $22.00 | $33.00 | |
| SMGBL lamp cost / month (80W = above 160W) | $7.00 | $11.00 | $16.50 |
Tips:
- Save as much as LED lighting;
- Save more than 50% initial cost comparing with LED;
- Save maintenance cost by lowing the failure rate;
Application
Roads, streets, highways, viaducts, bridges and other lighting area.
SMGBL® CEILING LIGHT SMG-BL-901
Delivering Efficient Energy
Description
Model:SMG-BL-901 Ceiling Light
Light Source:40 ～ 120W circular tube
Color Temp: 2700K ~ 6500K
Lumen Efficiency: 80-85 lm/W
Lifespan ≥ 100, 000 hrs
Warranty: 5 yrs
Lumen Maintenance: Above 80% after 80,000 hrs
IP Protection Rate: IP54
Certification: ETL, SAA, CE, CCC, FCC, CB, C-TICK etc
Installlation Height: 4-6m
Package Size: 65.5*65.5*40.5CM 2pcs/ctn
Specification
| Watt (W) | Power Efficiency (Im/W) | Initial Lumen (Im) | Effective Flux (Plm) | CRI (Ra) | Power Factor (PF) | Working Temperature (℉/℃) |
| 40 | 70 | 2,800 | 4200-4760 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 80 | 80 | 6,400 | 9600-11000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 100 | 80 | 8,000 | 9600-11000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 120 | 85 | 9,600 | 15500-18000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
Notes:
- Red is live, blue is null and green is ground;
- Different covers are available including tempered glass, pc and etc.;
- ErP certificate is granted by SGS as energy saving proof.
Features
- Housing: Imported cold -rolled steel plate ,static spraying surface.
- Reflector: Mirror surface aluminum reflector provides optimum light distribution.
- Cover: High intensity,high temperature and UV resistant PC cover.
- Can match with SMGBL-40W~100W Round type induction lamp with its excellent color wade range of color temperature and soft light,stable light output.
- IP Class : IP54.
Savings
Retrofit Suggestion and Estimated Savings by using Induction Hi Bay Lamp(Calculation is based on $0.28/kWh energy cost):
| Energy Saving Comparison | 10hrs/day | 16hrs/day | 24hrs/day | |
| MHL/HPS cost / month (400W) | $14.00 | $22.00 | $33.00 | |
| SMGBL lamp cost / month (200W = above 400W) | $17.50 | $28.00 | $35.50 |
Tips:
- Save as much as LED lighting;
- Save more than 50% initial cost comparing with LED;
- Save maintenance cost by lowing the failure rate;
Application

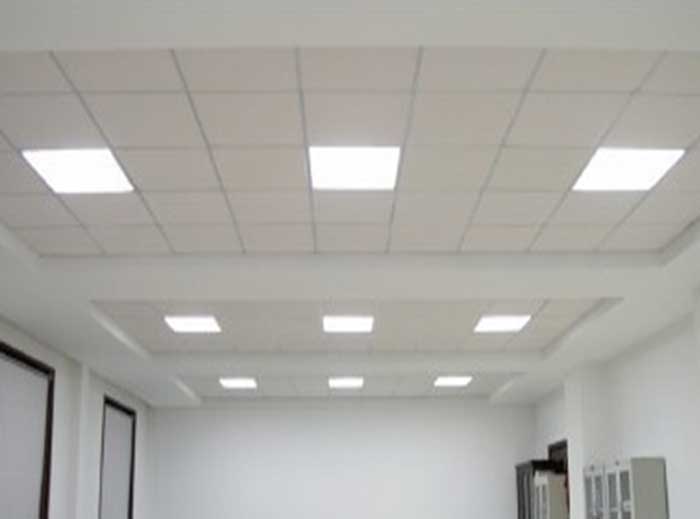

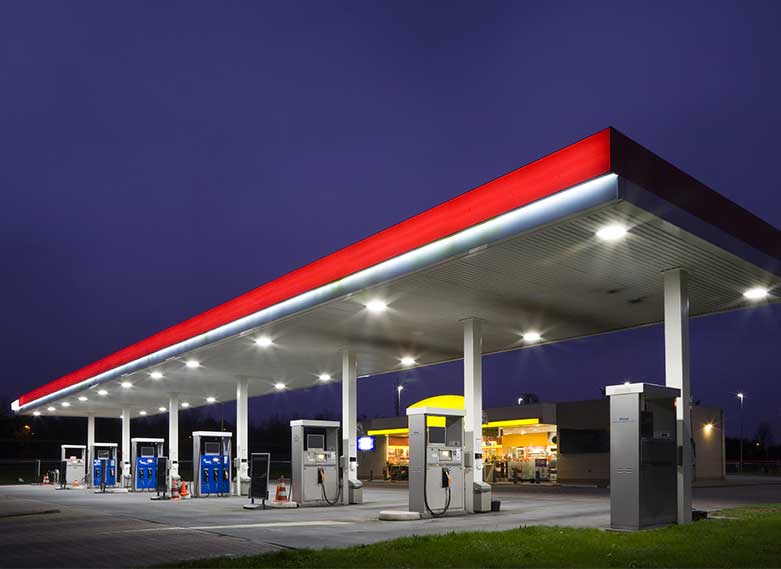

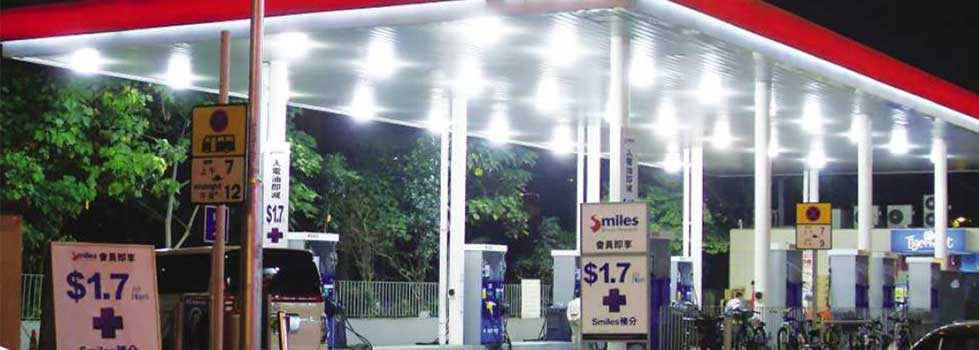

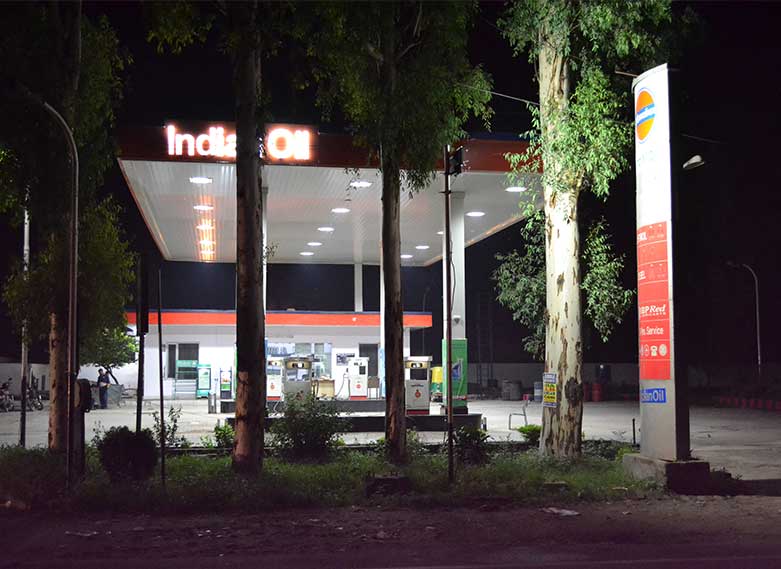

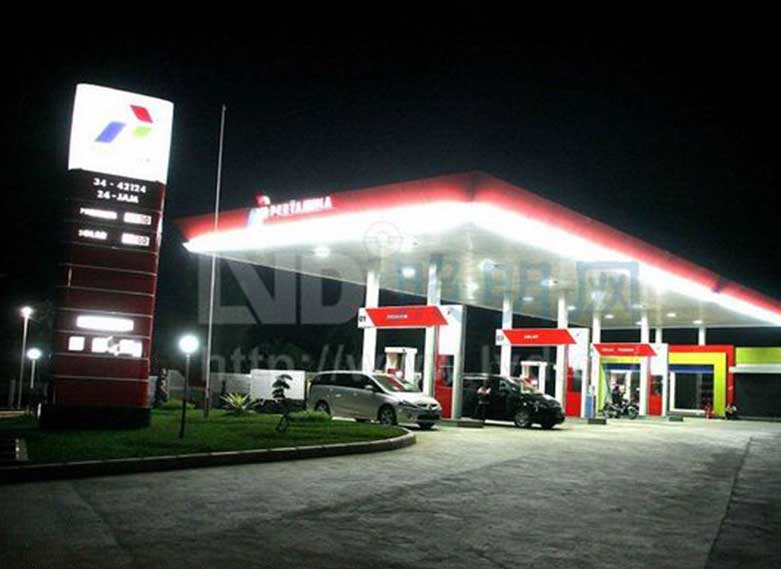

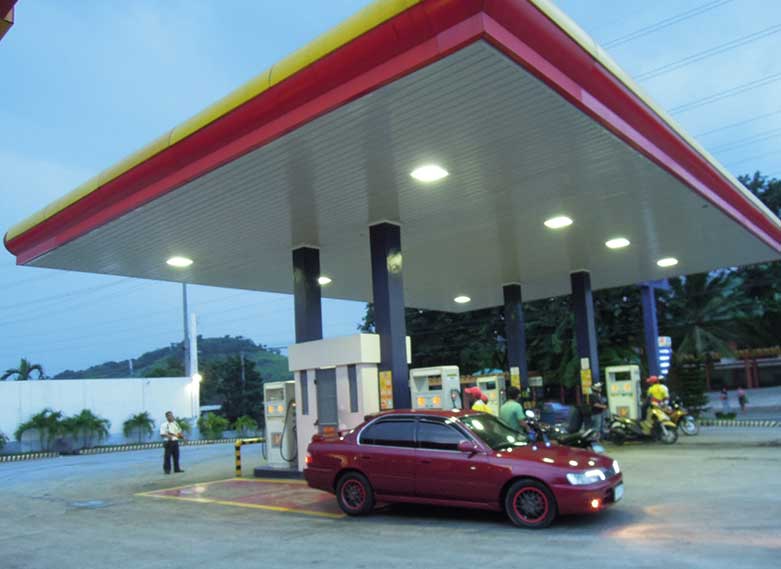

Application : indoor garage, Gas station store, warehouse, factory, corridor,etc.

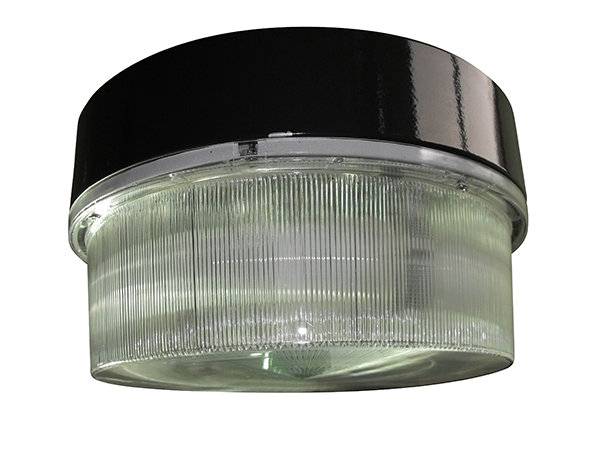

SMGBL® CEILING LIGHT SMG-BL-911
Delivering Efficient Energy
Description

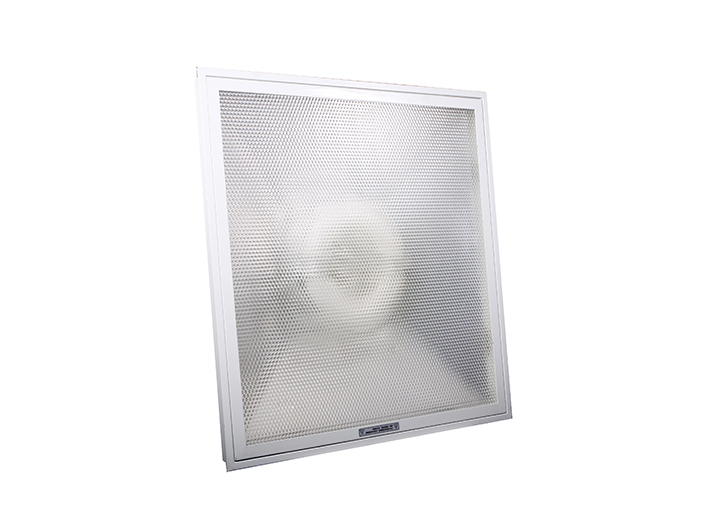

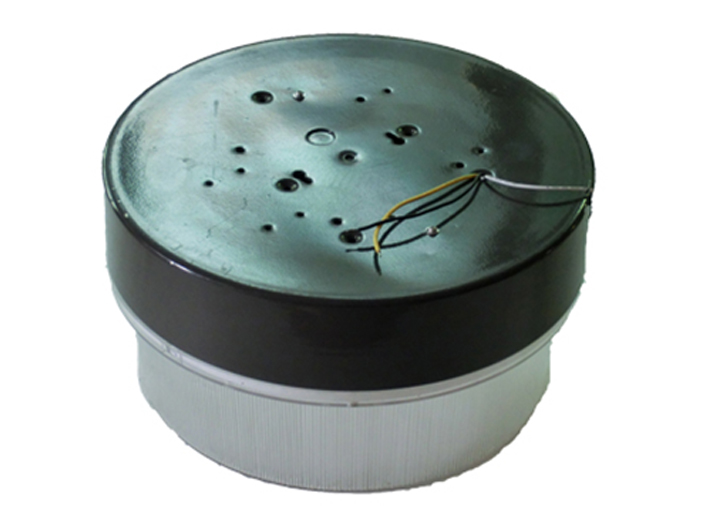

Model:SMG-BL-911 Ceiling Light
Light Source:40 ～ 150W circular tube
Color Temp: 2700K ~ 6500K
Lumen Efficiency: 80-85 lm/W
Lifespan ≥ 100, 000 hrs
Warranty: 5 yrs
Lumen Maintenance: Above 80% after 80,000 hrs
IP Protection Rate: IP54
Certification: ETL, SAA, CE, CCC, FCC, CB, C-TICK etc
Installlation Height: 4-6m
Package Size: 295*295*190mm (40-100W)
362*362*203mm (80-150W)
Specification
| Watt (W) | Power Efficiency (Im/W) | Initial Lumen (Im) | Effective Flux (Plm) | CRI (Ra) | Power Factor (PF) | Working Temperature (℉/℃) |
| 40 | 70 | 2,800 | 4200-4760 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 80 | 80 | 6,400 | 9600-11000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 100 | 80 | 8,000 | 9600-11000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 120 | 85 | 9,600 | 15500-18000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 150 | 85 | 12,500 | 19500-22000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
Notes:
- Red is live, blue is null and green is ground;
- Different covers are available including tempered glass, pc and etc.;
- ErP certificate is granted by SGS as energy saving proof.
Features
- Housing: Imported cold -rolled steel plate ,static spraying surface.
- Reflector: Mirror surface aluminum reflector provides optimum light distribution.
- Cover: High intensity,high temperature and UV resistant PC cover.
- Can match with SMGBL-40W~100W Round type induction lamp with its excellent color.
- Wade range of color temperature and soft light,stable light output.
- IP Class : IP65.
Savings
Retrofit Suggestion and Estimated Savings by using Induction Hi Bay Lamp(Calculation is based on $0.28/kWh energy cost):
| Energy Saving Comparison | 10hrs/day | 16hrs/day | 24hrs/day | |
| MHL/HPS cost / month (150W) | $13.00 | $21.00 | $31.00 | |
| SMGBL lamp cost / month (70W = above 150W) | $6.00 | $9.40 | $14.00 |
Tips:
- Save as much as LED lighting;
- Save more than 50% initial cost comparing with LED;
- Save maintenance cost by lowing the failure rate;
Application
Application : indoor garage, Gas station store, warehouse, factory, corridor,etc.
SMGBL® CEILING LIGHT SMG-BL-911
Delivering Efficient Energy
Description

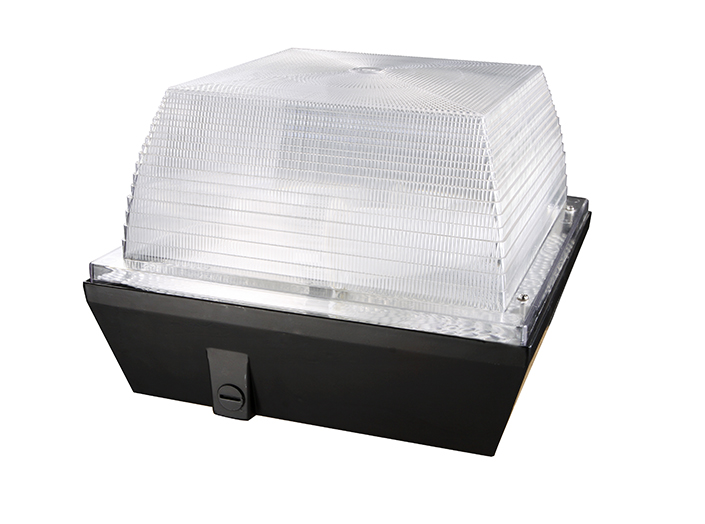

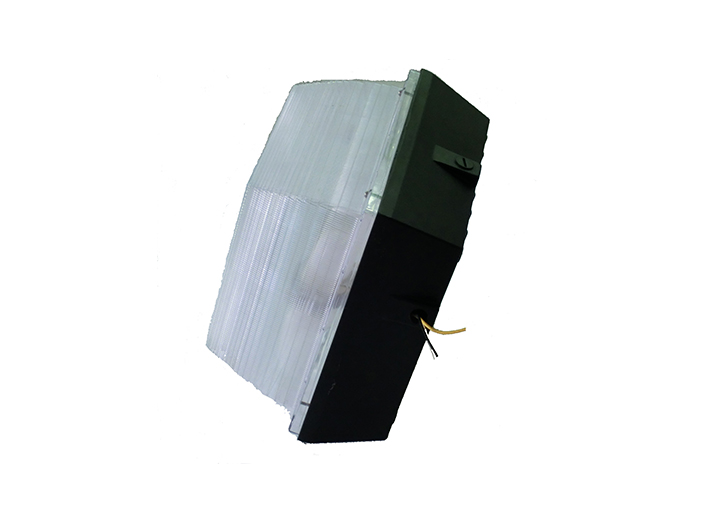

Model:SMG-BL-912 Ceiling Light
Light Source:40 ～ 100W circular tube
Color Temp: 2700K ~ 6500K
Lumen Efficiency: 80-85 lm/W
Lifespan ≥ 100, 000 hrs
Warranty: 5 yrs
Lumen Maintenance: Above 80% after 80,000 hrs
IP Protection Rate: IP54
Certification: ETL, SAA, CE, CCC, FCC, CB, C-TICK etc
Installlation Height: 4-6m
Size: 224*224*185mm (40-80W)
315*315*210mm(80-100W)
Package Size: 43.5*40*35CM
Specification
| Watt (W) | Power Efficiency (Im/W) | Initial Lumen (Im) | Effective Flux (Plm) | CRI (Ra) | Power Factor (PF) | Working Temperature (℉/℃) |
| 40 | 70 | 2,800 | 4200-4760 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 80 | 80 | 6,400 | 9600-11000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 100 | 80 | 8,000 | 9600-11000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
Notes:
- Red is live, blue is null and green is ground;
- Different covers are available including tempered glass, pc and etc.;
- ErP certificate is granted by SGS as energy saving proof.
Features
- Housing: Imported cold -rolled steel plate ,static spraying surface.
- Reflector: Mirror surface aluminum reflector provides optimum light distribution.
- Cover: High intensity,high temperature and UV resistant PC cover.
- Can match with SMGBL-40W~100W Round type induction lamp with its excellent color wade range of color temperature and soft light,stable light output.
- IP Class : IP65.
Savings
Retrofit Suggestion and Estimated Savings by using Induction Hi Bay Lamp(Calculation is based on $0.28/kWh energy cost):
| Energy Saving Comparison | 10hrs/day | 16hrs/day | 24hrs/day | |
| MHL/HPS cost / month (400W) | $35.00 | $56.00 | $71.00 | |
| SMGBL lamp cost / month (200W = above 400W) | $17.50 | $28.40 | $35.50 |
Tips:
- Save as much as LED lighting;
- Save more than 50% initial cost comparing with LED;
- Save maintenance cost by lowing the failure rate;
Application
Application : indoor garage, Gas station store, warehouse, factory, corridor,etc.
