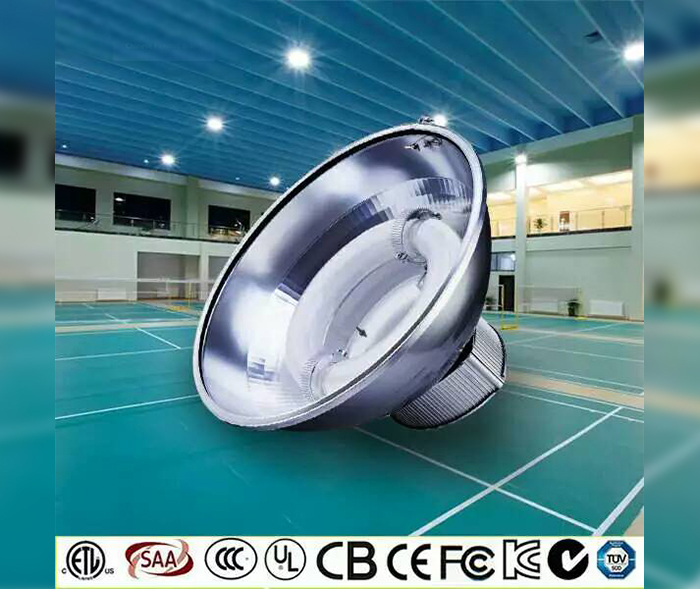

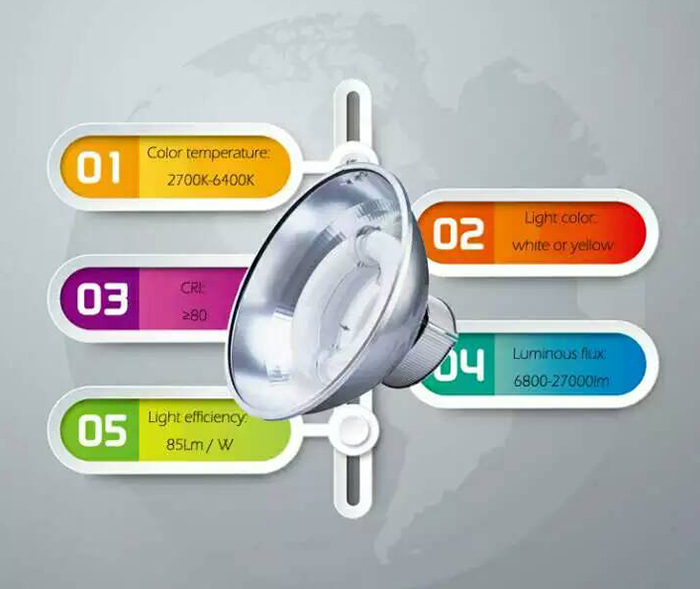

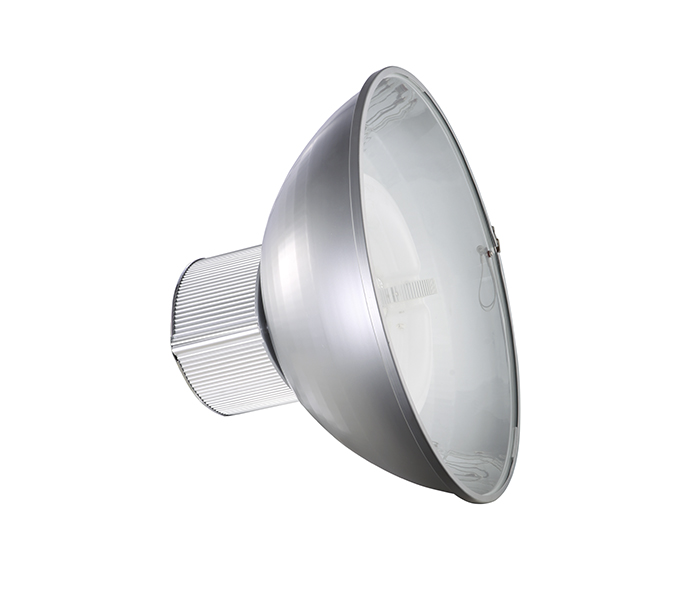

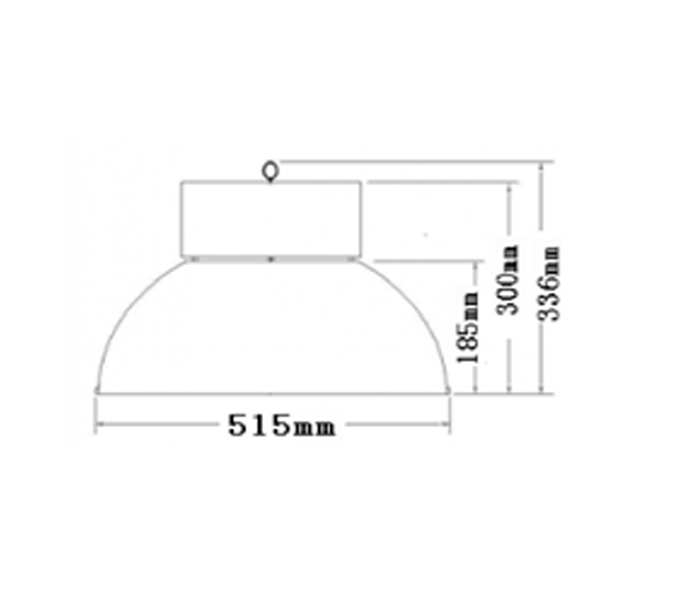

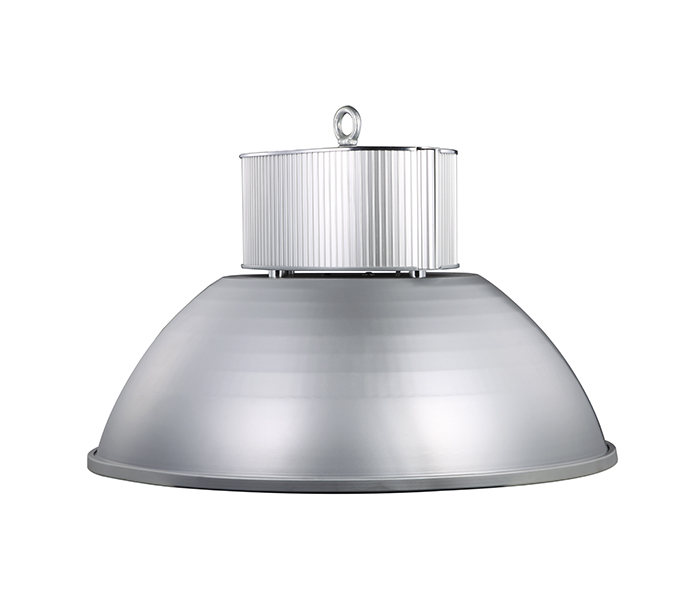

SMGBL® HIGH BAY LIGHT SMG-BL-201
Delivering Efficient Energy
Description
Model:SMG-BL-201 HIGH BAY
Light Source:80 ～ 300W circular tube
Color Temp: 2700K ~ 6500K
Lumen Efficiency: 80-85 lm/W
Lifespan ≥ 100, 000 hrs
Warranty: 5 yrs
Lumen Maintenance: Above 80% after 80,000 hrs
IP Rate: IP65
Certification: ETL, PSB, TUV, FCC, CB, CE, SAA
Installlation Height: 4-15m
Package Size: 53*5*38CM
Specification
| Watt (W) | Power Efficiency (Im/W) | Initial Lumen (Im) | Effective Flux (Plm) | CRI (Ra) | Power Factor (PF) | Working Temperature (℉/℃) |
| 80 | 80 | 6,400 | 9600-11000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 100 | 80 | 8,000 | 9600-11000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 120 | 85 | 10,000 | 15500-18000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 150 | 85 | 12,500 | 19500-22000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 200 | 85 | 17,000 | 28000-30000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 250 | 85 | 21,500 | 37000-38000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 300 | 85 | 25,000 | 43000-44000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
Notes:
- Red is live, blue is null and green is ground;
- Different covers are available including tempered glass, pc and etc.;
- ErP certificate is granted by SGS as energy saving proof.
Features
- No burning or decay problems with high quality phosphor.
- 50% saving on lighting energy cost.
- Lower ownership cost / initial cost.
- No Glare or flicker, comfortable and healthy light distribution.
- Separated ballast with excellent heat dissipation.
- Die-casting aluminum fixture with spray surface finish.
- Additional safety hook on the lamp housing ensures the safety priority of the lamp.
- Polished aluminum reflector with adjustable optical beam angle.
Savings
Retrofit Suggestion and Estimated Savings by using Induction Hi Bay Lamp(Calculation is based on $0.28/kWh energy cost):
| Energy Saving Comparison | 10hrs/day | 16hrs/day | 24hrs/day | |
| MHL/HPS cost / month (400W) | $35.00 | $56.00 | $71.00/ | |
| SMGBL lamp cost / month (200W = above 400W) | $17.50 | $28.00 | $35.50 |
Tips:
- Save as much as LED lighting;
- Save more than 50% initial cost comparing with LED;
- Save maintenance cost by lowing the failure rate;
Application

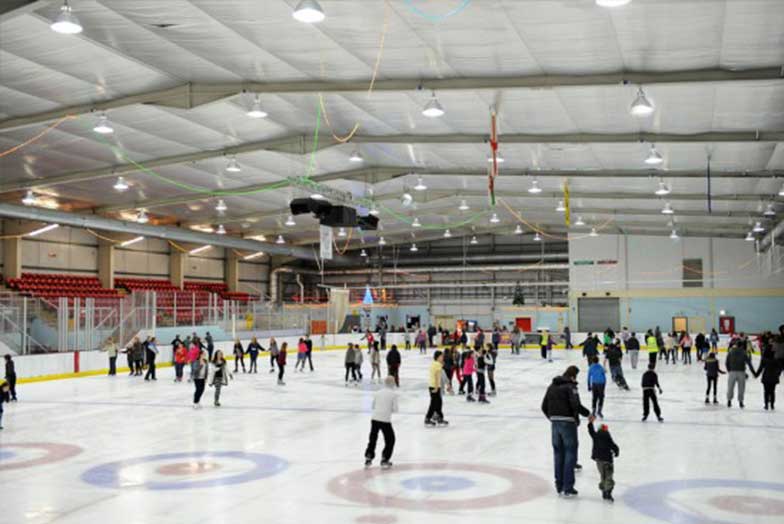

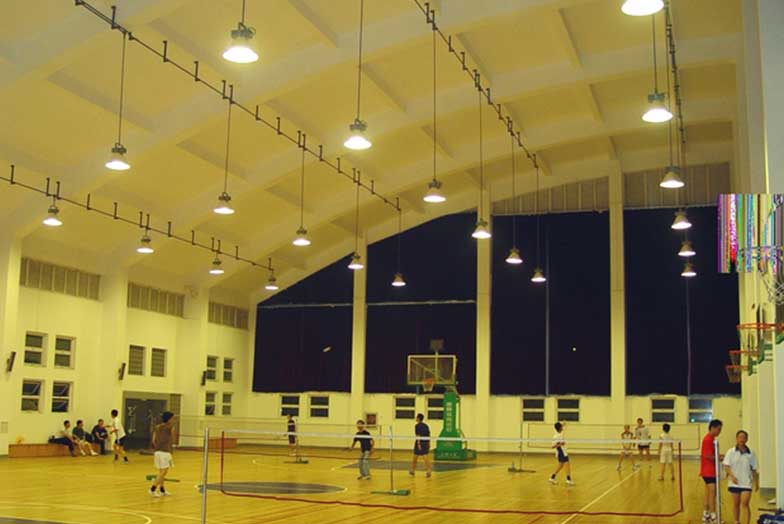

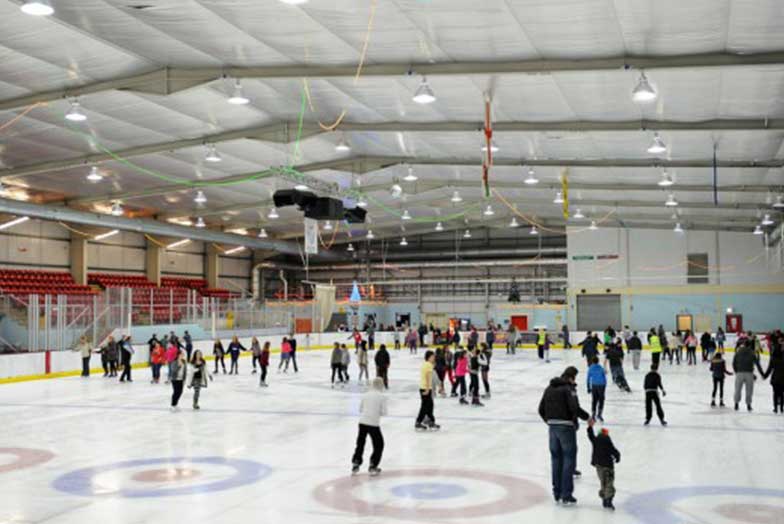

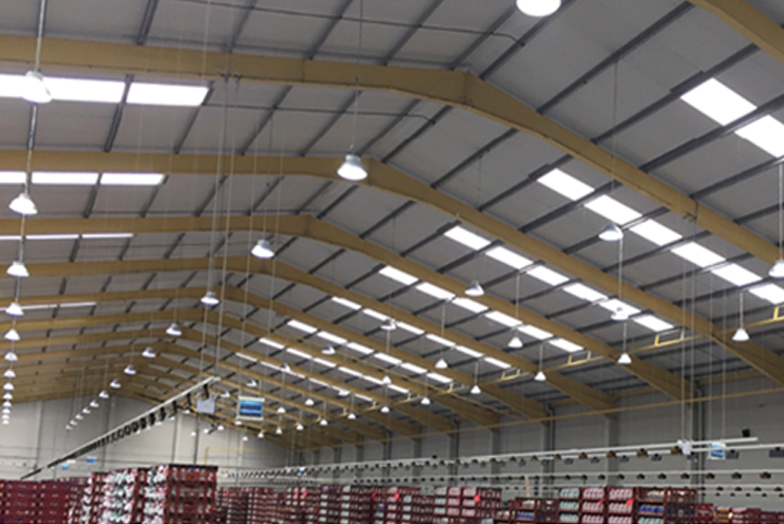

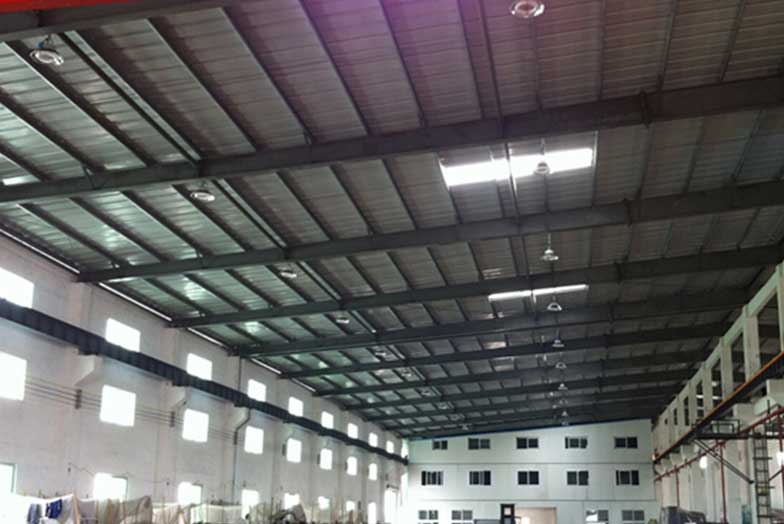

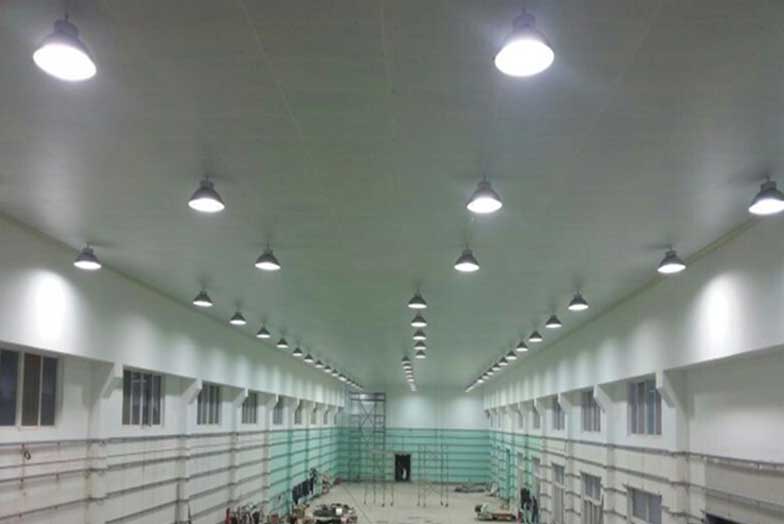

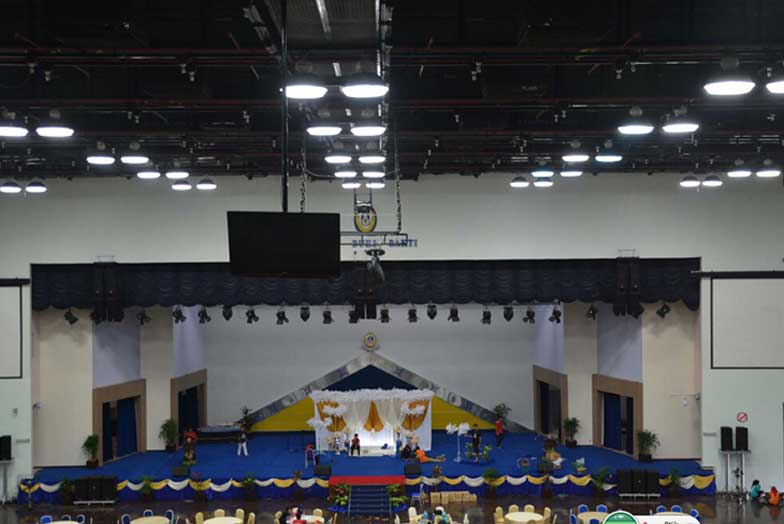

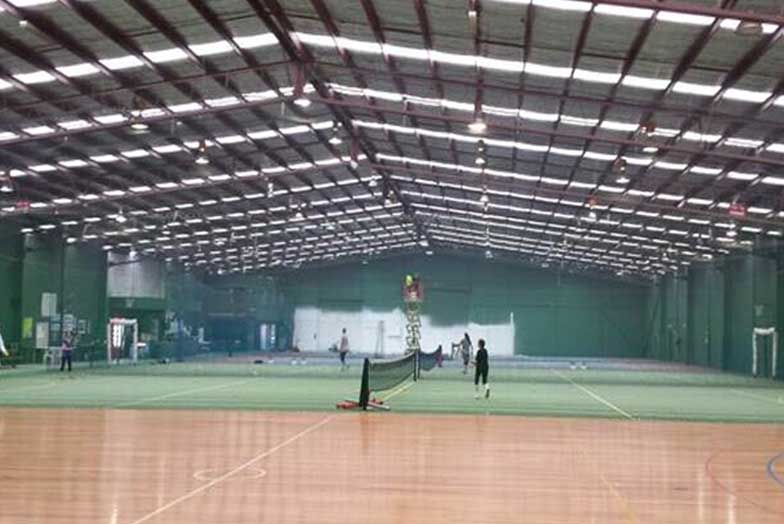

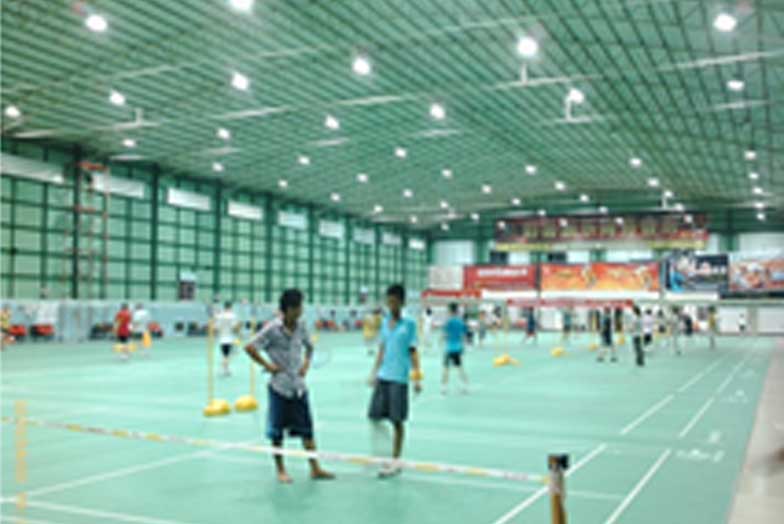

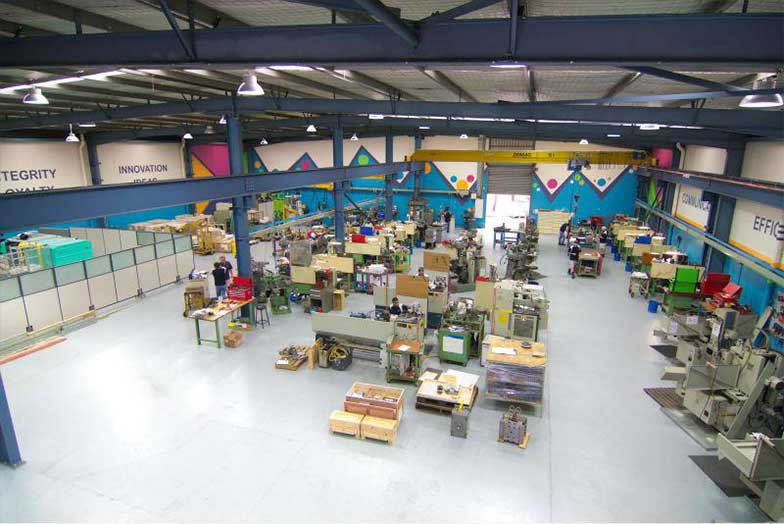

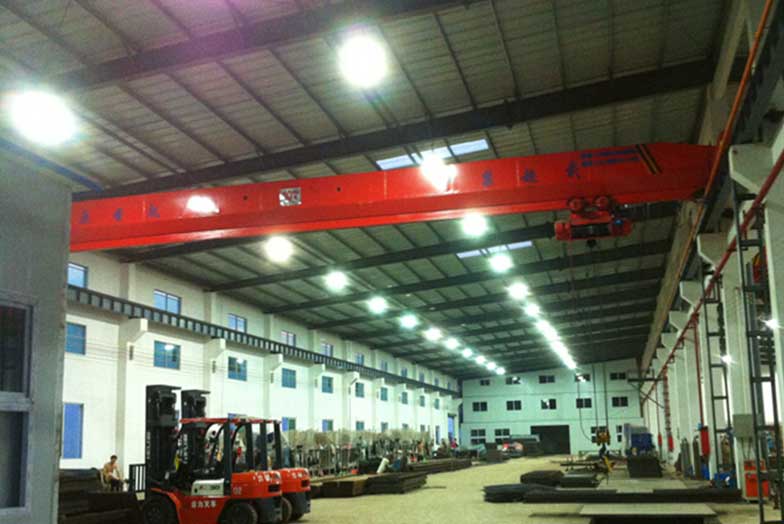

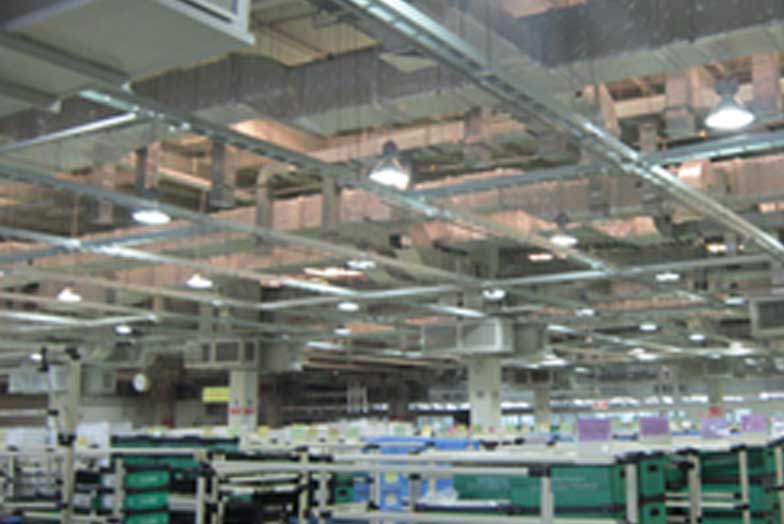

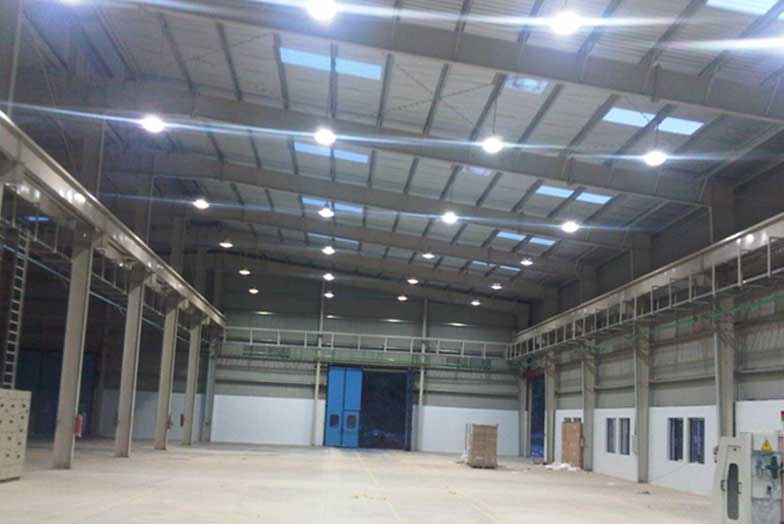

Industrial plants, workshops, warehouses, airports, exhibition halls, supermarkets, and etc.

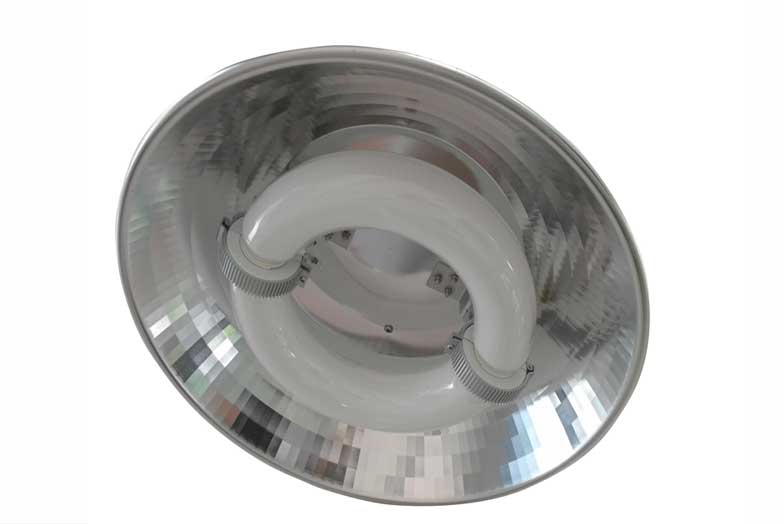

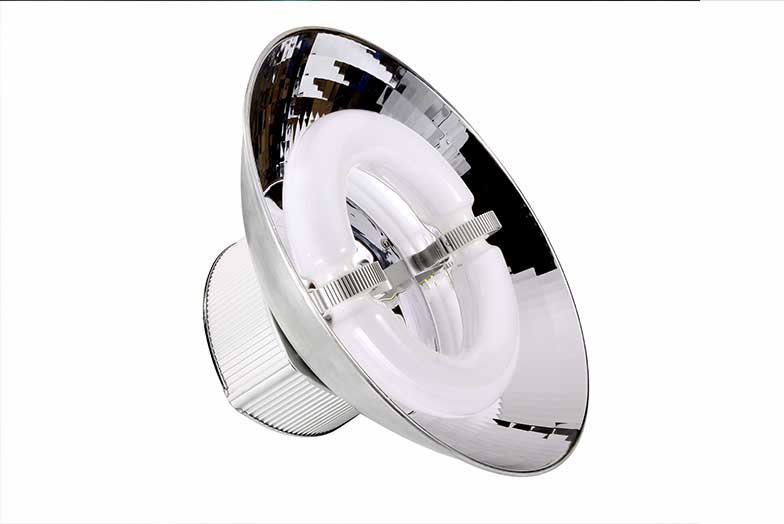

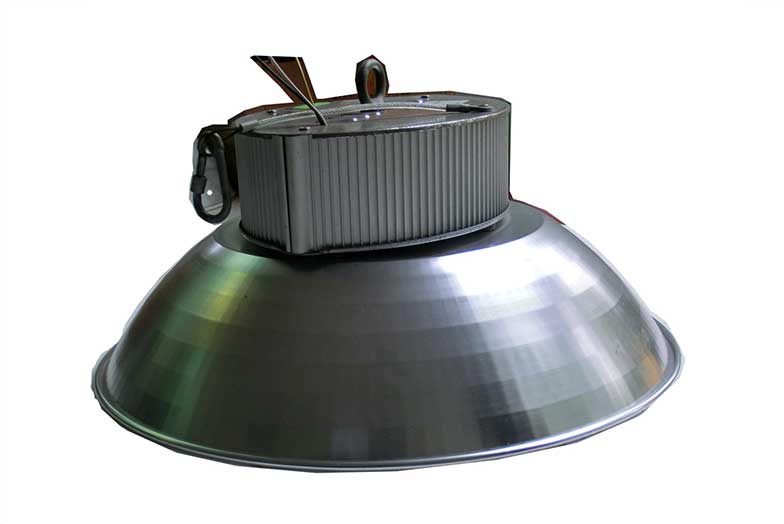

SMGBL® HIGH BAY LIGHT SMG-BL-202
Delivering Efficient Energy
Description
Model:SMG-BL-202 HIGH BAY
Light Source:80 ～ 200W circular tube
Color Temp: 2700K ~ 6500K
Lumen Efficiency: 80-85 lm/W
Lifespan ≥ 100, 000 hrs
Warranty: 5 yrs
Lumen Maintenance: Above 80% after 80,000 hrs
IP Rate: IP54
Certification: ETL, SAA, CE, CCC, FCC, CB, C-TICK etc
Installlation Height: 4-8m
Package Size: 48*48*28CM
Specification
| Watt (W) | Power Efficiency (Im/W) | Initial Lumen (Im) | Effective Flux (Plm) | CRI (Ra) | Power Factor (PF) | Working Temperature (℉/℃) |
| 80 | 80 | 6,400 | 9600-11000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 100 | 80 | 8,000 | 9600-11000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 120 | 85 | 10,000 | 15500-18000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 150 | 85 | 12,500 | 19500-22000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 200 | 85 | 17,000 | 28000-30000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
Notes:
- Red is live, blue is null and green is ground;
- Different covers are available including tempered glass, pc and etc.;
- ErP certificate is granted by SGS as energy saving proof.
Features
- No burning or decay problems with high quality phosphor.
- 50% saving on lighting energy cost.
- Lower ownership cost / initial cost.
- No Glare or flicker, comfortable and healthy light distribution.
- Separated ballast with excellent heat dissipation.
- Die-casting aluminum fixture with spray surface finish.
- Additional safety hook on the lamp housing ensures the safety priority of the lamp.
- Polished aluminum reflector with adjustable optical beam angle.
Savings
Retrofit Suggestion and Estimated Savings by using Induction Hi Bay Lamp(Calculation is based on $0.28/kWh energy cost):
| Energy Saving Comparison | 10hrs/day | 16hrs/day | 24hrs/day | |
| MHL/HPS cost / month (400W) | $35.00 | $56.00 | $71.00/ | |
| SMGBL lamp cost / month (200W = above 400W) | $17.50 | $28.00 | $35.50 |
Tips:
- Save as much as LED lighting;
- Save more than 50% initial cost comparing with LED;
- Save maintenance cost by lowing the failure rate;
Application
Industrial plants, workshops, warehouses, airports, exhibition halls, supermarkets, and etc.

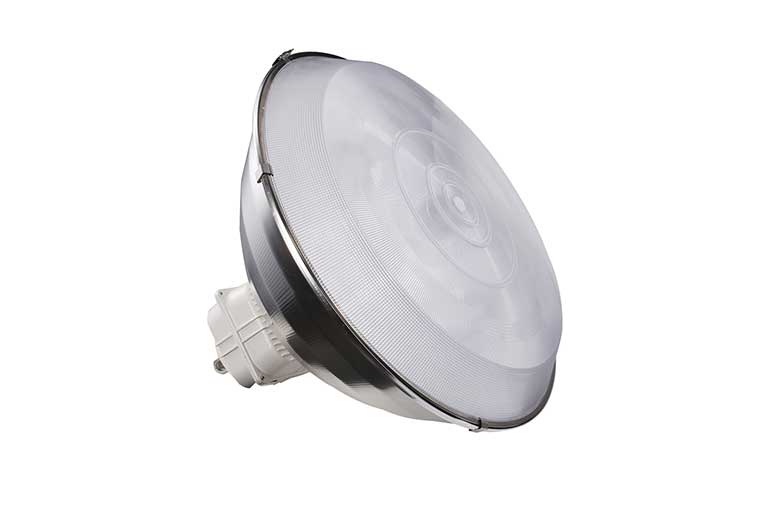

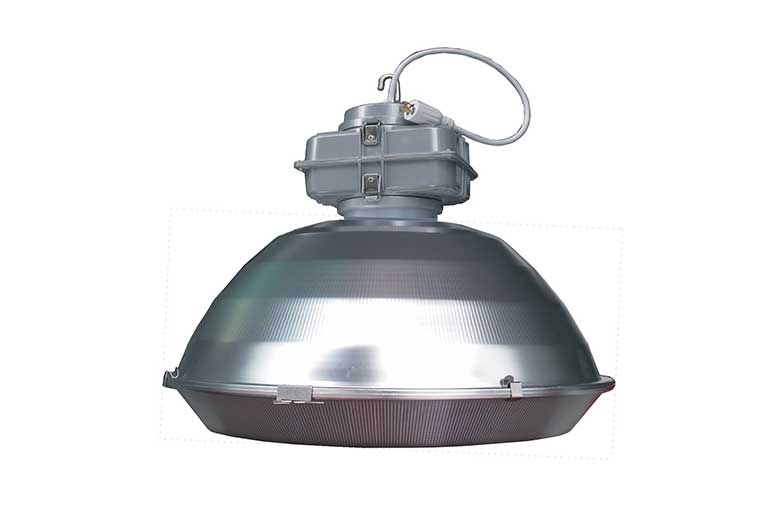

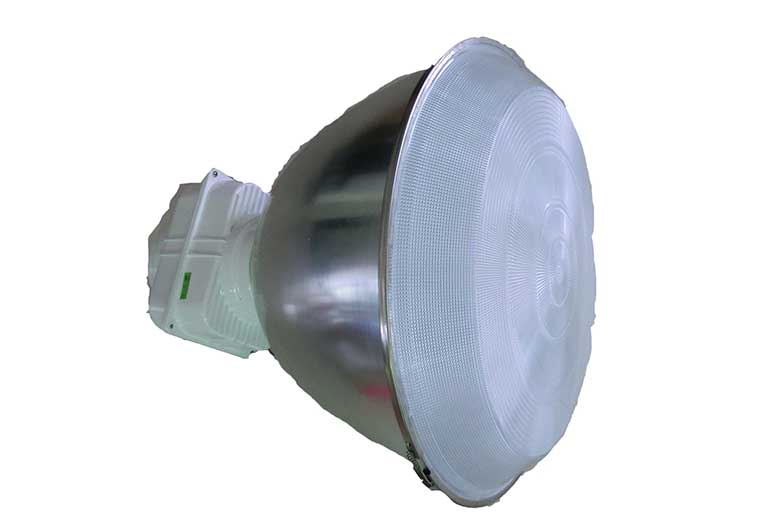

SMGBL® HIGH BAY LIGHT SMG-BL-204
Delivering Efficient Energy
Description
Model:SMG-BL-204 HIGH BAY
Light Source:80 ～ 300W circular tube
Color Temp: 2700K ~ 6500K
Lumen Efficiency: 80-85 lm/W
Lifespan ≥ 100, 000 hrs
Warranty: 5 yrs
Lumen Maintenance: Above 80% after 80,000 hrs
IP Rate: IP65
Certification: ETL, PSB, TUV, FCC, CB, CE, SAA
Installlation Height: 4-20m
Package Size: 80*80*55CM
Specification
| Watt (W) | Power Efficiency (Im/W) | Initial Lumen (Im) | Effective Flux (Plm) | CRI (Ra) | Power Factor (PF) | Working Temperature (℉/℃) |
| 80 | 80 | 6,400 | 9600-11000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 100 | 80 | 8,000 | 9600-11000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 120 | 85 | 10,000 | 15500-18000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 150 | 85 | 12,500 | 19500-22000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 200 | 85 | 17,000 | 28000-30000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 250 | 85 | 21,500 | 37000-38000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 300 | 85 | 25,000 | 43000-44000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
Notes:
- Red is live, blue is null and green is ground;
- Different covers are available including tempered glass, pc and etc.;
- CE-EMC, CE-LVD,Rhos , SAA, ETL certificate is granted by SGS as
energy saving proof.
Features
- No burning or decay problems with high quality phosphor.
- 50% saving on lighting energy cost.
- Lower ownership cost / initial cost.
- No Glare or flicker, comfortable and healthy light distribution.
- Separated ballast with excellent heat dissipation.
- Die-casting aluminum fixture with spray surface finish.
- Additional safety hook on the lamp housing ensures the safety priority of the lamp.
- Polished aluminum reflector with adjustable optical beam angle.
Savings
Retrofit Suggestion and Estimated Savings by using Induction Hi Bay Lamp(Calculation is based on $0.28/kWh energy cost):
| Energy Saving Comparison | 10hrs/day | 16hrs/day | 24hrs/day | |
| MHL/HPS cost / month (400W) | $35.00 | $56.00 | $71.00/ | |
| SMGBL lamp cost / month (200W = above 400W) | $17.50 | $28.00 | $35.50 |
Tips:
- Save as much as LED lighting;
- Save more than 50% initial cost comparing with LED;
- Save maintenance cost by lowing the failure rate;

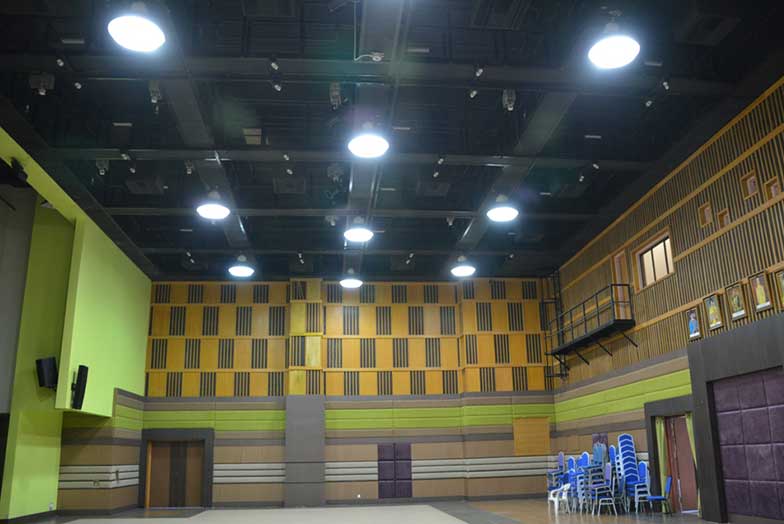

Application

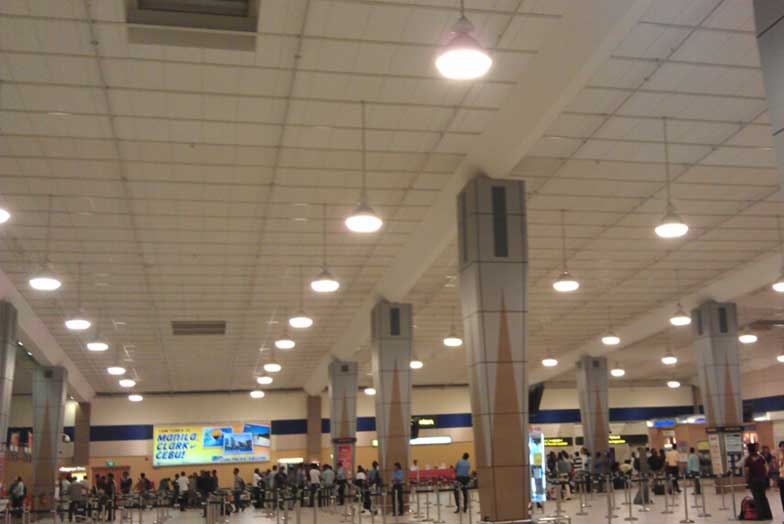

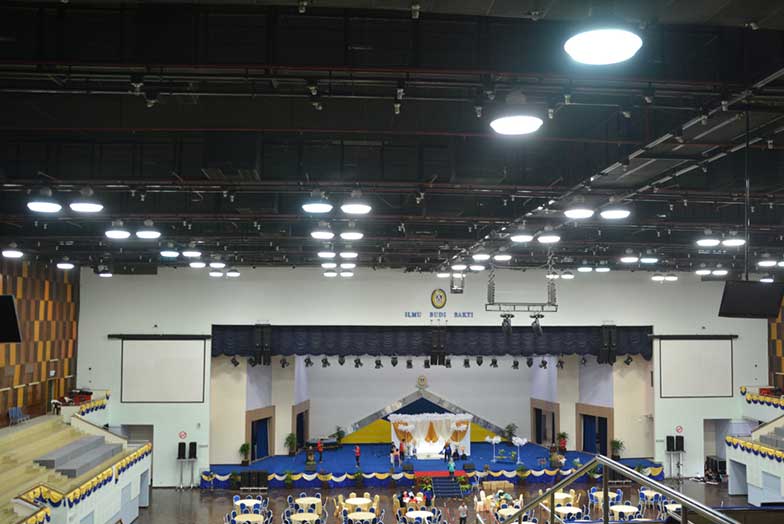

Industrial plants, workshops, warehouses, airports, exhibition halls, supermarkets, and etc.

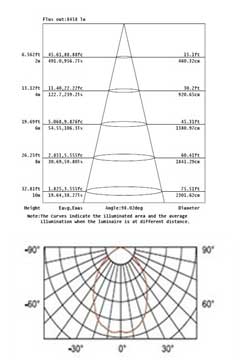

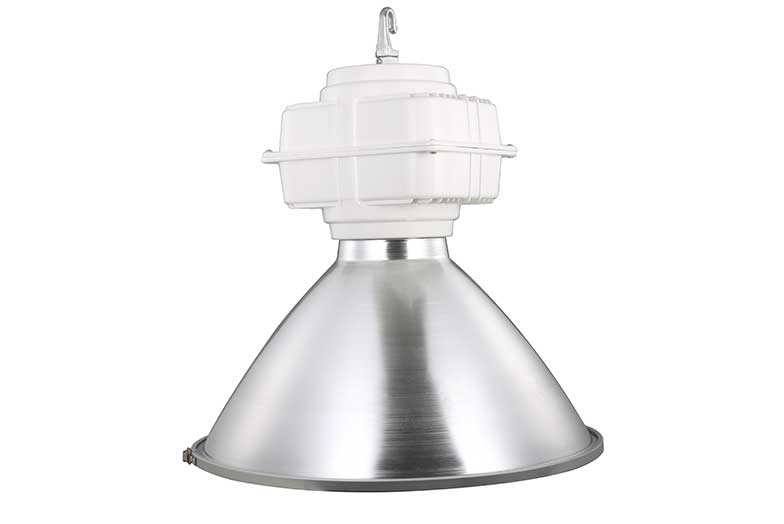

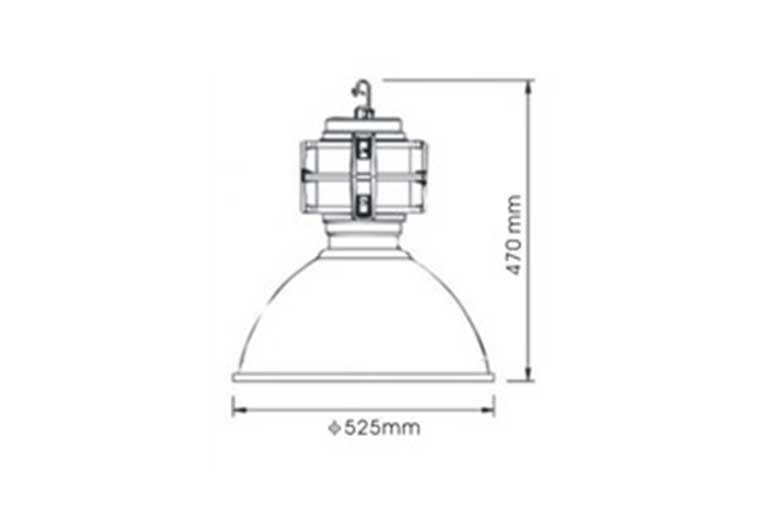

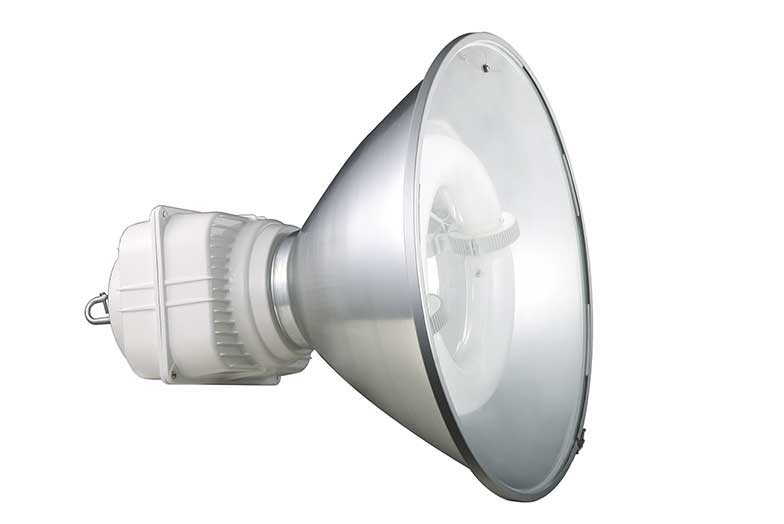

SMGBL® HIGH BAY LIGHT SMG-BL-209
Delivering Efficient Energy
Description
Model:SMG-BL-209 HIGH BAY
Light Source:80 ～ 200W circular tube
Color Temp: 2700K ~ 6500K
Lumen Efficiency: 80-85 lm/W
Lifespan ≥ 100, 000 hrs
Warranty: 5 yrs
Lumen Maintenance: Above 80% after 80,000 hrs
IP Rate: IP64
Certification: ETL, SAA, CE, CCC, FCC, CB, C-TICK etc
Installlation Height: 4-8m
Package Size: 51*51*56CM
Specification
| Watt (W) | Power Efficiency (Im/W) | Initial Lumen (Im) | Effective Flux (Plm) | CRI (Ra) | Power Factor (PF) | Working Temperature (℉/℃) |
| 80 | 80 | 6,400 | 9600-11000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 100 | 80 | 8,000 | 9600-11000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 120 | 85 | 10,000 | 15500-18000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 150 | 85 | 12,500 | 19500-22000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 200 | 85 | 17,000 | 28000-30000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
Notes:
- Red is live, blue is null and green is ground;
- Different covers are available including tempered glass, pc and etc.;
- ErP certificate is granted by SGS as energy saving proof.
Features
- No burning or decay problems with high quality phosphor.
- 50% saving on lighting energy cost.
- Lower ownership cost / initial cost.
- No Glare or flicker, comfortable and healthy light distribution.
- Separated ballast with excellent heat dissipation.
- Die-casting aluminum fixture with spray surface finish.
- Additional safety hook on the lamp housing ensures the safety priority of the lamp.
- Polished aluminum reflector with adjustable optical beam angle.
Savings
Retrofit Suggestion and Estimated Savings by using Induction Hi Bay Lamp(Calculation is based on $0.28/kWh energy cost):
| Energy Saving Comparison | 10hrs/day | 16hrs/day | 24hrs/day | |
| MHL/HPS cost / month (400W) | $35.00 | $56.00 | $71.00/ | |
| SMGBL lamp cost / month (200W = above 400W) | $17.50 | $28.00 | $35.50 |
Tips:
- Save as much as LED lighting;
- Save more than 50% initial cost comparing with LED;
- Save maintenance cost by lowing the failure rate;

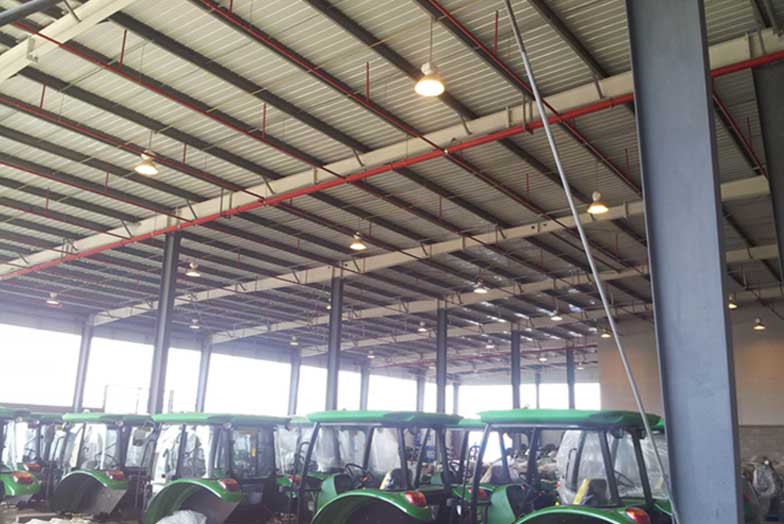

Application

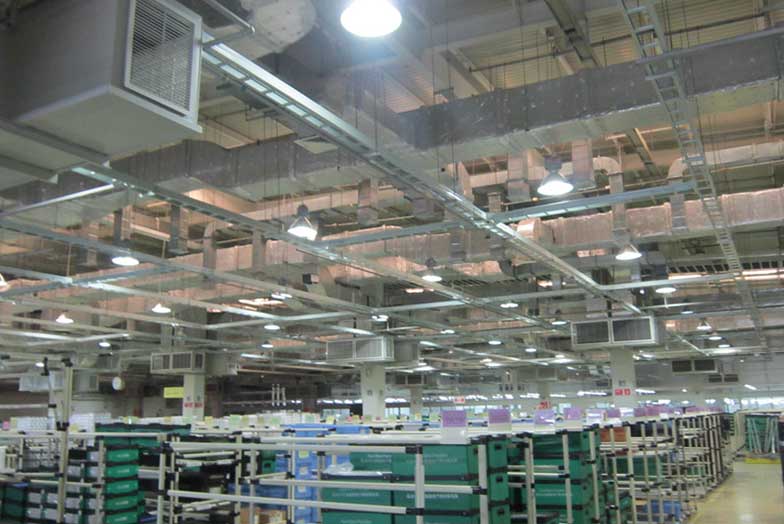

Industrial plants, workshops, warehouses, airports, exhibition halls, supermarkets, and etc.

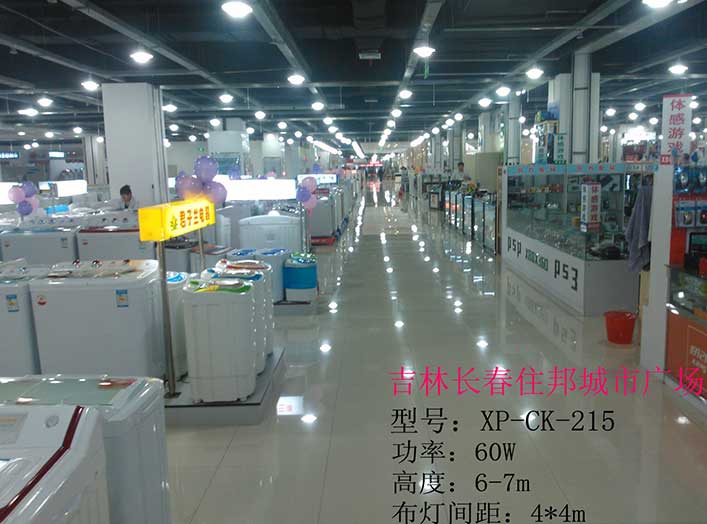

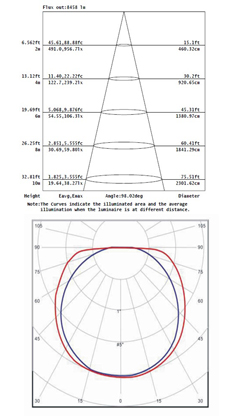

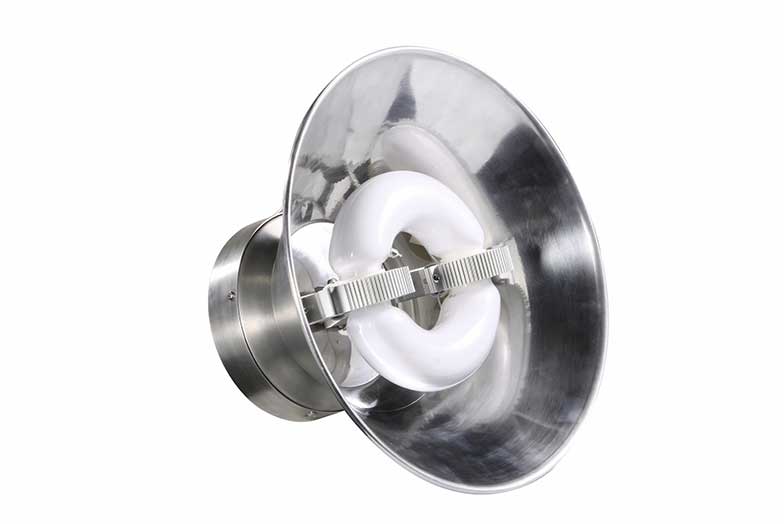

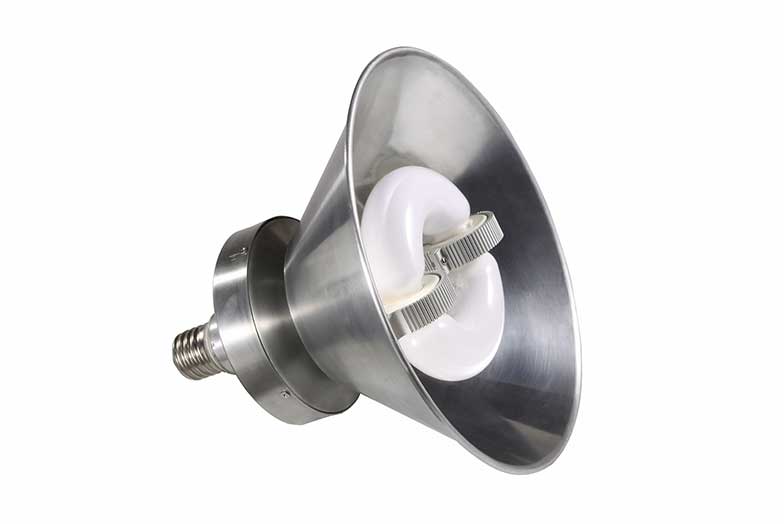

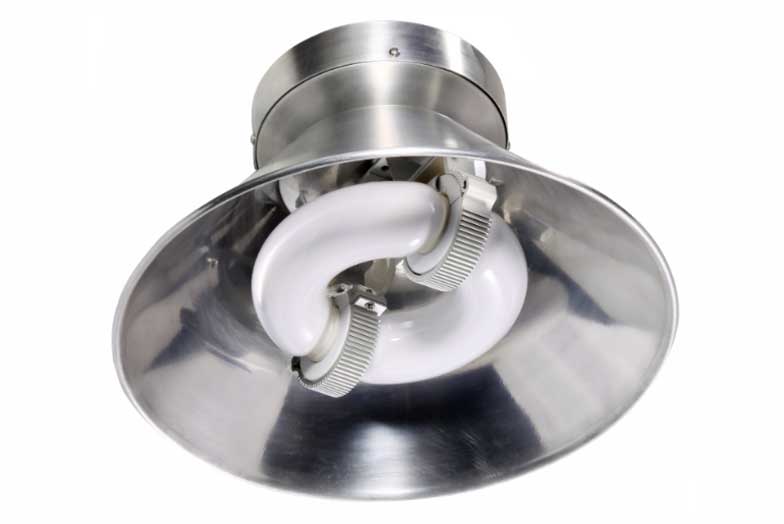

SMGBL® HIGH BAY LIGHT SMG-BL-215
Delivering Efficient Energy
Description
Model:SMG-BL-215 HIGH BAY
Light Source: 23-60W circular tube
Color Temp: 2700K ~ 6500K
Lumen Efficiency: 80-85 lm/W
Lifespan ≥ 100, 000 hrs
Warranty: 5 yrs
Lumen Maintenance: Above 80% after 80,000 hrs
IP Rate: IP54
Certification: ETL, SAA, CE, CCC, FCC, CB, C-TICK etc
Installlation Height: 4-6m
Package Size: 48*48*28CM
Specification
| Watt (W) | Power Efficiency (Im/W) | Initial Lumen (Im) | Effective Flux (Plm) | CRI (Ra) | Power Factor (PF) | Working Temperature (℉/℃) |
| 23W | 70 | 1,610 | 2415-2737 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 40W | 75 | 3,000 | 4500-5000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 50W | 75 | 3,500 | 5625-6375 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 60W | 75 | 12,500 | 19500-22000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
Notes:
- Red is live, blue is null and green is ground;
- Different covers are available including tempered glass, pc and etc.;
- ErP certificate is granted by SGS as energy saving proof.
Features
- No burning or decay problems with high quality phosphor.
- 50% saving on lighting energy cost.
- Lower ownership cost / initial cost.
- No Glare or flicker, comfortable and healthy light distribution.
- Separated ballast with excellent heat dissipation.
- Die-casting aluminum fixture with spray surface finish.
- Additional safety hook on the lamp housing ensures the safety priority of the lamp.
- Polished aluminum reflector with adjustable optical beam angle.
Savings
Retrofit Suggestion and Estimated Savings by using Induction Hi Bay Lamp(Calculation is based on $0.28/kWh energy cost):
| Energy Saving Comparison | 10hrs/day | 16hrs/day | 24hrs/day | |
| MHL/HPS cost / month (400W) | $35.00 | $56.00 | $71.00/ | |
| SMGBL lamp cost / month (40W = above 80W) | $17.50 | $28.00 | $35.50 |
Tips:
- Save as much as LED lighting;
- Save more than 50% initial cost comparing with LED;
- Save maintenance cost by lowing the failure rate;
Application

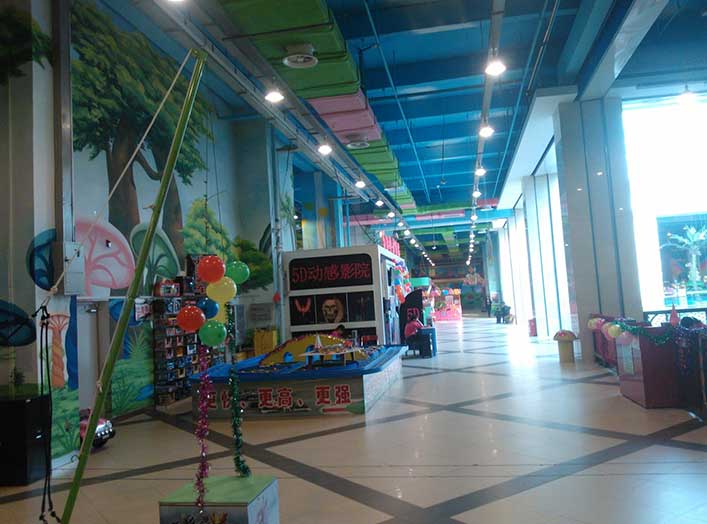

Industrial plants, workshops, warehouses, airports, exhibition halls, supermarkets, and etc.
