Solar Home Lighting
Integrated solar street led light
Specification

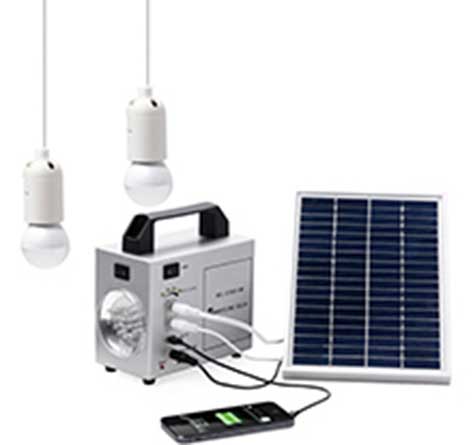

Model No : WYL-XT903-3W
Solar Panel Poly crystalline 5m cable,no bracket,3W 18V,x1
Power Box(7.4V/2AHLi-ion Battery: 7.4V/2AH,x1
PWM charge controller:5A/12V,x1
DC Output:12V,×3
USB Output: 5V 600mA max, ×1
Woring Time:7 hrs 2pcs LED at full battery
Charging Time:8hrs noramally, 6 hrs under good sunshine
LED bulb 1W 1W super bright LED,×2
cable Length: 5m/on off switch,×2
USB cable:10 in 1 USB cable for Mobile phone charge, ×1

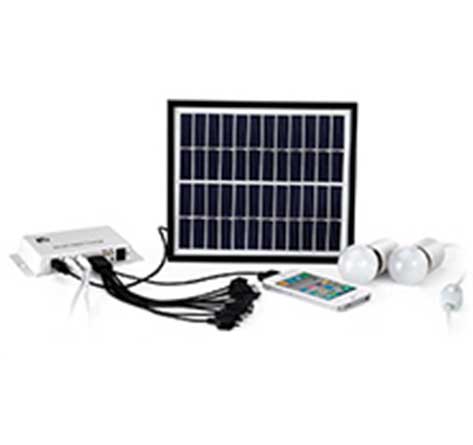

Model No : WYL-XT902-5W
Solar Panel Poly crystalline 5m cable,no bracket 5W 18V , x1
Power Box(12V/4AH)Lead acid battery: 12V/4AH,x1
PWM charge controller:5A/12V,x1
DC Output:12V,×3
USB Output: 5V 600mA max, ×1
Woring Time:10 hrs 2pcs LED at full battery
Charging Time:8hrs noramally, 6 hrs under good sunshine
LED bulb 1W 1W super bright LED,×2
cable Length: 5m/on off switch,×2
USB cable:10 in 1 USB cable for Mobile phone charge, ×1

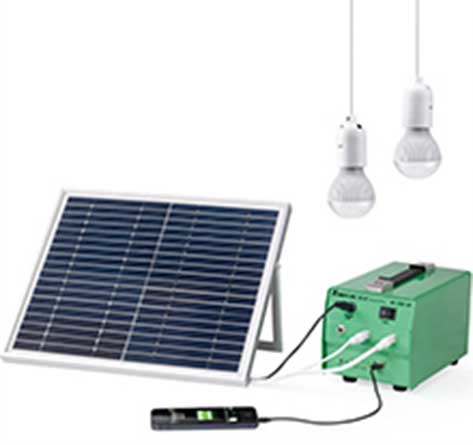

Model No : WYL-802-10W
Solar Panel Poly crystalline 5m cable, no bracket 10W 18V,x1
Power Box (7AH 12V)Lead acid battery: 7AH/12V, x1
PWM charge controller:5A/12V,x1
DC Output:12V,×3
USB Output: 5V 600mA max, ×1
Woring Time:12 hrs normally,15hrs at full battery
Charging Time:8hrs noramally, 6 hrs under good sunshine
LED bulb 3W and 1.5W each 1pc , in total 2,×2
cable Length: 5m/on off switch,×2
USB cable:10 in 1 USB cable, ×1
Model No : WYL-802A-10W
Solar Panel Poly crystalline 5m cable, no bracket 10W 18V,x1
Power Box (7AH 12V)Lead acid battery: 7AH/12V, x1
PWM charge controller:5A/12V,x1
DC Output:12V,×3
USB Output: 5V 600mA max, ×1
Woring Time:12 hrs normally,15hrs at full battery
Charging Time:8hrs noramally, 6 hrs under good sunshine
LED bulb 3W and 1.5W each 1pc , in total 2,×2
cable Length: 5m/on off switch,×2
USB cable:10 in 1 USB cable, ×1
Model No : WYL-802-20W
Solar Panel Poly crystalline 5m cable,no bracket 20W 18V, x1
Power BoxLead acid battery: 12AH/12V,x1
PWM charge controller:5A/12V,x1
DC Output:12V,×3
USB Output: 5V 600mA max, ×1
Woring Time:12 hrs normally,15hrs at full battery
Charging Time:8hrs noramally, 6 hrs under good sunshine
LED bulb 3W ,×2
cable Length: 5m/on off switch,×2
USB cable:10 in 1 USB cable, ×1
Model No : WYL-805-30W
Solar Panel Poly Crystallline 5m cable,no baracket 30W,×1
Power Box with LCD displayLead acid battery: 18AH/12V, ×1
PWM charge controller:10A/12V ,×1
Cigarette Lighter Socket:DC12V,×2
DC Output:12V,×6
USB Output: 5V 2A max,×2
Woring Time:12 hrs normally,15hrs at full battery
Charging Time:8hrs noramally, 6 hrs under good sunshine
LED bulb 3W 2 set, 5W 1 set,×3
cable Length: 5m/on off switch,×4
USB cable:10 in 1 USB cable, ×1
Model No : WYL-808-50W
Solar Panel Poly Crystallline 5m cable,no baracket 50W, ×1
Power Box with LCD displayLead acid battery: 33AH/12V,×1
PWM charge controller:10A/12V ,×1
Laptop Power Output:12V/3A-16V/3A-19V/3A,×1
DC Output:12V,×8
USB Output: 5V 2A max,x1
Woring Time:10 hrs normally,12hrs at full battery
Charging Time:8hrs noramally, 6 hrs under good sunshine
LED bulb 5W , ×4
cable Length: 5m/on off switch,×4
USB cable:10 in 1 USB cable, ×1
Model No : WYL-801-100W
Solar Panel Poly Crystallline 5m cable,no bracket 100W, ×1
Power Box with LCD displayLead acid battery: 55AH/12V,x 1
PWM charge controller:20A/12V ,x 1
Inverter :Pure Sine Wave 12V/300W
AC output : 220V/110V 50/60Hz
Cigarette Lighter Socket : DC12V,×2
DC Output:12V,×6
USB Output:5V ,×1
Woring Time:6 hrs normally,8hrs at full battery with AC load
Charging Time:8hrs noramally, 6 hrs under good sunshine
LED bulb 5W , ×4
cable Length: 5m/on off switch,×4
USB cable:10 in 1 USB cable, ×1

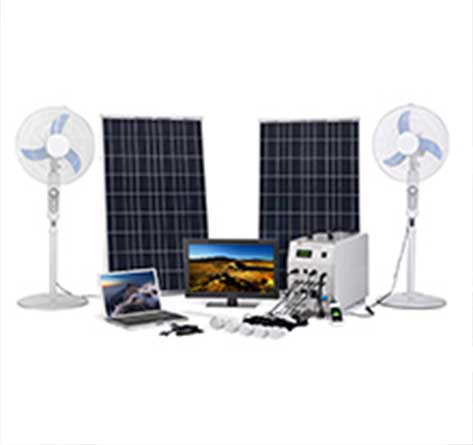

Model No : WYL-XT807-200W
Solar Panel Poly Crystallline 10m cable,no bracket 100W, ×2
Power Box with LCD displayLead acid battery: 120AH/12V, x 1
PWM charge controller:30A/12V, x1
Inverter :Pure Sine Wave 12V/350W
AC output : 220V/110V 50/60Hz
Cigarette Lighter Socket : DC12V,×3
DC Output:12V,×6
USB Output:5V ,×1
Woring Time:6 hrs normally,8hrs at full battery with AC load
Charging Time:8hrs noramally, 6 hrs under good sunshine
LED bulb 5W , ×6
cable Length: 5m/on off switch,×6
USB cable:10 in 1 USB cable, ×1
Model No : WYL-XT807-200W
Solar Panel Poly Crystallline 10m cable,no bracket 150W, ×2
Power Box with LCD displayLead acid battery: 150AH/12V, x 1
PWM charge controller:30A/12V, x1
Inverter :Pure Sine Wave 12V/300W
AC output : 220V/110V 50/60Hz
Cigarette Lighter Socket : DC12V,×3
DC Output:12V,×6
USB Output:5V ,×1
LED bulb 5W , ×6
cable Length: 5m/with switch ,×6
USB cable:10 in 1 USB cable, ×1
Model No : WYL-XT807-500W
Solar Panel Poly Crystallline 10m cable,no bracket 250W, ×2
Power Box with LCD displayLead acid battery: 160AH/24V,x1
PWM charge controller:30A/12V, x1
Inverter :Pure Sine Wave 12V/300W
AC output : 220V/110V 50/60Hz
Cigarette Lighter Socket : DC12V,×3
DC Output:12V,×6
USB Output:5V ,×1
LED bulb 5W , ×6
cable Length: 5m/with switch ,×6
USB cable:10 in 1 USB cable, ×1
Model No : WYL-XT901-1000W
Solar Panel: Poly Crystalline Silicon 250W36V, cell efficiency >15%, life span > 20-years,4pcs.
Mounting bracket: Floor style, material angle iron, anti-rust. 1 set.
Maintenance-free sealed lead-acid battery team: 120AH48V (Grouped by individual battery 120AH2V),Interconnected copper bar provided, cycle time is 500 under + 25℃. 1 group (24pcs).
Battery bracket: Floor style, material angle iron, anti-rust. 1 set.
Controller and inverter two in one:
PWM charging controller, 50A24V with over-charged, dis-charged, over-load, short circuit, protection for opposite connection with +/- pole.
Pure wine inverter 1000W24V, Pm=1000W,output AC 110V/220V 50/60Hz,output voltage error range:±3%,frequency error range: ±1%.Wave form distortion range:±3%. Transfer efficiency>85%, with lightning protection. 1 set.
Junction box: Under standard sunshine, it will be full charged within 8-10 hours. Can supply power 8-10 hours for 800W load.
Cables( including the cables for battery series and parallel ),considered the length between solar panel and battery controller inverter 30m, electric cable 20m for 4mm2,40m for 6mm2, 3m for 10mm2.1set.
Charging Time and Working Time: Under standard sunshine, it will be full charged within 8-10 hours. Can supply power 8-10 hours for 800W load.
Model No : WYL-XT901-2000W
Solar Panel: Poly Crystalline Silicon 250W48V, cell efficiency >15%, life span > 20-years. 8pcs.
Mounting bracket: Floor style, material angle iron, anti-rust. 1 set.
Maintenance-free sealed lead-acid battery team: 240AH48V(Grouped by individual battery 240AH2V),Interconnected copper bar provided, cycle time is 500 under + 25℃. 1 group (24pcs).
Battery bracket: Floor style, material angle iron, anti-rust. 1 set.
Controller and inverter two in one:
PWM charging controller, 100A24V with over-charged, dis-charged, over-load, short circuit, protection for opposite connection with +/- pole.
Pure wine inverter 2000W24V, Pm=1000W,output AC 110V/220V 50/60Hz,output voltage error range:±3%,frequency error range: ±1%.Wave form distortion range:±3%. Transfer efficiency>85%, with lightning protection. 1 set.
Junction box: 8 input, 2 output. 2pc.
Cables( including the cables for battery series and parallel ),considered the length between solar panel and battery controller inverter 30m, electric cable 40m for 4mm2,120m for 6mm2, 3m for 10mm2. 1 set.
Charging Time and Working Time: Under standard sunshine, it will be full charged within 8-10 hours. Can supply power 8-10 hours for 1600W load.
Model No : WYL-XT901-3000W
Solar Panel: Poly Crystalline Silicon 250W36V, cell efficiency >15%, life span > 20-years. 12pcs.
Mounting bracket: Floor style, material angle iron, anti-rust. 1 set.
Maintenance-free sealed lead-acid battery team: 180AH96V, (Grouped by individual battery 180AH2V)Interconnected copper bar provided, Cycle time is 500 under + 25℃. 1 group (48pcs).
Battery bracket: Floor style, material angle iron, anti-rust. 1 set.
Controller and inverter two in one:
PWM charging controller, 150A24V with over-charged, dis-charged, over-load, short circuit, protection for opposite connection with +/- pole.
Pure wine inverter 3000W24V, Pm=3000W,output AC 110V/220V 50/60Hz,output voltage error range:±3%,frequency error range: ±1%.Wave form distortion range:±3%. Transfer efficiency>85%, with lightning protection. 1 set.
Junction box: 8 input, 2 output. 3pcs.
Cables( including the cables for battery series and parallel ),considered the length between solar panel and battery controller inverter 30m, electric cable 60m for 4mm2, 180m for 6mm2, 3m for 16 mm2. 1 set.
Charging Time and Working Time: Under standard sunshine, it will be full charged within 8-10 hours. Can supply power 8-10 hours for 2400W load.
Model No : WYL-XT901-4000W
Solar Panel: Poly Crystalline Silicon 250W36V, cell efficiency >15%, life span > 20-years. 16pcs.
Mounting bracket: Floor style, material angle iron, anti-rust. 1 set.
Maintenance-free sealed lead-acid battery team: 800AH48V, (Grouped by individual battery 800AH2V) Interconnected copper bar provided, Cycle time is 500 under + 25℃. 1 group(24pcs).
Battery bracket: Floor style, material angle iron, anti-rust. 1 set.
Controller and inverter two in one:
PWM charging controller, 100A48V with over-charged, dis-charged, over-load, short circuit, protection for opposite connection with +/- pole.
Pure wine inverter 4000W24V, Pm=4000W,output AC 110V/220V 50/60Hz,output voltage error range:±3%,frequency error range: ±1%.Wave form distortion range:±3%. Transfer efficiency>85%, with lightning protection. 1 set.
Junction box: 8 input, 2 output. 2pcs.
Cables( including the cables for battery series and parallel ),considered the length between solar panel and battery controller inverter 30m, electric cable 100m for 4mm2, 120m for 6mm2, 3m for 10 mm2. 1 set.
Charging Time and Working Time: Under standard sunshine, it will be full charged within 8-10 hours. Can supply power 8-10 hours for 3200W load.
Model No : WYL-XT901-5000W
Solar Panel: Poly Crystalline Silicon 250W36V, cell efficiency >15%, life span > 20-years. 20pcs.
Mounting bracket: Floor style, material angle iron, anti-rust. 1 set.
Maintenance-free sealed lead-acid battery team: 600AH48V, (Grouped by individual battery 600AH2V) Interconnected copper bar provided, Cycle time is 500 under + 25℃.1 group(24pcs).
Battery bracket: Floor style, material angle iron, anti-rust. 1 set.
Controller and inverter two in one:
PWM charging controller, 150A48V with over-charged, dis-charged, over-load, short circuit, protection for opposite connection with +/- pole.
Pure wine inverter 5000W24V, Pm=5000W,output AC 110V/220V 50/60Hz,output voltage error range:±3%,frequency error range: ±1%.Wave form distortion range:±3%. Transfer efficiency>85%, with lightning protection. 1 set.
Junction box: 8 input, 2 output. 3pcs.
Cables( including the cables for battery series and parallel ),considered the length between solar panel and battery controller inverter 30m, electric cable 150m for 4mm2, 180m for 6mm2, 3m for 16 mm2. 1 set.
Charging Time and Working Time: Under standard sunshine, it will be full charged within 8-10 hours. Can supply power 8-10 hours for 4000W load.
