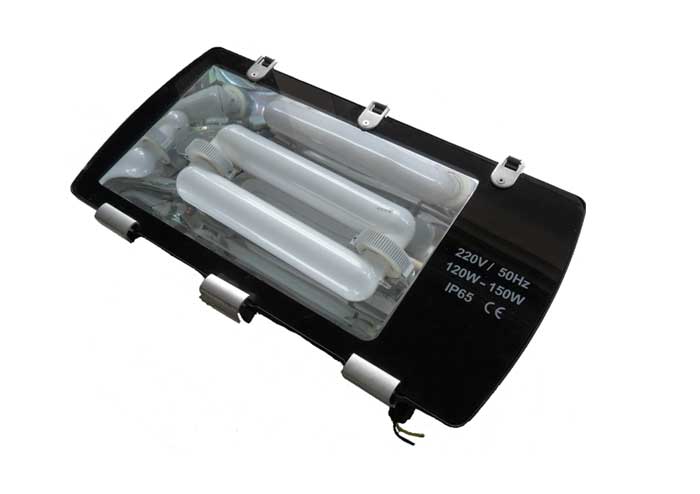

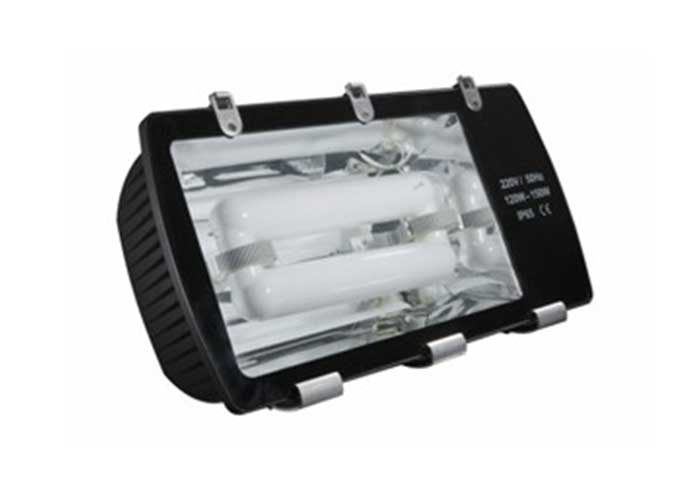

SMGBL® TUNNEL LIGHT SMG-BL-413
Delivering Efficient Energy
Description
Model:SMG-BL-413 Tunel light
Light Source: 80 ～ 250W rectangle tube
Color Temp: 2700K ~ 6500K
Lumen Efficiency: 80-85 lm/W
Lifespan ≥ 100, 000 hrs
Warranty: 5 yrs
Lumen Maintenance: Above 80% after 80,000 hrs
IP Rate: IP65
Certification: ETL, SAA, CE, CCC, FCC, CB, C-TICK etc
Installlation Height: 4-15m

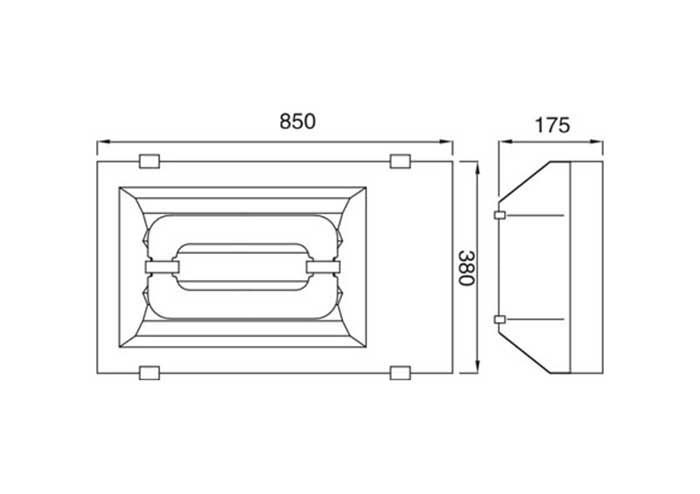

Fixtures Size: 650*380*175MM (80-150W)
850*380*175 mm (150-300)
Specification
| Watt (W) | Power Efficiency (Im/W) | Initial Lumen (Im) | Effective Flux (Plm) | CRI (Ra) | Power Factor (PF) | Working Temperature (℉/℃) |
| 80 | 80 | 6,400 | 9600-11000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 100 | 80 | 8,000 | 9600-11000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 120 | 85 | 9,600 | 15500-18000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 150 | 85 | 12,750 | 19500-22000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 200 | 85 | 17,000 | 28000-30000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
Notes:
- Red is live, blue is null and green is ground;
- Different covers are available including tempered glass, pc and etc.;
- CE,FCC,SAA,ETL,CCC certificate is granted by SGS as energy saving proof.
Features
- The fixture body is made of high pressure die-casting Aluminum.
- High-intensity, high temperature resistant cambered tempered glass.
- Once shaping high-purity aluminum reflector provides optimum light distribution.
- Electrostatic spray surface treatment technology.
- Match rectangular induction lamp with its excellent Color Rendering Index and light efficiency, long life span, no flicker and energy saving, wide range of color temperature and soft light ,stable light output.
Savings
Retrofit Suggestion and Estimated Savings by using Induction Hi Bay Lamp(Calculation is based on $0.28/kWh energy cost):
| Energy Saving Comparison | 10hrs/day | 16hrs/day | 24hrs/day | |
| MHL/HPS cost / month (400W) | $35.00 | $56.00 | $71.00 | |
| SMGBL lamp cost / month (200W = above 400W) | $17.50 | $28.00 | $35.50 |
Tips:
- Save as much as LED lighting;
- Save more than 50% initial cost comparing with LED;
- Save maintenance cost by lowing the failure rate;
Application

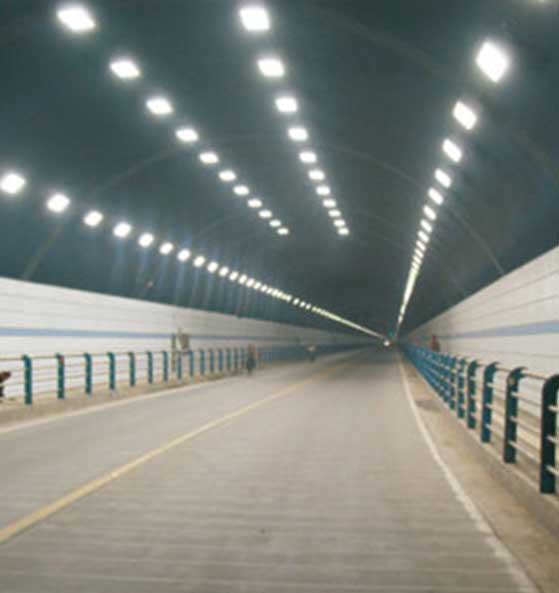

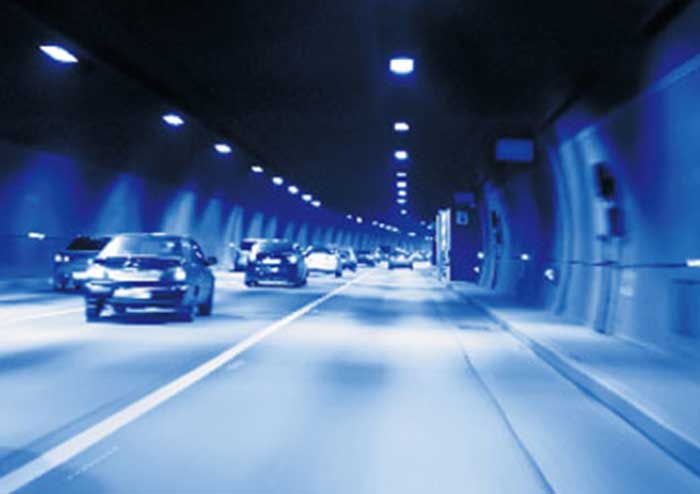

Roads, streets, highways, viaducts, bridges and other lighting area.

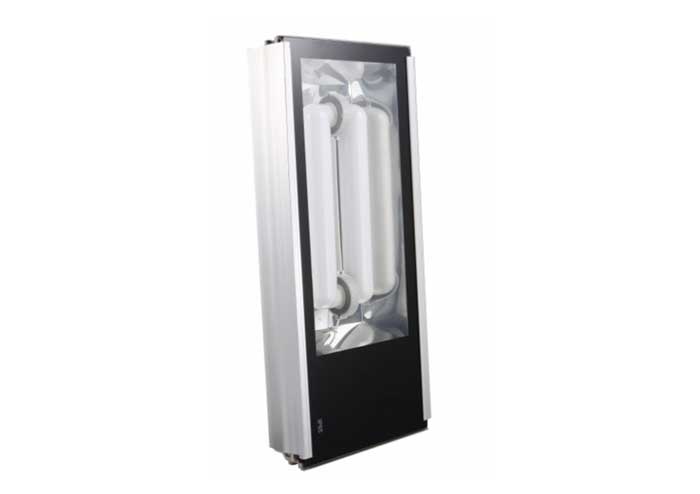

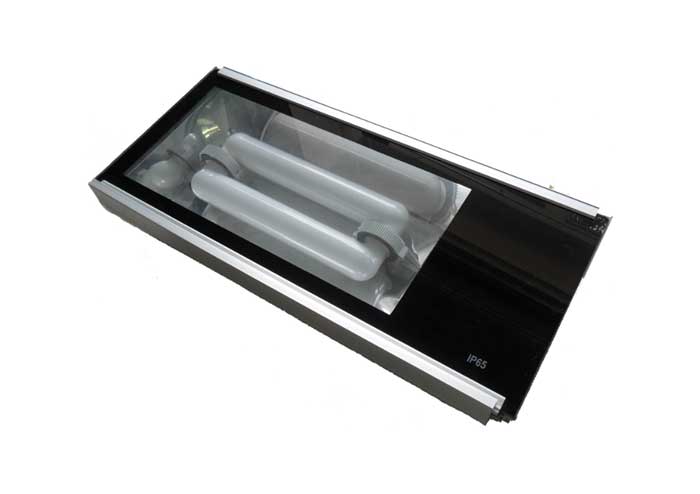

SMGBL® TUNNEL LIGHT SMG-BL-414
Delivering Efficient Energy
Description
Model: SMG-BL-414 STREET LIGHT
Light Source: 80 ～ 250W rectangle tube
Color Temp: 2700K ~ 6500K
Lumen Efficiency: 80-85 lm/W
Lifespan ≥ 100, 000 hrs
Warranty: 5 yrs
Lumen Maintenance: Above 80% after 80,000 hrs
IP Rate: IP65
Certification: ETL, SAA, CE, CCC, FCC, CB, C-TICK etc
Installlation Height: 4-15m

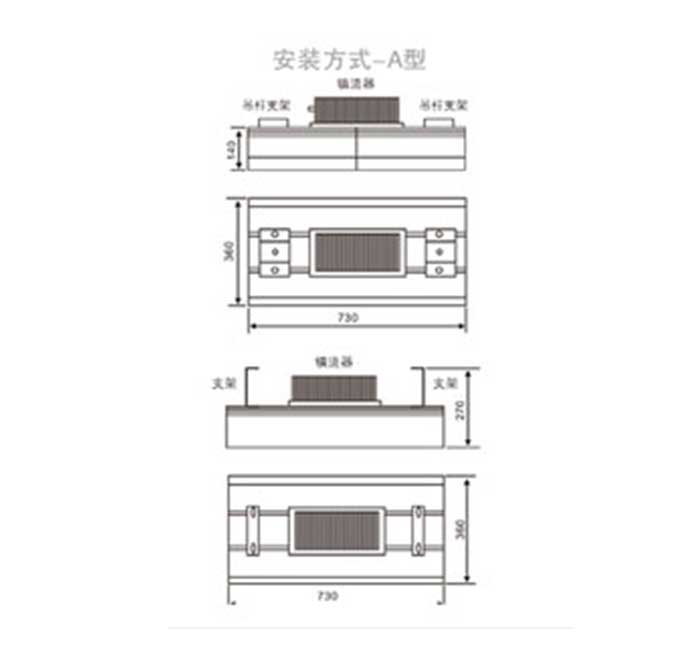

Fixtures Size: 730x360x270MM
Specification
| Watt (W) | Power Efficiency (Im/W) | Initial Lumen (Im) | Effective Flux (Plm) | CRI (Ra) | Power Factor (PF) | Working Temperature (℉/℃) |
| 80 | 80 | 6,400 | 9600-11000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 100 | 80 | 8,000 | 9600-11000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 120 | 85 | 9,600 | 15500-18000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 150 | 85 | 12,750 | 19500-22000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 200 | 85 | 17,000 | 28000-30000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
Notes:
- Red is live, blue is null and green is ground;
- Different covers are available including tempered glass, pc and etc.;
- CE,FCC,SAA,ETL,CCC certificate is granted by SGS as energy saving proof.
Features
- The fixture body is made of high pressure die-casting Aluminum.
- High-intensity, high temperature resistant cambered tempered glass.
- Once shaping high-purity aluminum reflector provides optimum light distribution.
- Electrostatic spray surface treatment technology.
- Match rectangular induction lamp with its excellent Color Rendering Index and light efficiency, long life span, no flicker and energy saving, wide range of color temperature and soft light ,stable light output.
Savings
Retrofit Suggestion and Estimated Savings by using Induction Hi Bay Lamp (Calculation is based on $0.28/kWh energy cost):
| Energy Saving Comparison | 10hrs/day | 16hrs/day | 24hrs/day | |
| MHL/HPS cost / month (400W) | $35.00 | $56.00 | $71.00/ | |
| SMGBL lamp cost / month (200W = above 400W) | $17.50 | $28.00 | $35.50 |
Tips:
- Save as much as LED lighting;
- Save more than 50% initial cost comparing with LED;
- Save maintenance cost by lowing the failure rate;
Application
Roads, streets, highways,viaducts,bridges and other lighting area.
