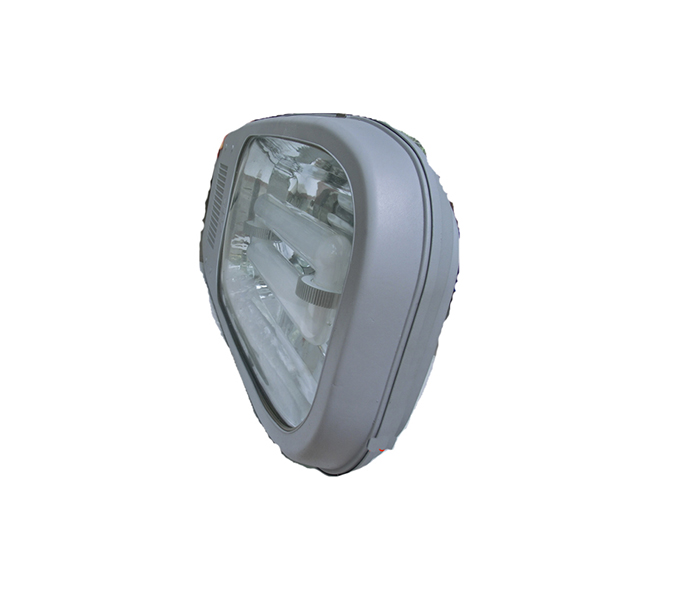

SMGBL® STREET LIGHT SMG-BL-301
Delivering Efficient Energy
Description
Model: SMG-BL-301 STREET LIGHT
Light Source: 80 ～ 200W rectangle tube
Color Temp: 2700K ~ 6500K
Lumen Efficiency: 80-85 lm/W
Lifespan ≥ 100, 000 hrs
Warranty: 5 yrs
Lumen Maintenance: Above 80% after 80,000 hrs
IP Rate: IP65
Certification: ETL,SAA,CE,CCC,FCC,CB,C-TICK etc
Installlation Height: 4-15m
Package Size: 106*46*26CM
Specification
| Watt (W) | Power Efficiency (Im/W) | Initial Lumen (Im) | Effective Flux (Plm) | CRI (Ra) | Power Factor (PF) | Working Temperature (℉/℃) |
| 80 | 80 | 6,400 | 9600-11000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 100 | 80 | 8,000 | 9600-11000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 120 | 85 | 9,600 | 15500-18000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 150 | 85 | 12,750 | 19500-22000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 200 | 85 | 17,000 | 28000-30000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
Notes:
- Red is live, blue is null and green is ground;
- Different covers are available including tempered glass, pc and etc.;
- ErP certificate is granted by SGS as energy saving proof.
Features
- The fixture body is made of high pressure die-casting Aluminum.
- High-intensity, high temperature resistant cambered tempered glass.
- Once shaping high-purity aluminum reflector provides optimum light distribution.
- Electrostatic spray surface treatment technology.
- Match rectangular induction lamp with its excellent Color Rendering Index and light efficiency, long life span, no flicker and energy saving, wide range of color temperature and soft light ,stable light output.
Savings
| Energy Saving Comparison | 10hrs/day | 16hrs/day | 24hrs/day | |
| MHL/HPS cost / month (400W) | $35.00 | $56.00 | $71.00/ | |
| SMGBL lamp cost / month (200W = above 400W) | $17.50 | $28.00 | $35.50 |
Tips:
- Save as much as LED lighting;
- Save more than 50% initial cost comparing with LED;
- Save maintenance cost by lowing the failure rate;
Application

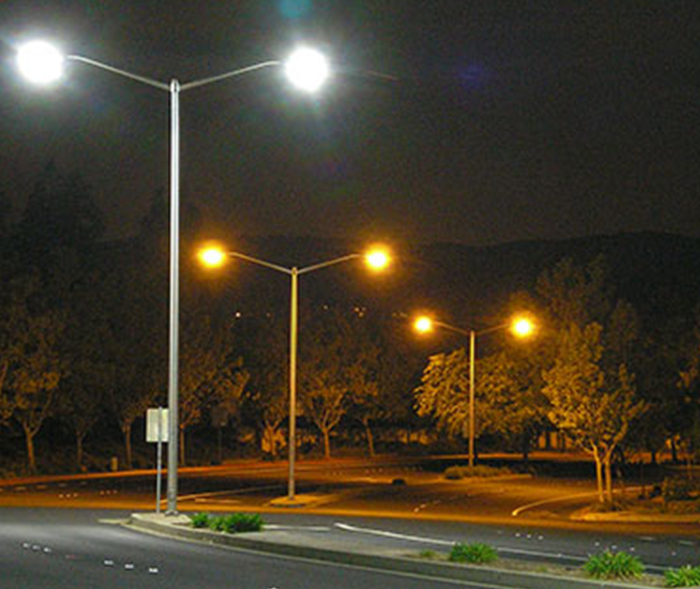

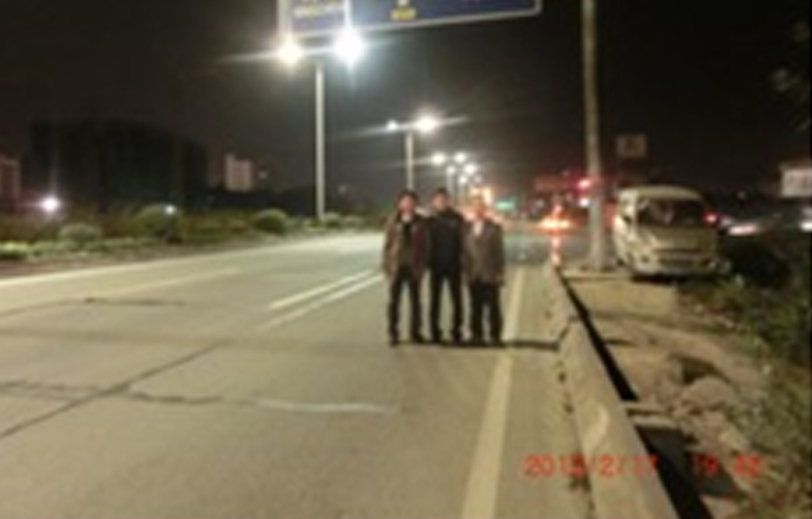

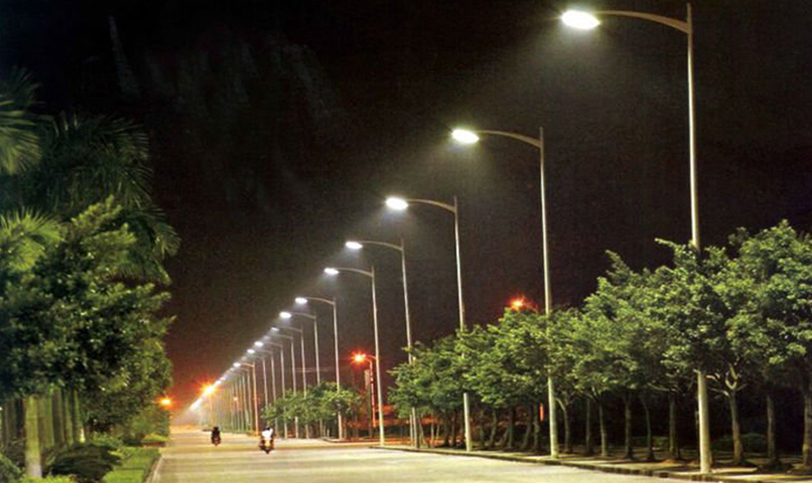

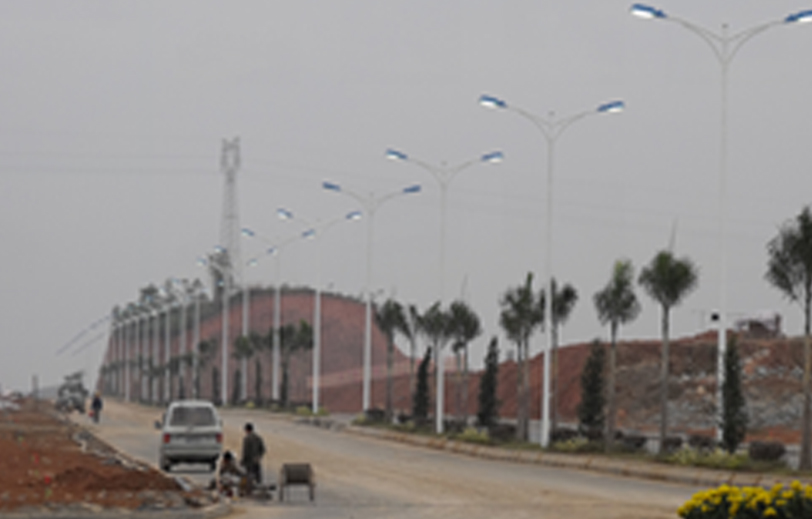

Roads, streets, highways,viaducts,bridges and other lighting area.

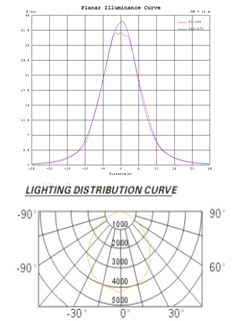

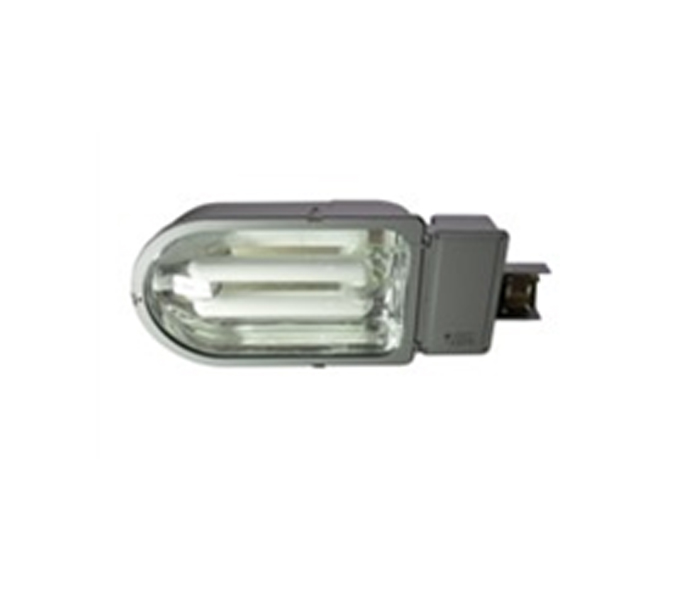

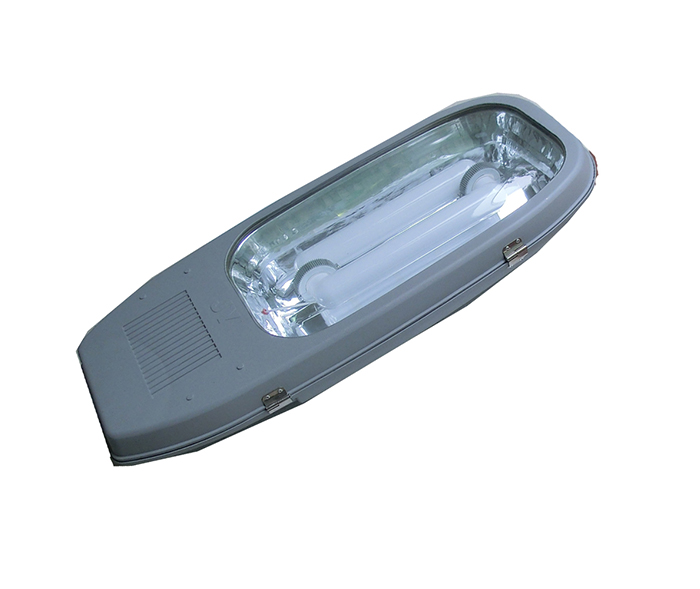

SMGBL® STREET LIGHT SMG-BL-306
Delivering Efficient Energy
Description

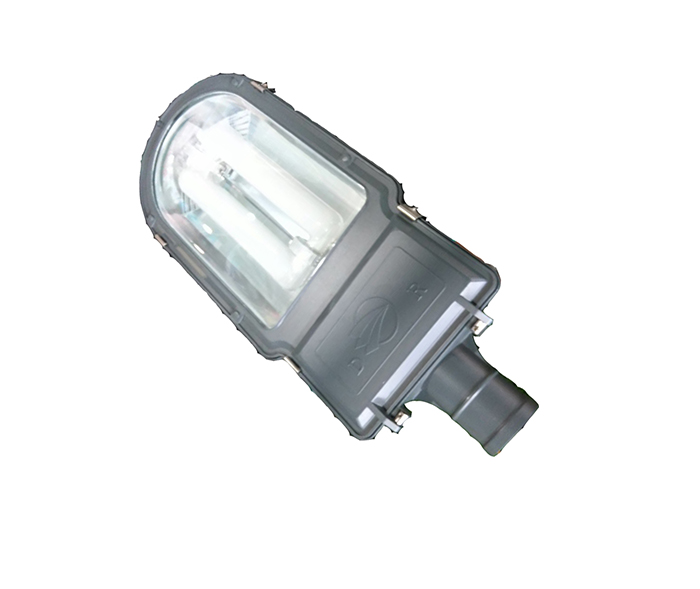

Model: SMG-BL-306 STREET LIGHT
Light Source: 80 ～ 250W rectangle tube
Color Temp: 2700K ~ 6500K
Lumen Efficiency: 80-85 lm/W
Lifespan ≥ 100, 000 hrs
Warranty: 5 yrs
Lumen Maintenance: Above 80% after 80,000 hrs
IP Rate: IP65
Certification: ETL,SAA,CE,CCC,FCC,CB,C-TICK etc
Installlation Height: 4-15m

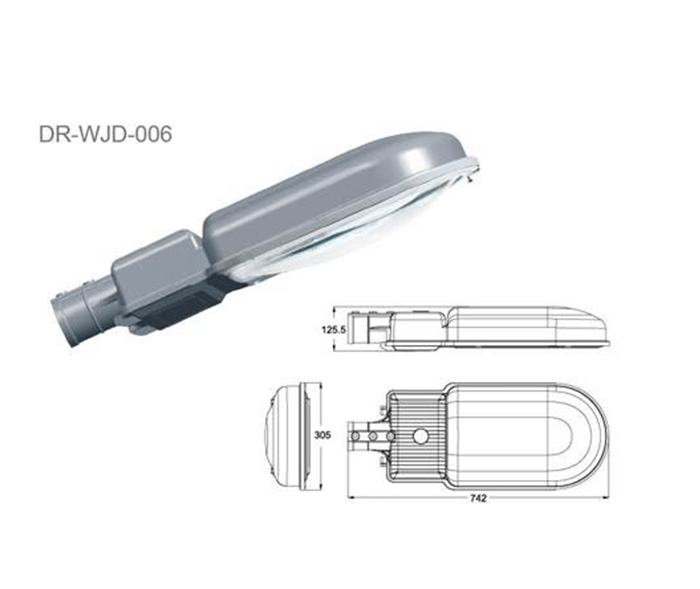

Fixtures Size: 742*305*125MM (60-150W)
918*380*148MM (150-300W)
Specification
| Watt (W) | Power Efficiency (Im/W) | Initial Lumen (Im) | Effective Flux (Plm) | CRI (Ra) | Power Factor (PF) | Working Temperature (℉/℃) |
| 80 | 80 | 6,400 | 9600-11000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 100 | 80 | 8,000 | 9600-11000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 120 | 85 | 9,600 | 15500-18000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 150 | 85 | 12,750 | 19500-22000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 200 | 85 | 17,000 | 28000-30000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 250 | 85 | 21,250 | 37000-38000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
Notes:
- Red is live, blue is null and green is ground;
- Different covers are available including tempered glass, pc and etc.;
- ErP certificate is granted by SGS as energy saving proof.
Features
- The fixture body is made of high pressure die-casting Aluminum.
- High-intensity, high temperature resistant cambered tempered glass.
- Once shaping high-purity aluminum reflector provides optimum light distribution.
- Electrostatic spray surface treatment technology.
- Match rectangular induction lamp with its excellent Color Rendering Index and light efficiency, long life span, no flicker and energy saving, wide range of color temperature and soft light ,stable light output.
Savings
Retrofit Suggestion and Estimated Savings by using Induction Hi Bay Lamp (Calculation is based on $0.28/kWh energy cost):
| Energy Saving Comparison | 10hrs/day | 16hrs/day | 24hrs/day | |
| MHL/HPS cost / month (400W) | $35.00 | $56.00 | $71.00/ | |
| SMGBL lamp cost / month (200W = above 400W) | $17.50 | $28.00 | $35.50 |
Tips:
- Save as much as LED lighting;
- Save more than 50% initial cost comparing with LED;
- Save maintenance cost by lowing the failure rate;
Application

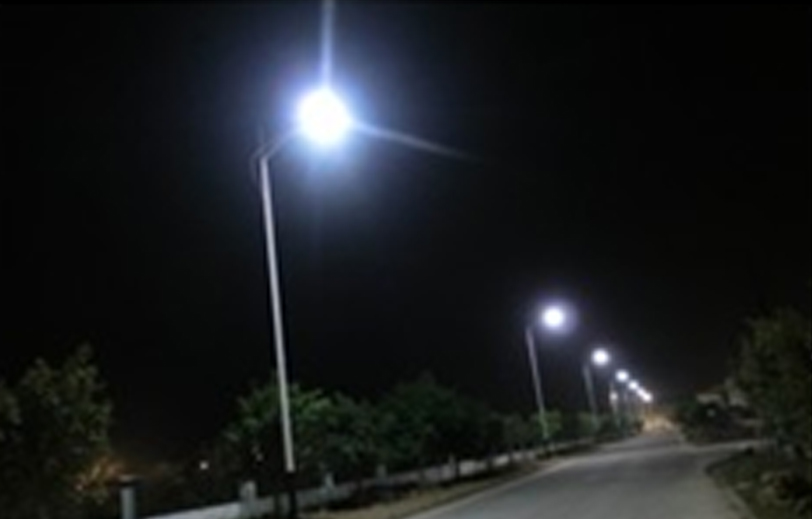

Roads, streets, highways,viaducts,bridges and other lighting area.

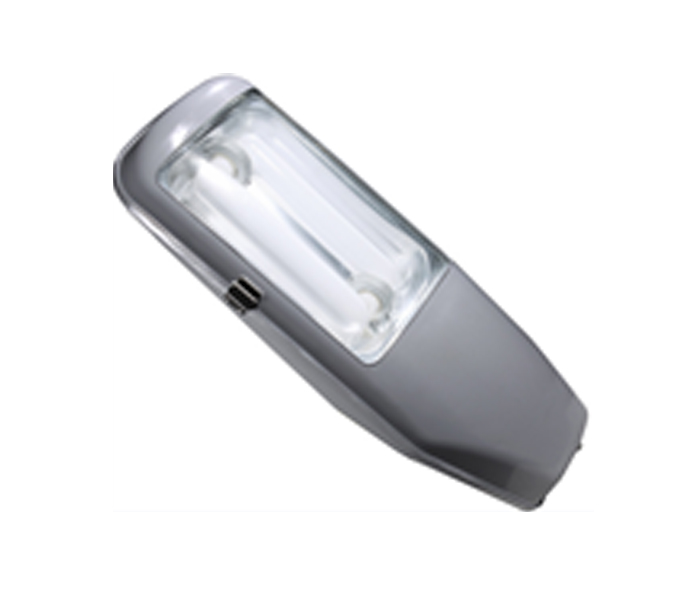

SMGBL® STREET LIGHT SMG-BL-312
Delivering Efficient Energy
Description

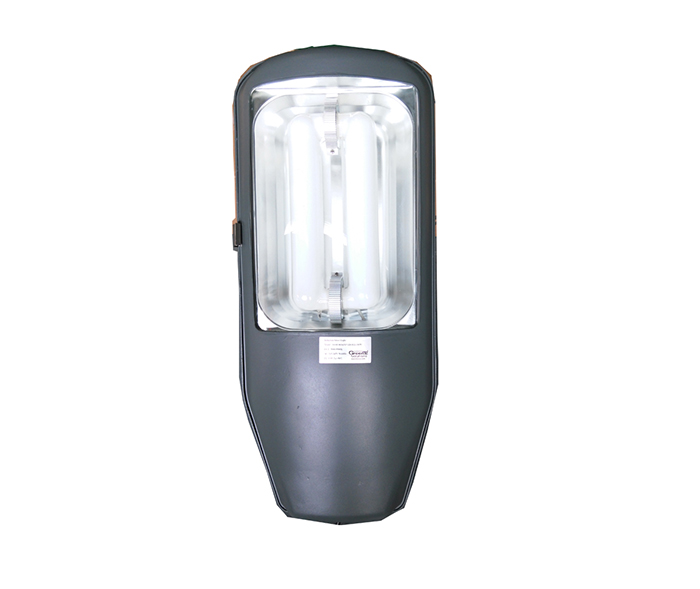

Model: SMG-BL-312 STREET LIGHT
Light Source: 80 ～ 150W rectangle tube
Color Temp: 2700K ~ 6500K
Lumen Efficiency: 80-85 lm/W
Lifespan ≥ 100, 000 hrs
Warranty: 6 yrs
Lumen Maintenance: Above 80% after 80,000 hrs
IP Rate: IP65
Certification: ETL,SAA,CE,CCC,FCC,CB,C-TICK etc
Installlation Height: 4-15m
Package Size: 814*34*24CM
Specification
| Watt (W) | Power Efficiency (Im/W) | Initial Lumen (Im) | Effective Flux (Plm) | CRI (Ra) | Power Factor (PF) | Working Temperature (℉/℃) |
| 80 | 80 | 6,400 | 9600-11000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 100 | 80 | 8,000 | 9600-11000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 120 | 85 | 9,600 | 15500-18000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 150 | 85 | 12,750 | 19500-22000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
Notes:
- Red is live, blue is null and green is ground;
- Different covers are available including tempered glass, pc and etc.;
- ErP certificate is granted by SGS as energy saving proof.
Features
- The fixture body is made of high pressure die-casting Aluminum.
- High-intensity, high temperature resistant cambered tempered glass.
- Once shaping high-purity aluminum reflector provides optimum light distribution.
- Electrostatic spray surface treatment technology.
- Match rectangular induction lamp with its excellent Color Rendering Index and light efficiency, long life span, no flicker and energy saving, wide range of color temperature and soft light ,stable light output.
Savings
Retrofit Suggestion and Estimated Savings by using Induction Hi Bay Lamp (Calculation is based on $0.28/kWh energy cost):
| Energy Saving Comparison | 10hrs/day | 16hrs/day | 24hrs/day | |
| MHL/HPS cost / month (400W) | $35.00 | $56.00 | $71.00/ | |
| SMGBL lamp cost / month (200W = above 400W) | $17.50 | $28.00 | $35.50 |
Tips:
- Save as much as LED lighting;
- Save more than 50% initial cost comparing with LED;
- Save maintenance cost by lowing the failure rate;
Application

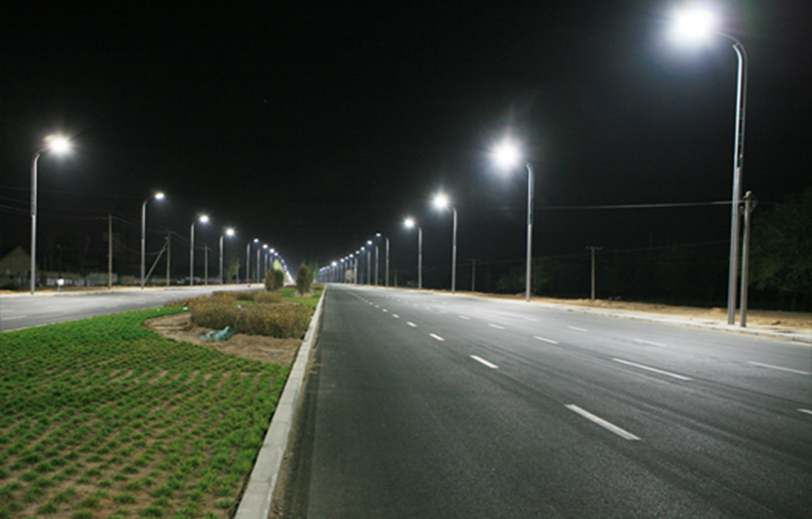

Roads, streets, highways, viaducts, bridges and other lighting area.

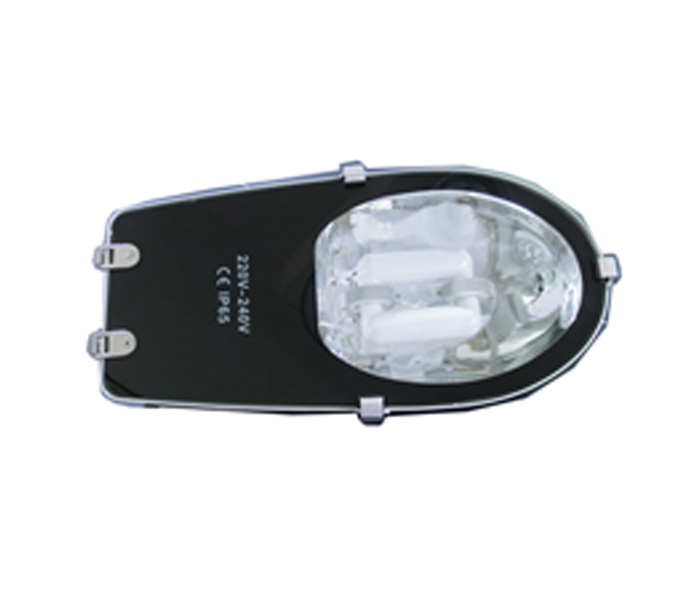

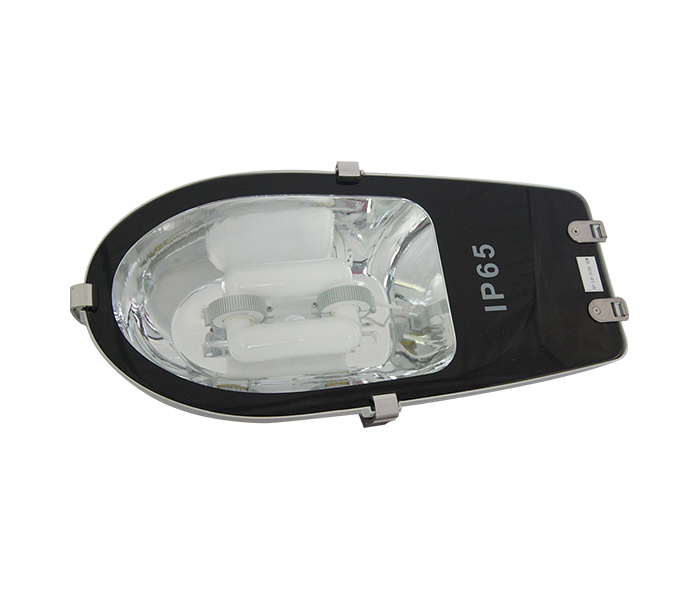

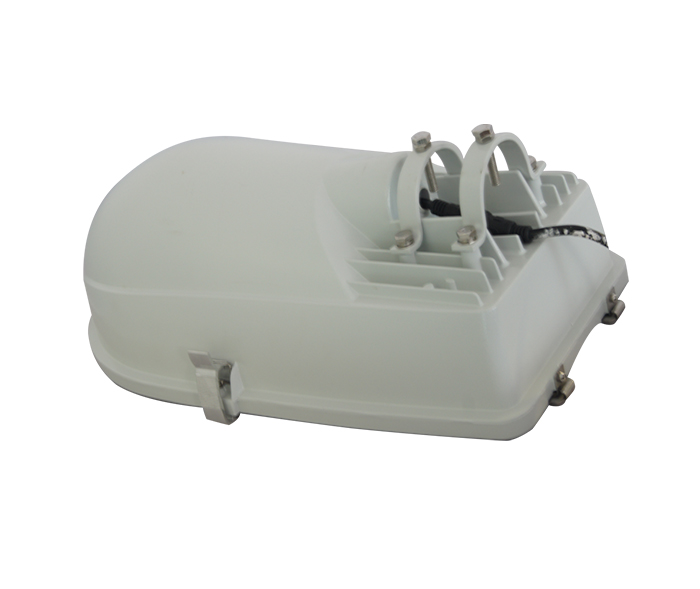

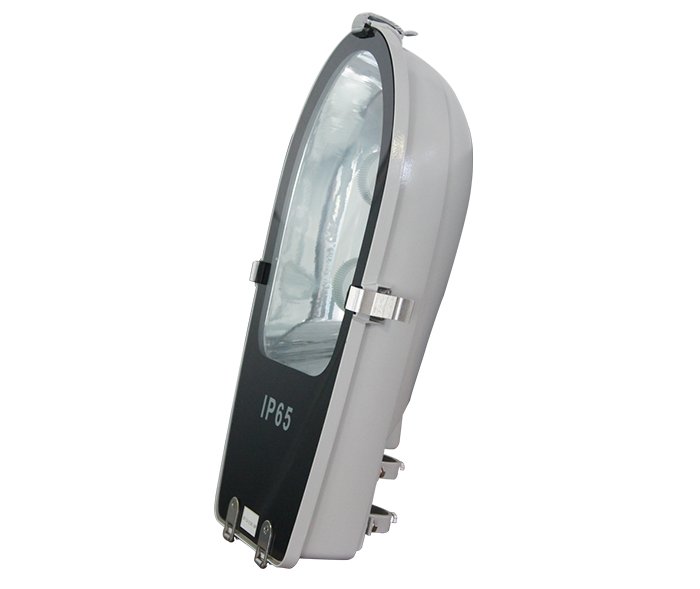

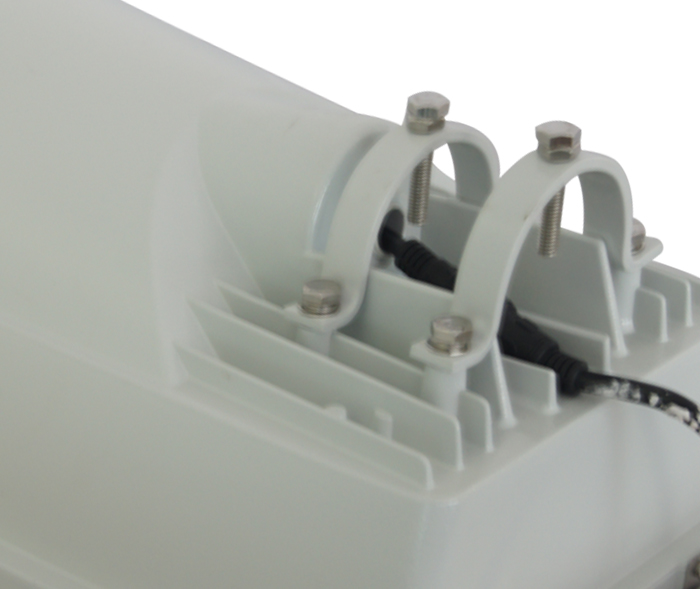

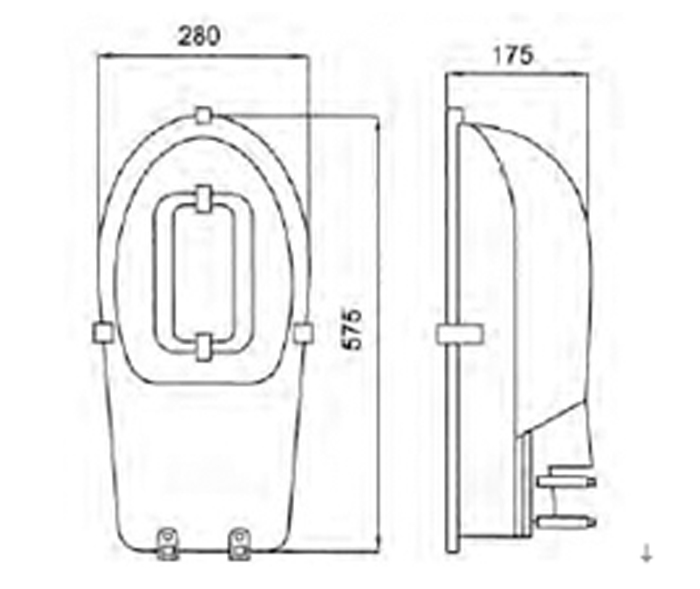

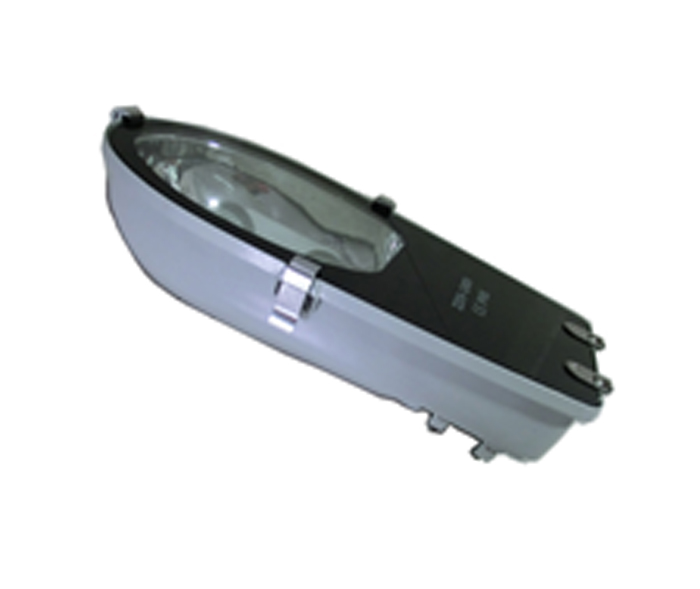

SMGBL® STREET LIGHT SMG-BL-313
Delivering Efficient Energy
Description
Model: SMG-BL-312 STREET LIGHT
Light Source:30～ 60W rectangle tube
Color Temp: 2700K ~ 6500K
Lumen Efficiency: 80-85 lm/W
Lifespan ≥ 100, 000 hrs
Warranty: 5 yrs
Lumen Maintenance: Above 80% after 80,000 hrs
IP Rate: IP65
Certification: ETL, SAA, CE, CCC, FCC, CB, C-TICK etc
Installlation Height: 4-7m
Package Size: 62*32*22CM
Specification
| Watt (W) | Power Efficiency (Im/W) | Initial Lumen (Im) | Effective Flux (Plm) | CRI (Ra) | Power Factor (PF) | Working Temperature (℉/℃) |
| 30 | 30 | 2,400 | 4200-4760 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 40 | 40 | 3,200 | 4200-4760 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 50 | 50 | 4,000 | 4200-4760 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 60 | 60 | 4,800 | 4200-4760 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
Notes:
- Red is live, blue is null and green is ground;
- Different covers are available including tempered glass, pc and etc.;
- ErP certificate is granted by SGS as energy saving proof.
Features
- The fixture body is made of high pressure die-casting Aluminum.
- High-intensity, high temperature resistant cambered tempered glass.
- Once shaping high-purity aluminum reflector provides optimum light distribution.
- Electrostatic spray surface treatment technology.
- Match rectangular induction lamp with its excellent Color Rendering Index and light efficiency, long life span, no flicker and energy saving, wide range of color temperature and soft light ,stable light output.
Comparision with CFL
Low-frequency induction lamps comare with fluorescent lamps
| Features | Inductioin Lamps | Fluorescent Lamps |
| Warranty | 5 | None |
| Lamp span | 100,000 hrs | 8000-12 000hrs |
| Luminous efficacy | Upto 150 lm/w | 70 lm/w |
| Brightness deterioration | < 5% after 2000 hrs | > 30% aftere 2000 hrs |
| Light flicker | None | Can see visible flicker |
| Light glare | None | Can see glare |
| Energy saving effectiveness | Superior | Not very good |
| Environmental concerns | Not mercury and other waste disposal oncern | Mercury pollution and other concerns with waste disposal |
Tips:
- Save as much as LED lighting;
- Save more than 50% initial cost comparing with MHL/HPS
- Save maintenance cost by lowing the failure rate;
Application
Roads, streets, highways, viaducts, bridges and other lighting area.
