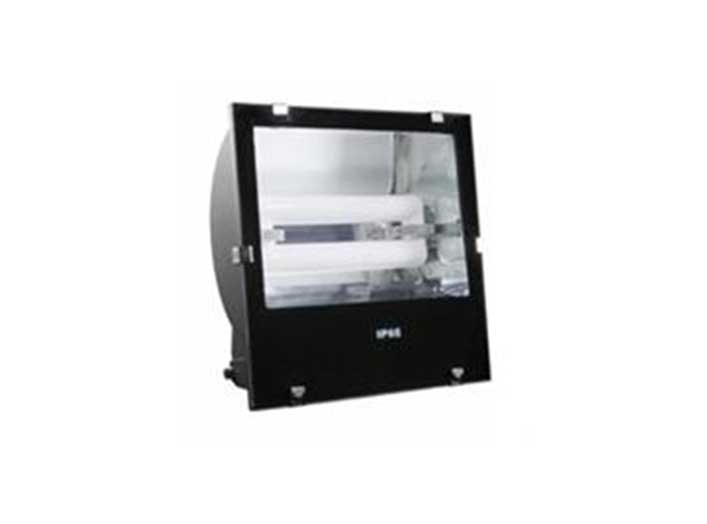

SMGBL® FLOOD LIGHT SMG-BL-501
Delivering Efficient Energy
Description

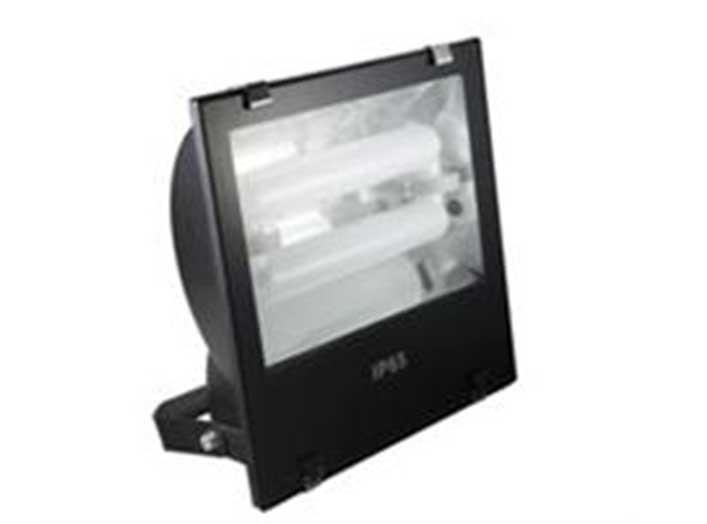

Model:SMG-BL-501 FLOOD LIGHT
Light Source:80 ～ 250W circular tube
Color Temp: 2700K ~ 6500K
Lumen Efficiency: 80-85 lm/W
Lifespan ≥ 100, 000 hrs
Warranty: 5 yrs
Lumen Maintenance: Above 80% after 80,000 hrs
IP Rate: IP65
Certification: ETL, PSB, TUV, FCC, CB, CE, SAA
Shell Material: Die-casting aluminum
Dimension: 430*430*140MM(80W-120W)

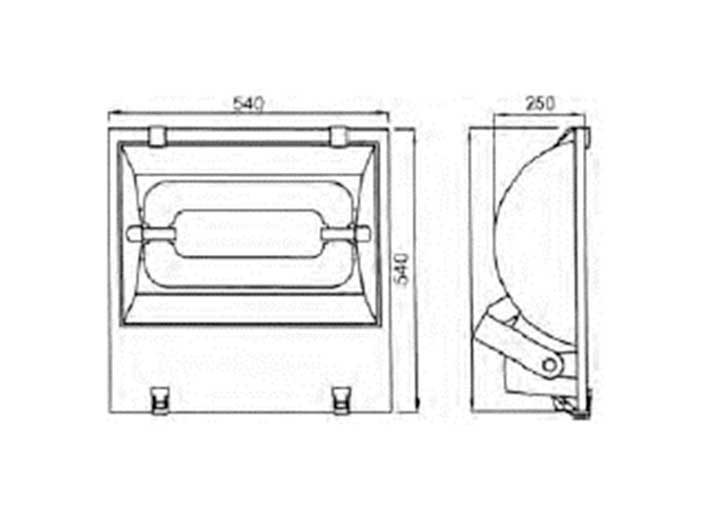

540*540*250MM (120W-300W)
Package Size: 47*47*28CM
60.5*60.5*30CM
Specification
| Watt (W) | Power Efficiency (Im/W) | Initial Lumen (Im) | Effective Flux (Plm) | CRI (Ra) | Power Factor (PF) | Working Temperature (℉/℃) |
| 80 | 80 | 6,400 | 9600-11000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 120 | 85 | 10,000 | 15500-18000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 150 | 85 | 12,500 | 19500-22000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 200 | 85 | 17,000 | 28000-30000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 250 | 85 | 21,500 | 37000-38000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
Notes:
- Red is live, blue is null and green is ground;
- IP65 rating protection with underwater test before shipment;
- Perfect performance under tough environments like sea shore.
Features
- Impacting resistant extrusion aluminum body.
- Static spraying surface treatment technology, and high temperature resistant and good weather resistant performance, beautiful and durable.
- Imported mirror surface aluminum reflector, high reflectivity ensures the high output of luminous flux.
- The luminaire can be opened on two sides, easy for installation.
- High intensity glass, high light transmission and impacting resistant.
- New type silicon rubber sealing ring ensure the aging resistant of silicon rubber.
- Match Rectangular-series lamp.
Savings
Retrofit Suggestion and Estimated Savings by using Induction Hi Bay Lamp(Calculation is based on $0.28/kWh energy cost):
| Energy Saving Comparison | 10hrs/day | 16hrs/day | 24hrs/day | |
| MHL/HPS cost / month (400W) | $35.00 | $56.00 | $71.00/ | |
| SMGBL lamp cost / month (200W = above 400W) | $17.50 | $28.00 | $35.50 |
Tips:
- Save as much as LED lighting;
- Save more than 50% initial cost comparing with LED;
- Save maintenance cost by lowing the failure rate;

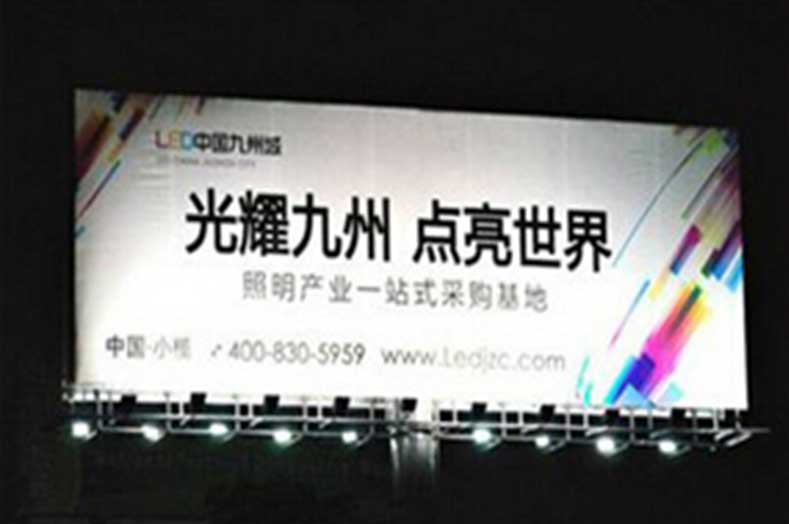

Application

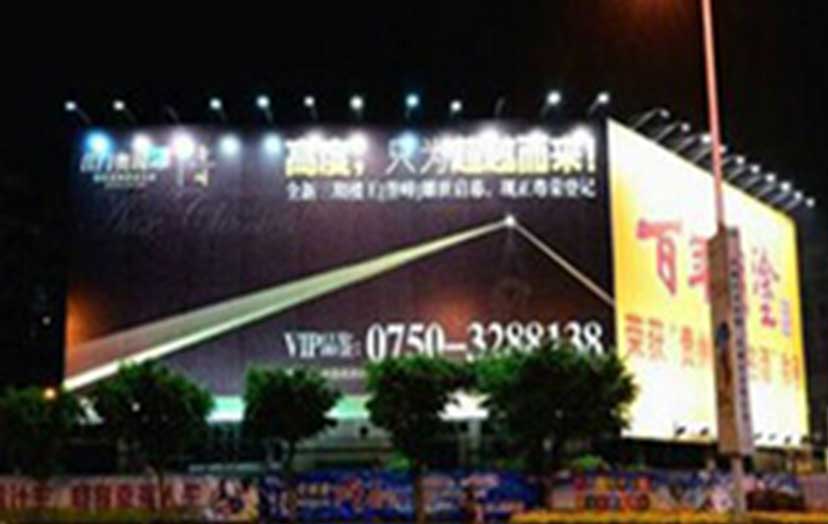

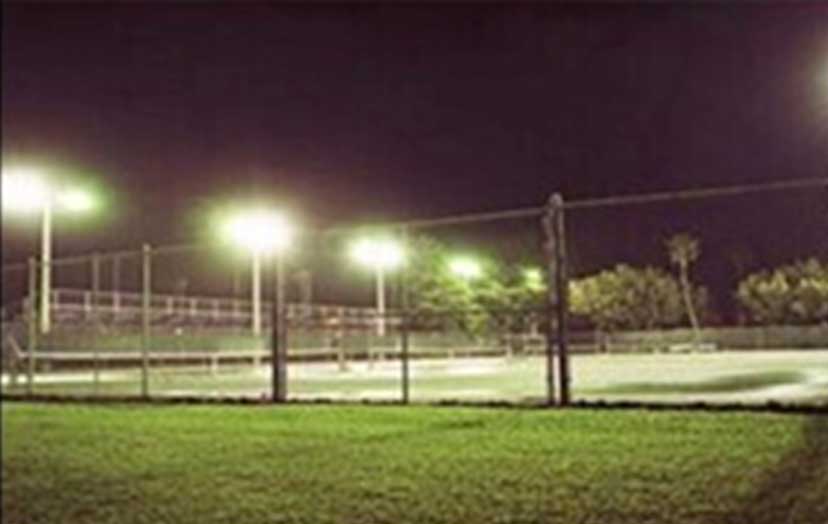

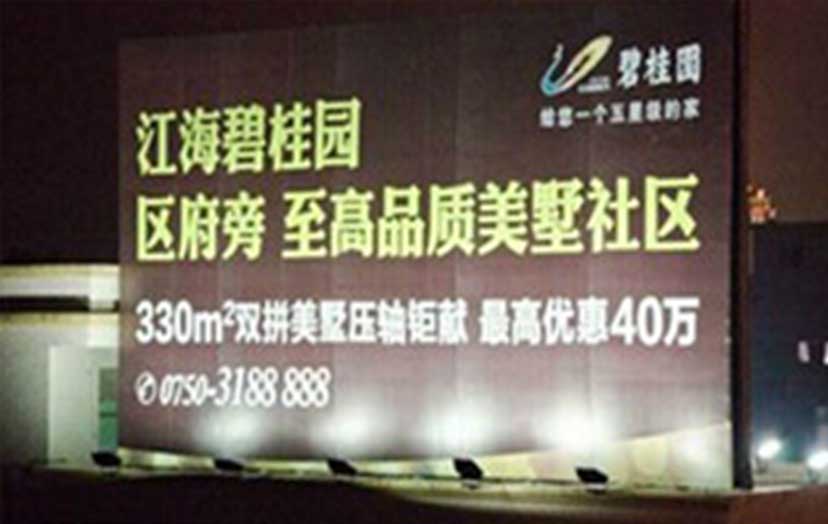

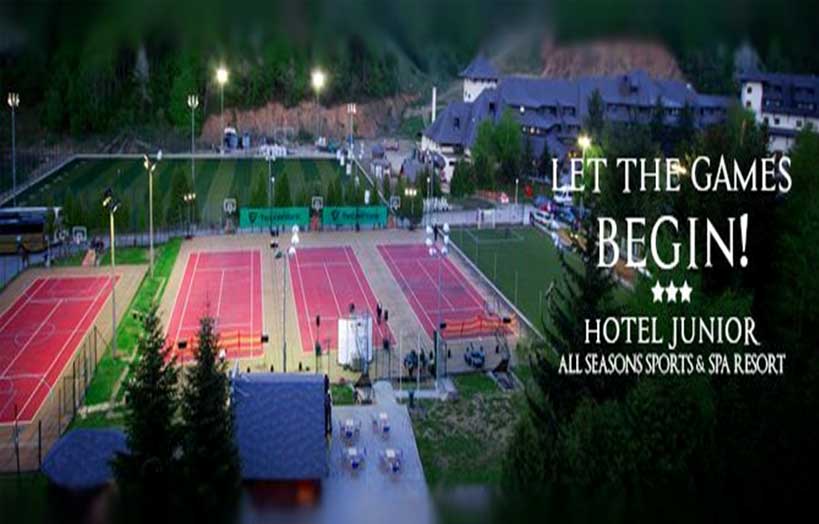

Stations, ports, plazas, construction site and so on.

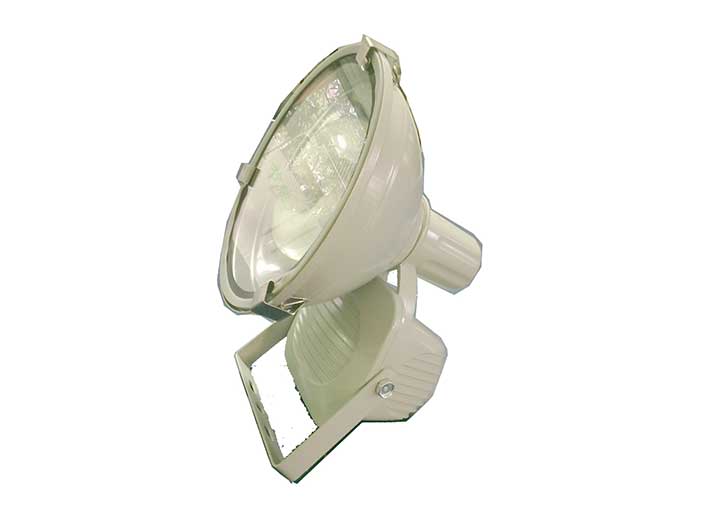

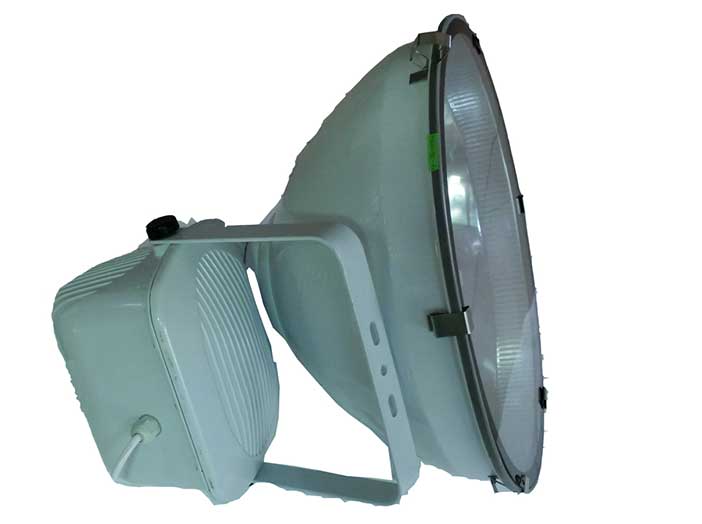

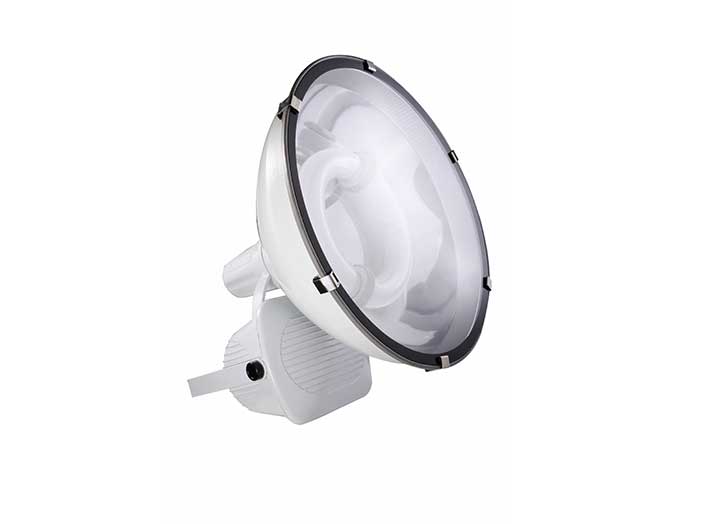

SMGBL® FLOOD LIGHT SMG-BL-531
Delivering Efficient Energy
Description

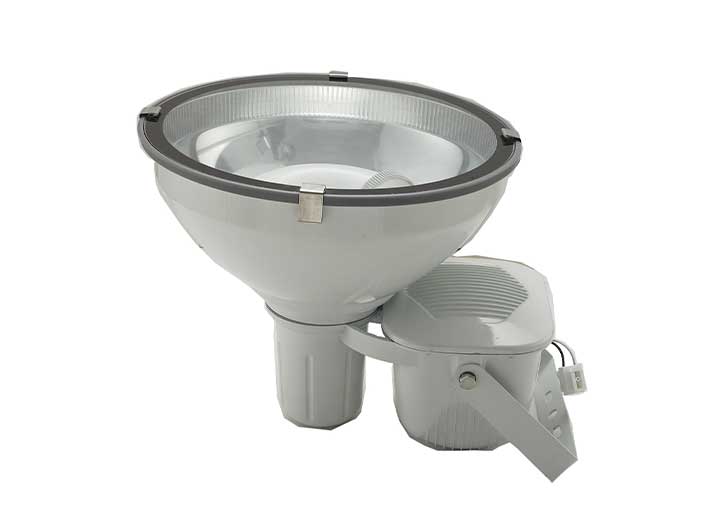

Model:SMG-BL-531 FLOOD LIGHT
Light Source:40 ～ 60W；80-150W, 150-300W circular tube
Color Temp: 2700K ~ 6500K
Lumen Efficiency: 85 lm/W
Lifespan ≥ 100, 000 hrs
Warranty: 5 yrs
Lumen Maintenance: Above 80% after 80,000 hrs
IP Rate: IP65
Certification: ETL,PSB, TUV, FCC, CB, CE, SAA
Shell Material: Die-casting aluminum
Dimension: 510*410*145MM(80W-120W)
510*480*145MM(120W-250W)
Net Weight: 6.7KG; 10.91 kg
Specification
| Watt (W) | Power Efficiency (Im/W) | Initial Lumen (Im) | Effective Flux (Plm) | CRI (Ra) | Power Factor (PF) | Working Temperature (℉/℃) |
| 40 | 70 | 2,800 | 4200-4760 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 60 | 75 | 4,500 | 6750-7650 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 80 | 80 | 6,400 | 9600-11000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 120 | 85 | 10,000 | 15500-18000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 150 | 85 | 12,500 | 19500-22000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 200 | 85 | 17,000 | 28000-30000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 250 | 85 | 21,000 | 37000-38000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 300 | 85 | 25,000 | 43000-44000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
Notes:
- Red is live, blue is null and green is ground;
- IP65 rating protection with underwater test before shipment;
- Perfect performance under tough environments like sea shore.
Features
- No burning, sediment or decay problems with high quality phosphor.
- 50% saving on lighting energy cost.
- Lower ownership cost / initial cost.
- No Glare or flicker, comfortable and healthy light distribution.
- Electronical components are installed in the gear box, all in one design.
- Die-casting aluminum fixture with spray surface finish.
- Tempered glass cover with perfect light transmittance.
- Polished aluminum reflector with adjustable optical beam angle.
Savings
Retrofit Suggestion and Estimated Savings by using Induction Hi Bay Lamp(Calculation is based on $0.28/kWh energy cost):
| Energy Saving Comparison | 10hrs/day | 16hrs/day | 24hrs/day | |
| MHL/HPS cost / month (400W) | $35.00 | $56.00 | $71.00/ | |
| SMGBL lamp cost / month (200W = above 400W) | $17.50 | $28.00 | $35.50 |
Tips:
- Save as much as LED lighting;
- Save more than 50% initial cost comparing with LED;
- Save maintenance cost by lowing the failure rate;

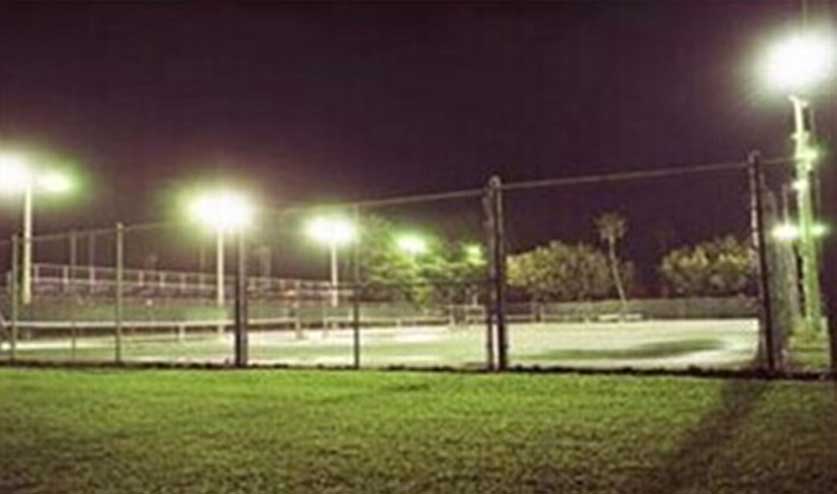

Application

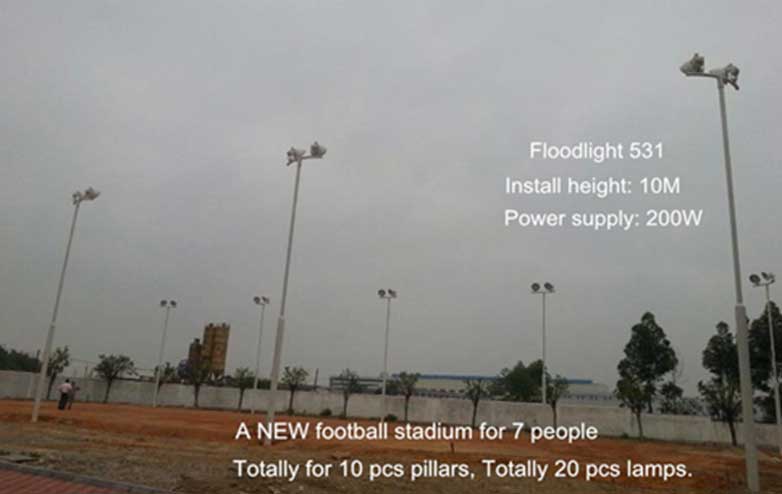

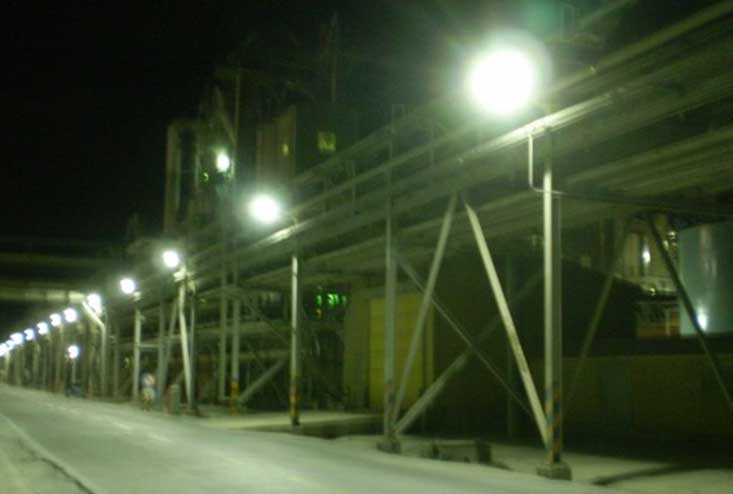

Stations, ports, plazas, construction site and so on.

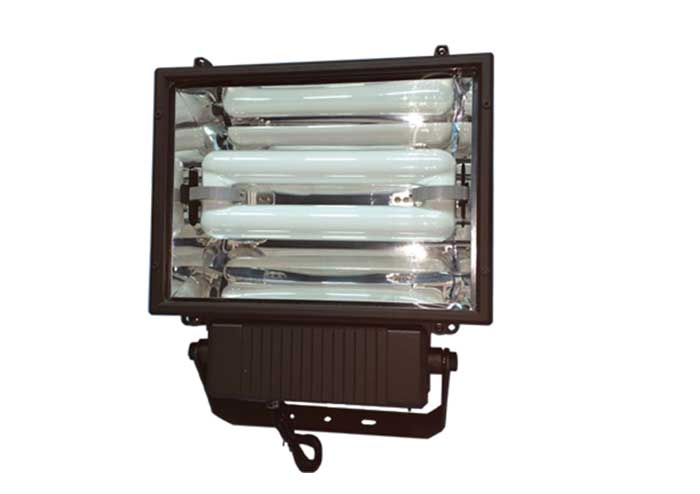

SMGBL® FLOOD LIGHT SMG-BL-590
Delivering Efficient Energy
Description

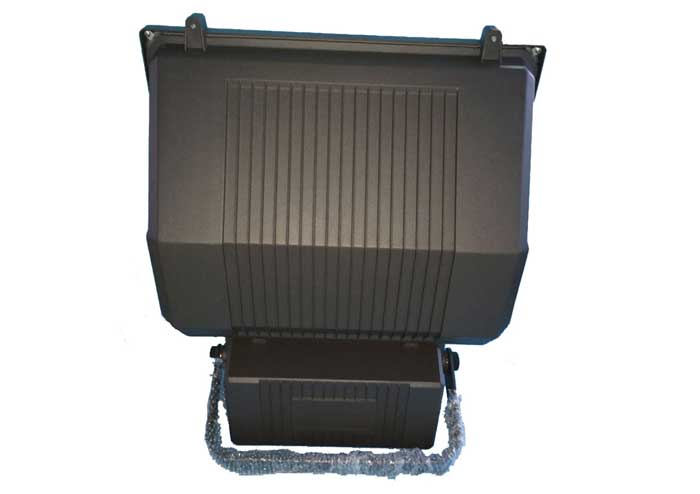

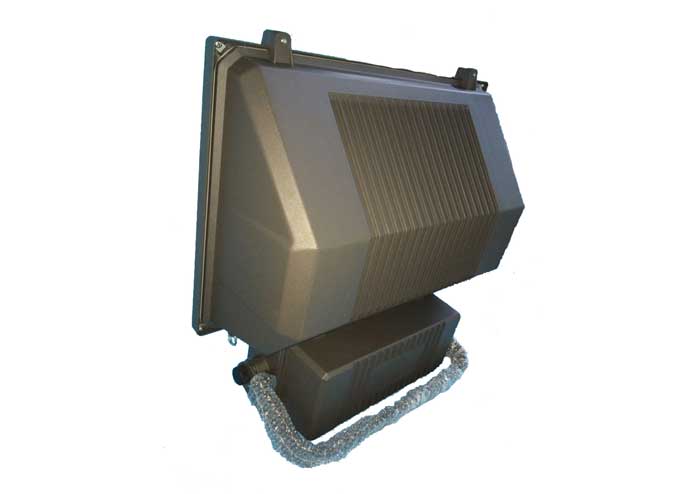

Model:SMG-BL-590 FLOOD LIGHT
Light Source:80 ～ 250W circular tube
Color Temp: 2700K ~ 6500K
Lumen Efficiency: 85 lm/W
Lifespan ≥ 100, 000 hrs
Warranty: 5 yrs
Lumen Maintenance: Above 80% after 80,000 hrs
IP Rate: IP65
Certification: ETL, PSB, TUV, FCC, CB, CE, SAA
Shell Material: Die-casting aluminum
Net Weight: 10.91 kg

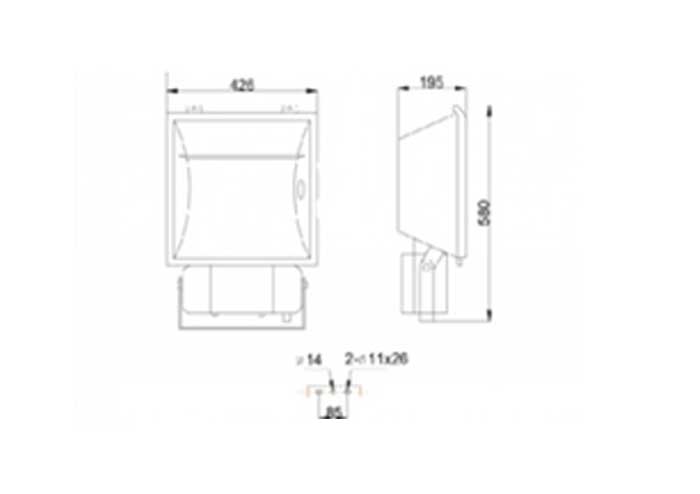

Dimension: 580*426*195mm
Package Size: 62*55*28CM
Specification
| Watt (W) | Power Efficiency (Im/W) | Initial Lumen (Im) | Effective Flux (Plm) | CRI (Ra) | Power Factor (PF) | Working Temperature (℉/℃) |
| 80 | 80 | 6,400 | 9600-11000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 120 | 85 | 10,000 | 15500-18000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 150 | 85 | 12,500 | 19500-22000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 200 | 85 | 17,000 | 28000-30000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 250 | 85 | 21,500 | 37000-38000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
Notes:
- Red is live, blue is null and green is ground;
- IP65 rating protection with underwater test before shipment;
- Perfect performance under tough environments like sea shore.
Features
- No burning, sediment or decay problems with high quality phosphor.
- 50% saving on lighting energy cost.
- Lower ownership cost / initial cost.
- No Glare or flicker, comfortable and healthy light distribution.
- Electronical components are installed in the gear box, all in one design.
- Die-casting aluminum fixture with spray surface finish.
- Tempered glass cover with perfect light transmittance.
- Polished aluminum reflector with adjustable optical beam angle.
Savings
Retrofit Suggestion and Estimated Savings by using Induction Hi Bay Lamp(Calculation is based on $0.28/kWh energy cost):
| Energy Saving Comparison | 10hrs/day | 16hrs/day | 24hrs/day | |
| MHL/HPS cost / month (400W) | $35.00 | $56.00 | $71.00/ | |
| SMGBL lamp cost / month (200W = above 400W) | $17.50 | $28.00 | $35.50 |
Tips:
- Save as much as LED lighting;
- Save more than 50% initial cost comparing with LED;
- Save maintenance cost by lowing the failure rate;
Application
Stations, ports, plazas, construction site and so on.

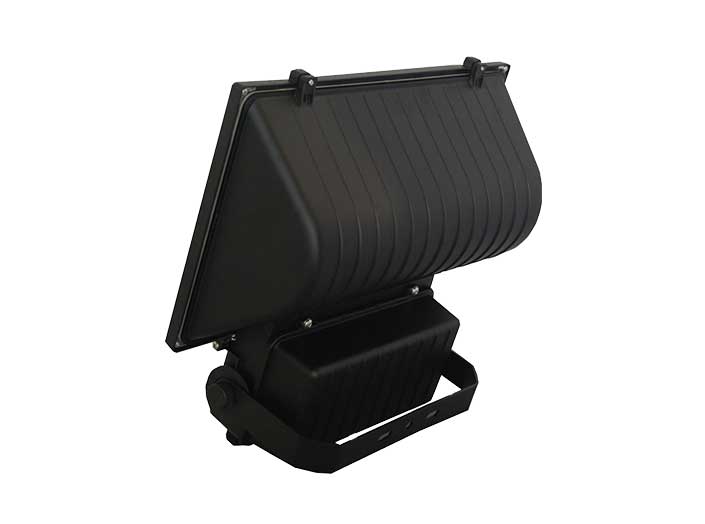

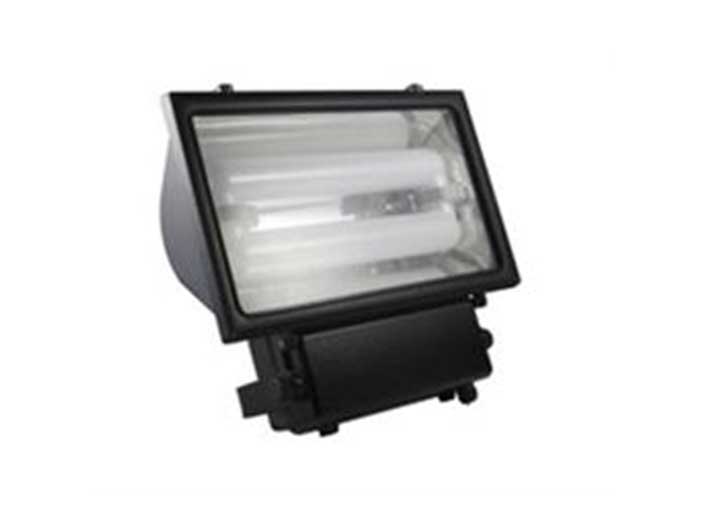

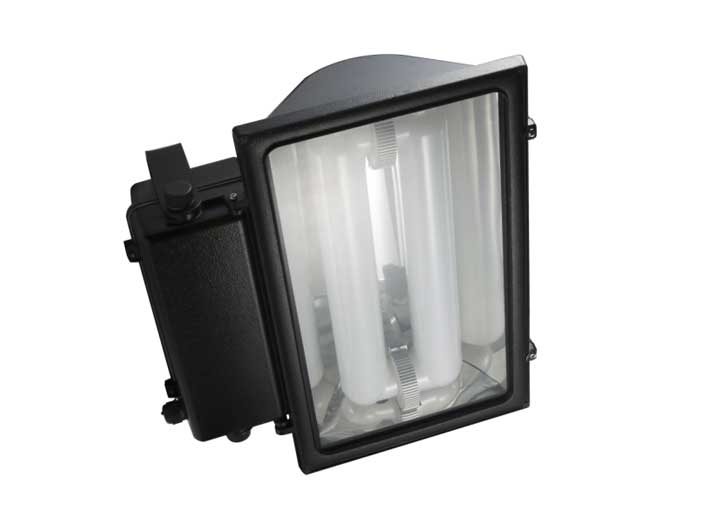

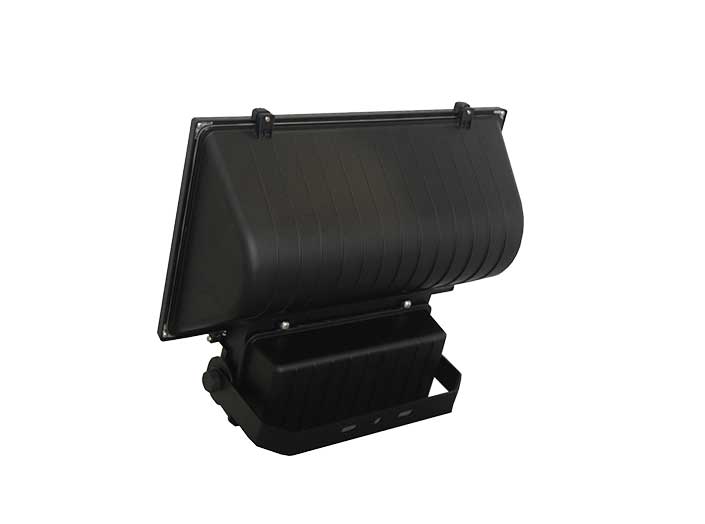

SMGBL® FLOOD LIGHT SMG-BL-503
Delivering Efficient Energy
Description
Model:SMG-BL-503 FLOOD LIGHT
Light Source:80 ～ 250W circular tube
Color Temp: 2700K ~ 6500K
Lumen Efficiency: 80-85 lm/W
Lifespan ≥ 100, 000 hrs
Warranty: 5 yrs
Lumen Maintenance: Above 80% after 80,000 hrs
IP Rate: IP65
Certification: ETL, SAA, CE, CCC, FCC, CB, C-TICK etc
Shell Material: Die-casting aluminum

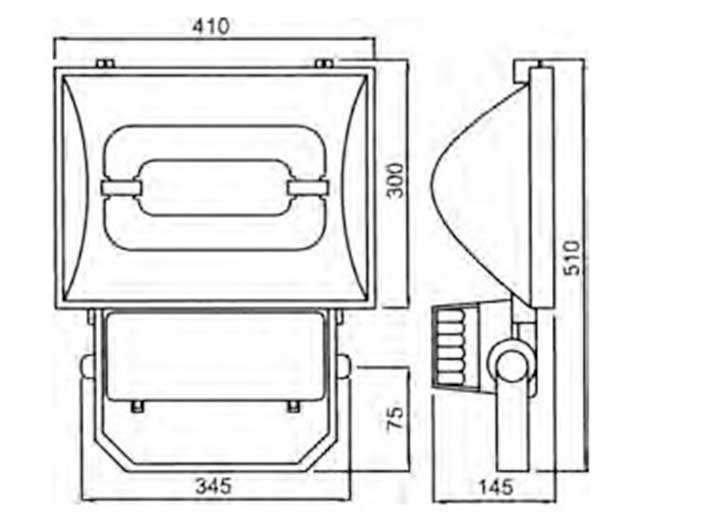

Dimension: 510*410*145MM(80W-120W)
510*480*145MM(120W-250W)
Package Size: 55*45*18CM
55*52*18CM
Specification
| Watt (W) | Power Efficiency (Im/W) | Initial Lumen (Im) | Effective Flux (Plm) | CRI (Ra) | Power Factor (PF) | Working Temperature (℉/℃) |
| 80 | 80 | 6,400 | 9600-11000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 120 | 85 | 10,000 | 15500-18000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 150 | 85 | 12,500 | 19500-22000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 200 | 85 | 17,000 | 28000-30000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
| 250 | 85 | 21,500 | 37000-38000 | >80 | >0.99 | -13~122 ℉/-25~50℃ |
Notes:
- Red is live, blue is null and green is ground;
- IP65 rating protection with underwater test before shipment;
- Perfect performance under tough environments like sea shore.
Features
- Impacting resistant extrusion aluminum body.
- Static spraying surface treatment technology, and high temperature resistant and good weather resistant performance, beautiful and durable.
- Imported mirror surface aluminum reflector, high reflectivity ensures the high output of luminous flux.
- The luminaire can be opened on two sides, easy for installation.
- High intensity glass, high light transmission and impacting resistant.
- New type silicon rubber sealing ring ensure the aging resistant of silicon rubber.
- Match Rectangular-series lamp.
Savings
Retrofit Suggestion and Estimated Savings by using Induction Hi Bay Lamp(Calculation is based on $0.28/kWh energy cost):
| Energy Saving Comparison | 10hrs/day | 16hrs/day | 24hrs/day | |
| MHL/HPS cost / month (400W) | $35.00 | $56.00 | $71.00/ | |
| SMGBL lamp cost / month (200W = above 400W) | $17.50 | $28.00 | $35.50 |
Tips:
- Save as much as LED lighting;
- Save more than 50% initial cost comparing with LED;
- Save maintenance cost by lowing the failure rate;

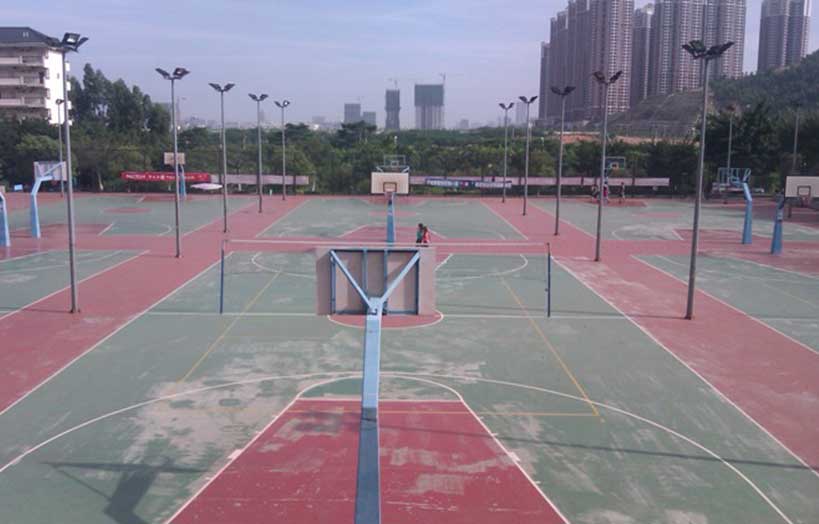

Application
Stations, ports, plazas, construction site and so on.
